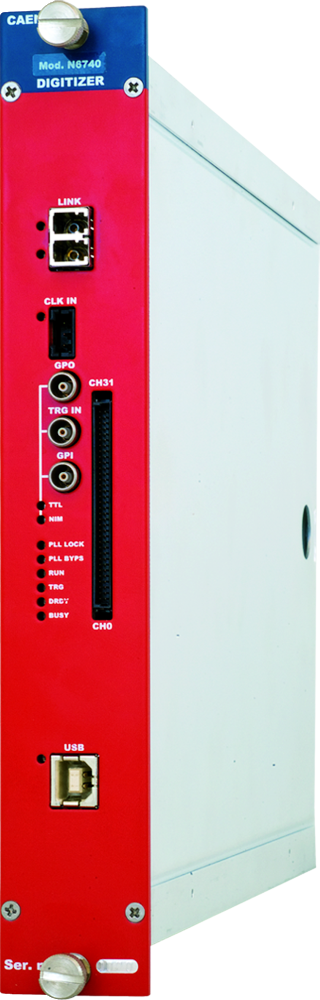

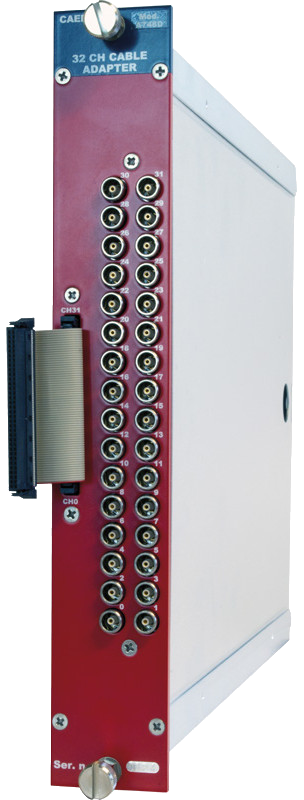

The N6740D is a 32ch 12 bit 62.5 MS/s (65 MS/s using external clock) NIM Waveform Digitizer with 2 Vpp single ended input dynamics on a ERNI SMC connector. 32 channels can be available on LEMO connectors using the A746D adapter.
The DC offset adjustment (range ±1 V) by a programmable 16bit DACs (one for each 8-channel group) allows a right sampling of a bipolar (Vin = ±1 V) up to a full positive (Vin = 0 ÷ +2 V) or negative (Vin= 0 ÷ -2 V) analog input swing without losing dynamic resolution.
The module features a front panel Clock Input and a PLL for clock synthesis from internal/external references. The data stream is continuously written in a circular memory buffer. When the trigger occurs, the FPGA writes further N samples for the post trigger and freezes the buffer that can be read by USB or Optical Link. The acquisition can continue without dead time in a new buffer.
Each channel has a SRAM Multi-Event Buffer of 192 kS divisible into 1 ÷ 1024 buffers of programmable size. The readout (by USB or Optical Link) of a frozen buffer is independent from the write operations in the active circular buffer (ADC data storage).
N6740D supports multi-board synchronization allowing all ADCs to be synchronized to a common clock source and ensuring Trigger time stamps alignment. Once synchronized, all data will be aligned and coherent across multiple N6740 boards.
The trigger signal can be provided externally via the front panel Trigger Input as well as via the software, but it can also be generated internally thanks to threshold self-trigger capability.
N6740D houses USB 2.0 and Optical Link interfaces. USB 2.0 allows data transfers up to 30 MB/s. The Optical Link supports transfer rate of 80 MB/s and offers Daisy chain capability. Therefore, it is possible to connect up to 8/32 ADC modules to a single Optical Link Controller (Mod. A2818).
Software available (Windows and Linux):
CAEN provides drivers for all the different types of physical communication channels, a set of C and LabView libraries (CAENComm and CAENDigitizer), demo applications and utilities:
CAENUpgrader: tool that allows the user to update the firmware of the digitizers, change the PLL settings, load, when requested, the license for the pay firmware and other utilities.
Standard Firmware compliant:
CAEN WaveDump: software console application that can be used to configure and readout event data from any model of the CAEN digitizer family and save the data into a memory buffer allocated for this purpose.
Digital Pulse Processing firmware for Physics Applications – this special firmware allows to perform on-line processing on detector signal directly digitizer:
DPP-QDC Pulse Processing for Charge to Digital Converter DT5740D digitizer running DPP-QDC firmware becomes a digital replacement of Single Gate QDC plus Discriminator and Gate Generator.
CoMPASS Multiparametric Acquisition Software.
12 bit 62.5 MS/s ADC
32 channels (16 channels on LEMO connectors using A746D adapter)
ERNI SMC Dual Row 68 pin connector (32 channels)
2 Vpp single ended input range
16-bit programmable DC offset adjustment: ±1 V
Trigger Time stamps
Memory buffer: 192 kS/ch, up to 1024 events
FPGA for real-time data processing:
Programmable event size and pre-post trigger adjustment
Optical Link interface (CAEN proprietary protocol)
USB2.0 interface
Firmware upgradeable via USB/Optical Link
Libraries, Demos (C and LabView) and Software tools for Windows and Linux
