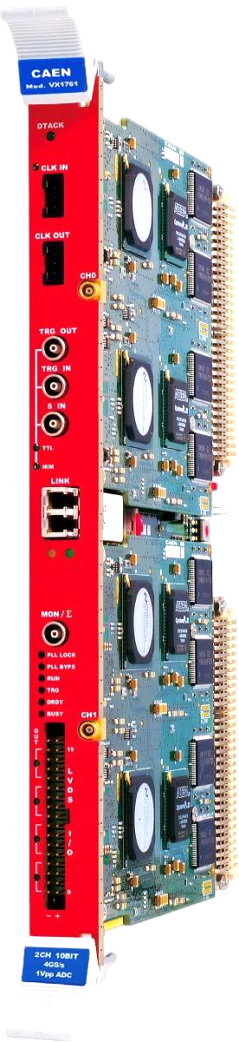

VX1761

The CAEN Mod.VX1761 is the CAEN Waveform Digitizer with the highest sampling rate Flash ADC (10 bit @ 4GS/s).

It can record fast signals from fast organic, inorganic and liquid scintillators coupled to PMTs or Silicon Photomultipliers, Diamond detectors and others, and save them with high efficiency and precision for offline advanced timing analysis. The acquisition can be externally vetoed/gated. Multiple boards can be synchronized to build up complex systems.

The data stream is written in a circular memory buffer with independent read/write access, which reduces the dead-time of the acquisition process. The acquisition is fully controlled by CAEN WaveDump software, which manages the settings, plots and saves the waveforms. Libraries and demo software in C and LabView are available for integration and customization of specific acquisition systems.

The VX1761 comes in a VME64X form factor with 2 input channels. The communication to and from the board is provided through VMEBus and Optical Link interfaces.

The VX1761 fits in the single-slot CAEN VME64X u-crate, which allows you to convert the VME digitizer into a desktop board for lab tests.
