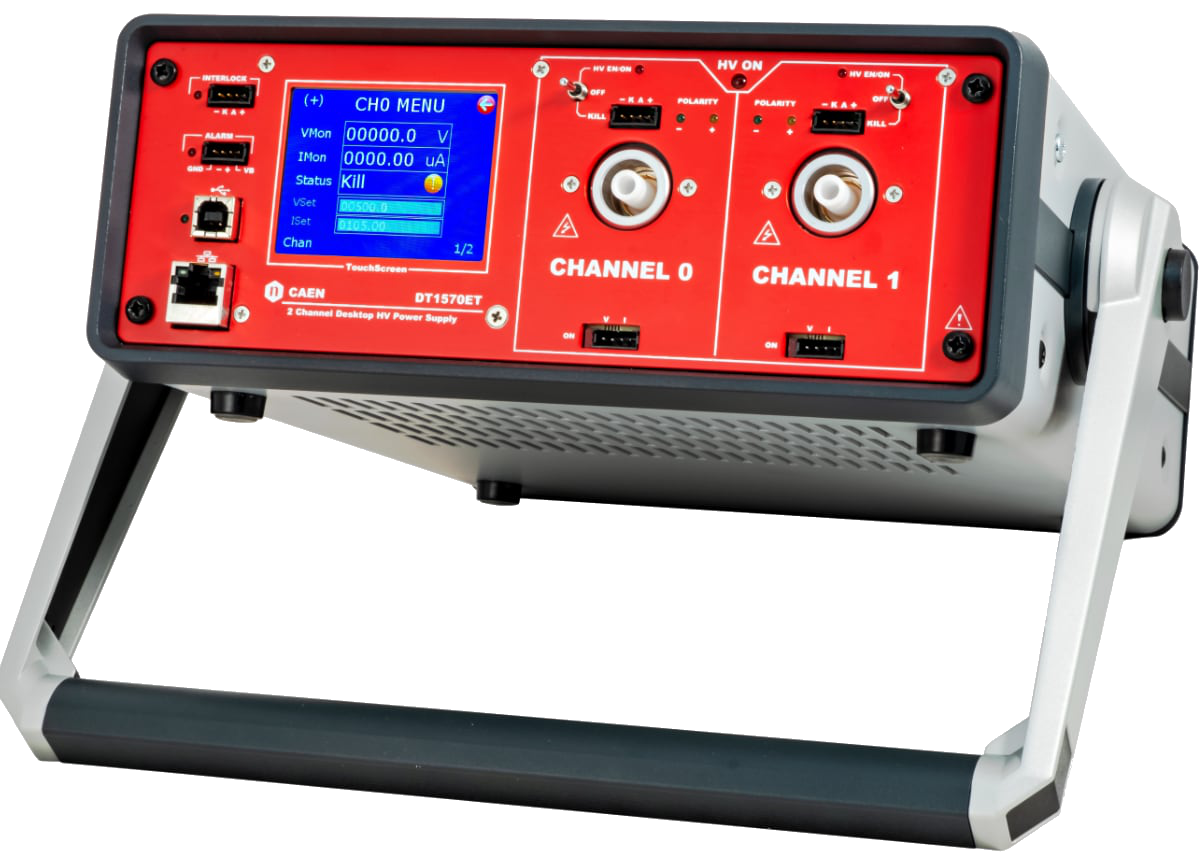

2 Channel 15 kV/1 mA (10 W) Desktop HV Power Supply Module
DT1570ET
The CAEN Mod. DT1570ET provides 2 independent High Voltage channels in a desktop package (110/220V AC Powered). Each channel can provide a ± 15 kV max voltage, 1 mA max current and a 10 W max power.
The output polarity is independently selectable for each channel.
|
Uno |
| |
Tre |
|
Ecco |
| |
Prova |
|
Della |
| |
Sul PIM |
|
Uno |
Due |
Tre |
|
Ecco |
La |
Prova |
|
Della |
Tabella |
Sul PIM |
|
Uno |
due |
|
Uno sotto |
Due sotto |
|
Uno |
due |
|
Uno sotto |
Due sotto |
|
Uno |
due |
|
Uno sotto |
Due sotto |
|
Uno |
due |
|
Uno sotto |
Due sotto |
|
Uno |
due |
|
Uno sotto |
Due sotto |
Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through Lemo HV connectors. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps.
|
LEMO HV connector 2 channels for Mod. DT1570 |
Consult our connectors reference page for technical information.
The module features 20 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 2 nA. Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
Overvoltage and Undervoltage warning when the output voltage differs from the programmed value by more than 2% of set value. |
|
Overvoltage and Undervoltage warning |
When the output voltage differs from the programmed value (±0.5% of the set value, ±3 V). |
|
Overcurrent detection |
If a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
Hardware VMAX |
Programmable VMAX protection limit. |
|
Safety Board Interlock |
Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Features
-
2 independent channels in a Desktop case (110/220V AC Powered)
-
15 kV / 1mA output range
-
Max channel power: 10W (<10kV) or 7W (>10kV)
-
Channels with individually selectable positive or negative polarity
-
LEMO HV coaxial output connectors
-
Common floating return
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA)
-
2.8″ color touch screen display
-
Local and Remote control (USB2.0/Ethernet)
-
Daisy-chain capability
-
Software Tools for easy channel management
