Up to 15 kV Reversible Polarity

DT14xxET and DT1570 are CAEN Power Supplies providing 2 or 4 independent High Voltage channels in a Desktop form factor. Each channel features an independently selectable polarity and common floating return (common return insulated from the chassis ground). High Voltage outputs are delivered through SHV connectors on DT14xxET models and through LEMO HV on DT1570. All units can be controlled either locally thanks to a 2.8” touchscreen color LCD display with a complete user interface, or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software. EPICS and LabVIEW are supported. Different versions are available spanning from 500 V to 15 kV and from 20 µA to 3 mA, meeting the needs of a wide range of applications. Each unit is provided with Imon Zoom. This feature enhances the current monitoring, increasing the resolution of a x10 or x20 factor according to the specific model. The HV output Ramp-Up and Ramp-Down rates can be set independently for each channel in the range 1 ÷ 500 V/s in 1 V/s steps (1 ÷ 50 V/s for DT1419ET).

Features

2 or 4 independent HV channels in a fully Desktop form factor
Channel polarity independently selectable
SHV coaxial output connectors
Common floating return
Very Low Ripple
Under/overvoltage alert, overcurrent and max. voltage protection
2.8’’ color touch screen display
Local and Remote control (USB 2.0/Ethernet)
Interlock logic for unit enable and individual channel kill

2/4 Channel up to 15 kV Reversible polarity Family with USB, Ethernet & Touchscreen Models

DT1419ET

DT1419ET

4 independent channels in a Desktop case (110/220V AC Powered)
500 V / 200µA output range
Channels with individually selectable positive or negative polarity
SHV coaxial output connectors
Common floating return
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Daisy-chain capabilty
Software Tools for easy channel management

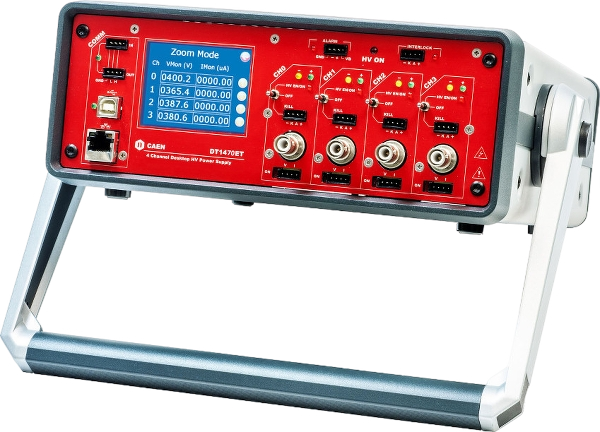

DT1470ET

DT1470ET

4 independent channels in a Desktop case (110/220V AC Powered)
8 kV / 3mA output range
Max output power:
- 9 W (< 3 kV output)
- 8 W (> 3 kV output)
Channels with individually selectable positive or negative polarity
SHV coaxial output connectors
Common floating return
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Daisy-chain capability
Software Tools for easy channel management

DT1471ET

DT1471ET

4 independent channels in a Desktop case (110/220V AC Powered)
5.5 kV / 300 µA output range
Channels with individually selectable positive or negative polarity
SHV coaxial output connectors
Common floating return
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Daisy-chain capability
Software Tools for easy channel management

DT1471HET

DT1471HET

4 independent channels in a Desktop case (110/220V AC Powered)
5.5 kV / 20µA output ranges
Channels with individually selectable positive or negative polarity
SHV coaxial output connectors
Common floating return
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
1 nA Current monitor resolution (with x20 Imon-Zoom: 50 pA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Daisy-chain capability
Software Tools for easy channel management

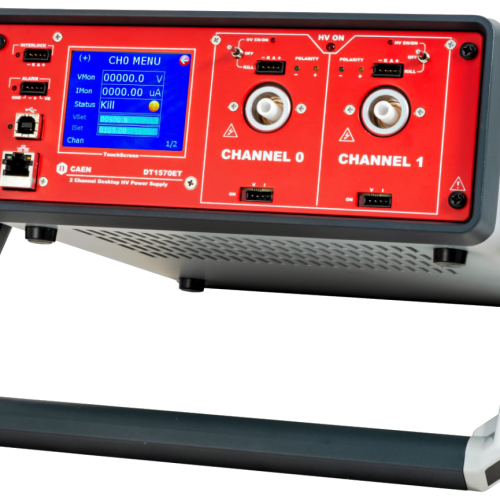

DT1570ET

DT1570ET

2 independent channels in a Desktop case (110/220V AC Powered)
15 kV / 1mA output range
Max channel power: 10W (<10kV) or 7W (>10kV)
Channels with individually selectable positive or negative polarity
LEMO HV coaxial output connectors
Common floating return
Low Ripple
Under/over-voltage alert, overcurrent and max. voltage protection
Interlock logic for board enable and Individual channel kill
20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA)
2.8″ color touch screen display
Local and Remote control (USB2.0/Ethernet)
Daisy-chain capability
Software Tools for easy channel management

Software Tools available (free download)

CAEN LabVIEW	It is a set of VIs developed to configure and monitor all the parameters of remotely controlled CAEN Power Supply Modules.
EPICS IOC	Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library	It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020	CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
