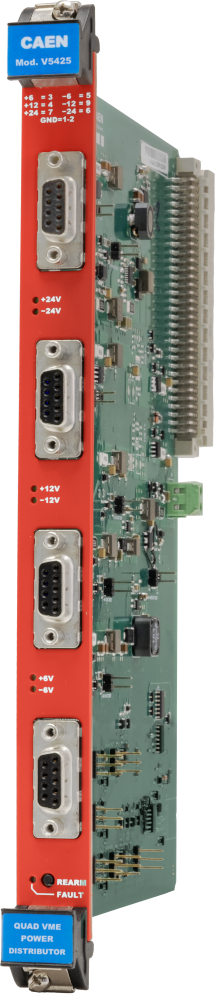

Quad VME Power Distributor
V5425
The CAEN Mod. V5425 is a 4-channel VME power distribution module; it converts the power supplies provided by a VME crate into ±6 V, ±12 V and ±24 V outputs, suitable for preamplifiers and other devices.
Output voltages are delivered through 4 Sub D9 female connectors. The total output power is 36W (24W for ±6 V and ±24 outputs).
|
D-Sub9 connector 9 pin female connector for Mod.V5425 |
Consult our connectors reference page for technical information.
Electronic fuses, automatically recovering after short circuit, protect the individual voltage outputs. All voltages are monitored and their status is displayed by LEDs.
Low-noise preamplifiers require DC power that is free of interference generated by other modules inserted in the VME crate. The mod. V5425 ensures this low-noise capability by filtering the power lines separately at each connector.
Features
-
1-unit wide VME 6U module
-
Four DB9 connectors with ±6 V, ±12 V, ±24 V each
-
Low Ripple
-
Monitoring of all 6 voltages on each output
-
Protection of all voltages by self-recovering electronical fuses
-
Individually filtered outputs to ensure low noise operation
-
Standard voltage output compatible with electronics by CAEN and many other manufacturers
