4/2 Channel 15 kV/1 mA (10 W) Rack 19' HV Power Supply
R1570ET

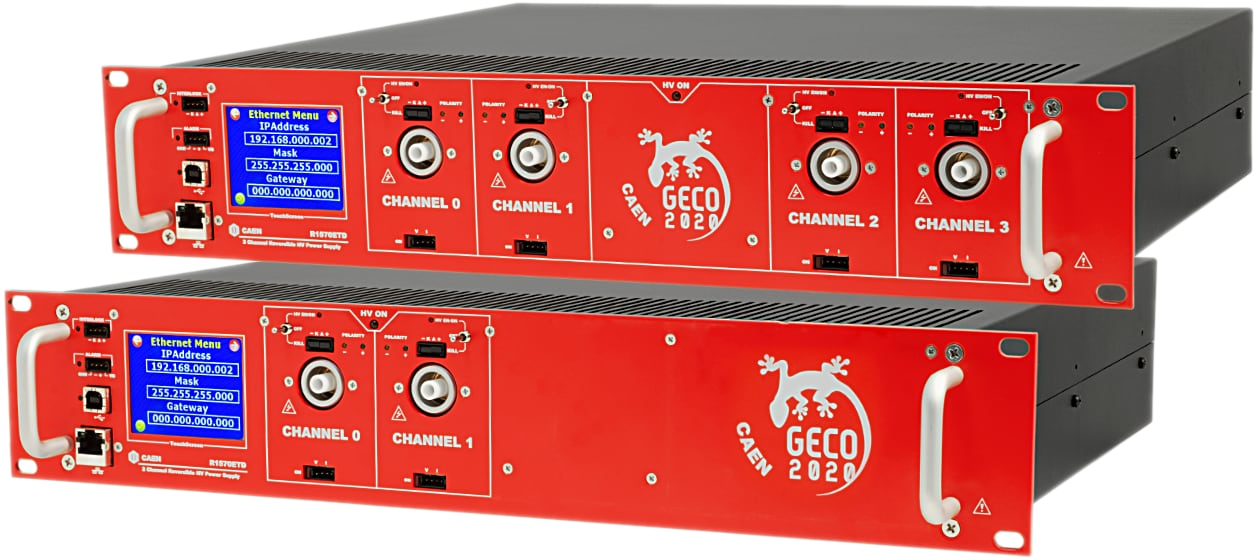

The CAEN Mod.R1570ET provides 4 or 2 (depending on version) independent High Voltage channels in a 19″ rack unit (110/220V AC Powered). Each channel can provide a ± 15 kV max voltage, 1 mA max current and a 10 W max power. The output polarity is independently selectable for each channel. Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through Lemo HV connectors.
The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps.
The module features 20 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 2 nA. Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB or Ethernet, taking advantage of the new GECO2020 Control Software.
|
HV LEMO connector 19” 2U, 2/4 channels for Mod. R1570ET |
Consult our connectors reference page for technical information.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Interlock |
Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
|
Overvoltage and Undervoltage |
warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
VMAX |
Programmable VMAX protection limit. |
Features
-
2 or 4 independent channels in a 19″ rack unit (110/220V AC Powered)
-
15 kV / 1 mA output range
-
Max channel power: 10W (<10kV) or 7W (>10kV)
-
Channels with individually selectable positive or negative polarity
-
LEMO HV coaxial output connectors
-
Common floating return
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
20 nA Current monitor resolution (with x10 Imon-Zoom: 2 nA)
-
2.8″ color touch screen display
-
Local and Remote control (USB2.0/Ethernet)
-
Daisy-chain capability
-
Software Tools for easy channel management
R1570ET: Manuals
