Input connectors: 2.54mm Male Header
-
Output connectors: Samtec ERM8-040-01-L-D-RA-TR




Input connectors: 2.54mm Male Header
Output connectors: Samtec ERM8-040-01-L-D-RA-TR


Adapts to 64 channels 2.54 mm header
Matches with all 2740/2745 digitizers form factors
Compliant to both single-ended and differential 2740/2745 models

Adapts to 64 channels MCX
Matches with all 2740/2745 digitizers form factors
Compliant to single-ended 274xB models only

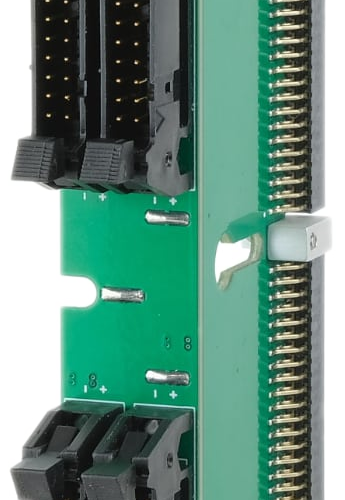

Matches the QDC’s input impedance from 50 Ω to 110 Ω
Decouples the QDC’s and the source’s ground
Converts differential signals into single ended
