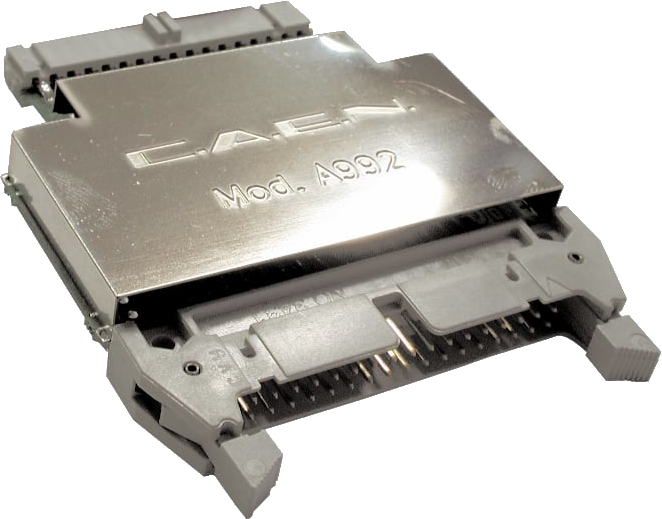

16 Channel Impedance Adapter
A992
The CAEN Mod. A992 is a plug-in card, provided with 16 independent input channels on a 34 pin male header connector, to be inserted into the Mod. V792 QDC’s front panel connectors (one V792 requires two A992 adapters). The card matches the QDC’s input impedance from 50 ฮฉ to 110 ฮฉ, decouples the QDC’s and the source’s ground and converts differential signals into single ended signals.
Features
-
Matches the QDC’s input impedance from 50 ฮฉ to 110 ฮฉ
-
Decouples the QDC’s and the source’s ground
-
Converts differential signals into single ended
