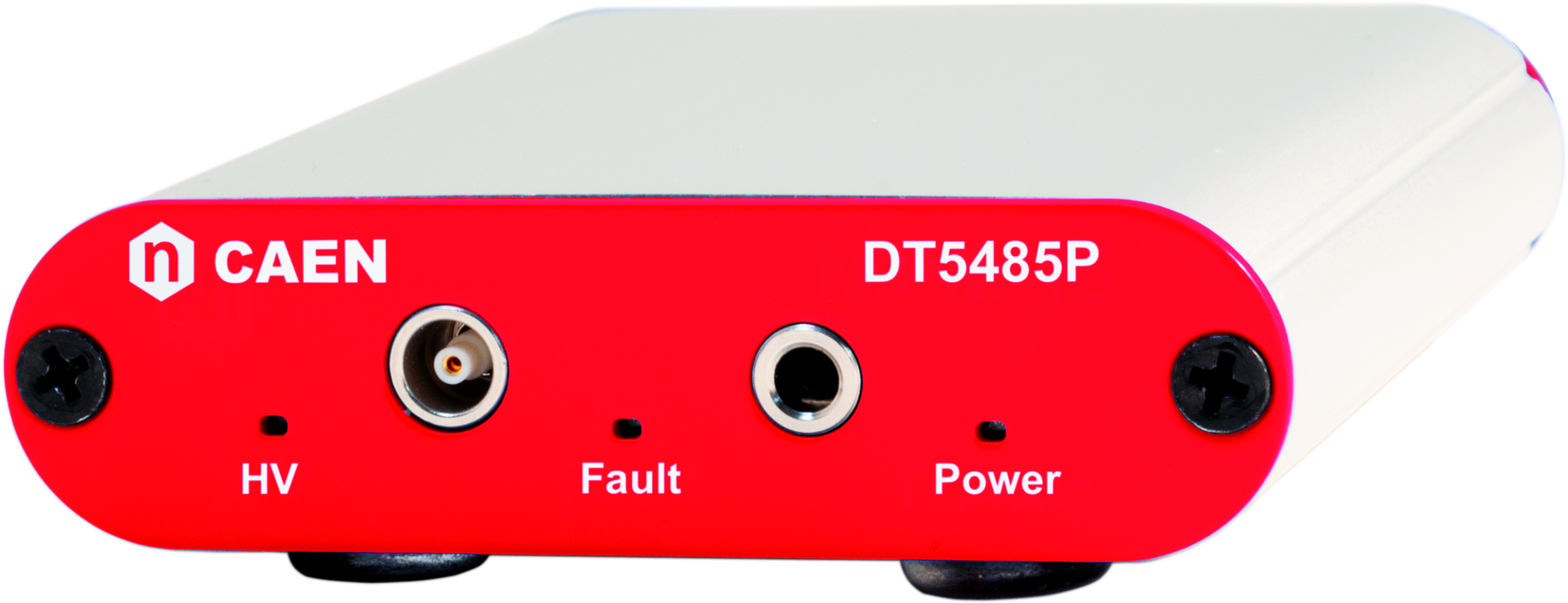

Desktop +85 V/10 mA Digital Controlled SiPM Power Supply with USB
DT5485
The DT5485P is a high voltage regulator specifically designed for SiPM bias. It has a built in temperature compensation controller with programmable coefficient (3.5mm audio socket for temperature probe input). Two versions are available: DT5485P (supplied and controlled via USB) and DT5485PB (USB controlled, with external +12V power supply). The unit can provide up to 10 mA and the output voltage could be regulated between 20V and 85V with a resolution of 1mV on a LEMO 00 connector. Moreover, the ZEUS control software is provided for free; ZEUS allows to monitor and control multiple modules at same time.
Zeus Software
ZEUS is a Windows compatible software that allows to control multiple DT5485P modules using USB connection. The software is based on a user friendly GUI that allows the parameters configuration and the data logging on file. It integrates real-time plot capabilities (voltage, current and temperature) with the possibility to superimpose measurements from several modules. ZEUS software is the simplest way to program temperature LUT compensation.
Developed in collaboration with Nuclear Instruments.
Features
-
Single Desktop HV channel, two versions available:
-
DT5485P: powered and controlled by USB
-
DT5485PB: controlled by USB, with +12V external power supply
-
-
20÷85 V (10 mA) output range
-
Suitable for large SiPM matrix
-
LEMO 00 output connector
-
Very low ripple (<0.1mVpp typical)
-
Open-source C library for I2C interfacing of multiple devices available on GitHub repository
-
Python Library available on GitHub repository
-
High resolution on voltage and current monitor
-
Programmable temperature compensation
-
3.5mm audio socket for temperature probe input
-
Software Tool for easy channel management
-
DT5485PB version: enhanced performances with external power supply
