32 Channel 3.2 kV / 0.5 mA / 1.1 W Board
A3535

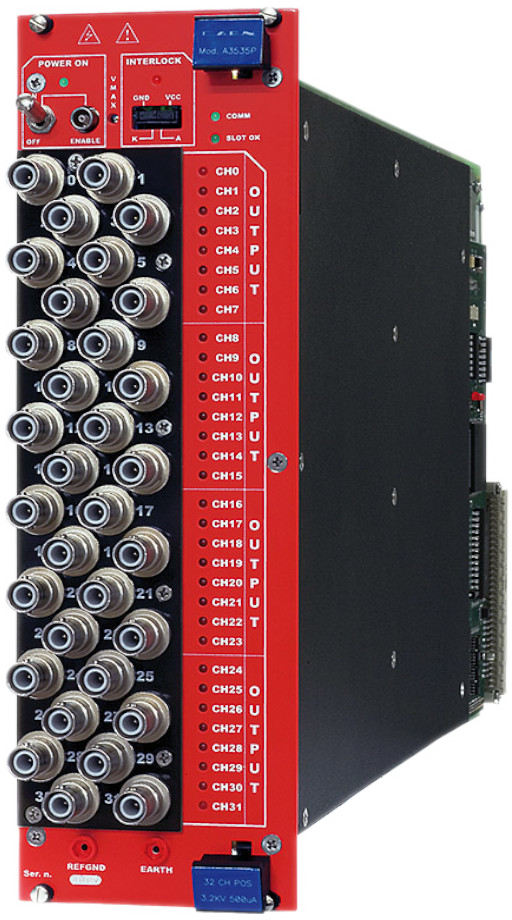

The CAEN Mod. A3535 3.2 kV / 0.5 mA / 1.1 W Power Supply Board is developed for operation in magnetic field and radioactive environment. One A3535 houses 32 3.2 kV / 0.5 mA channels with common floating return. The output voltage can be set with 500 mV monitor resolution.
|
SHV connector |
Consult our connectors reference page for technical information.
Moreover, for each channel, a voltage protection limit SVMAX can be fixed via software with 500 mV resolution and the output voltage can not be programmed beyond this value.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
|
Overcurrent detection |
When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
Maximum output voltage can be set via front panel potentiometer, at the same common value for all the board channel. VMAX value can be read out via software. |
Features
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
32 3.2 kV / 0.5 mA channels
-
Common Floating Return
-
VMax and IMax set by trimmer
-
Channel protections: overvoltage, overcurrent, overtemperature
-
On/Off for each channel
-
Interlock capability
-
Local and remote 48V Service on/off
