6 Channel 8 V / 16 A / 90 W Power Supply Board
A3016B

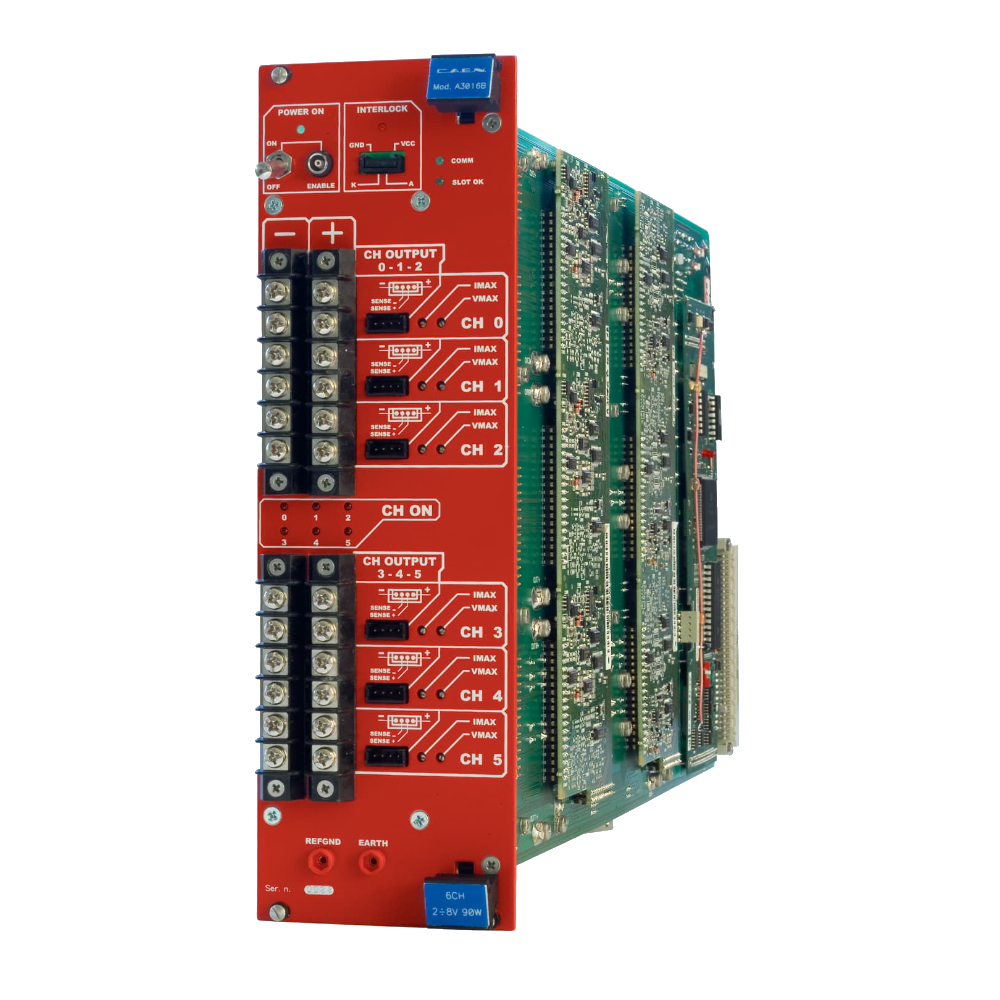

The CAEN Mod. A3016B is a 6 Channel 8 V / 16 A Power Supply Board, developed for operation in magnetic field and moderate radioactive environment. One A3016B houses six floating (reversible polarity) 8 V / 16 A / 90 W maximum output power channel. The connector output voltage range is 2 ÷ 8 V with 5 mV monitor resolution; channel control includes various alarms and protections.
|
Screw lock connector Conn Header R/A 64pos 2.54mm for Mod. A3016B |
Consult our connectors reference page for technical information.
The board is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
|
Overcurrent detection |
When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value. |
Features
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
6 floating 1.5 ÷ 8 V / 16 A channels
-
90 W maximum output power per channel
-
VMax and IMax set by trimmer for each channel
-
On/Off for each channel
-
Channels individually controlled and protected
-
Interlock capability
-
48 V Service local and remote on/off
-
Screw Lock output connectors
