12 Channel 8 V / 9 A / 45 W Power Supply Board
A3009B

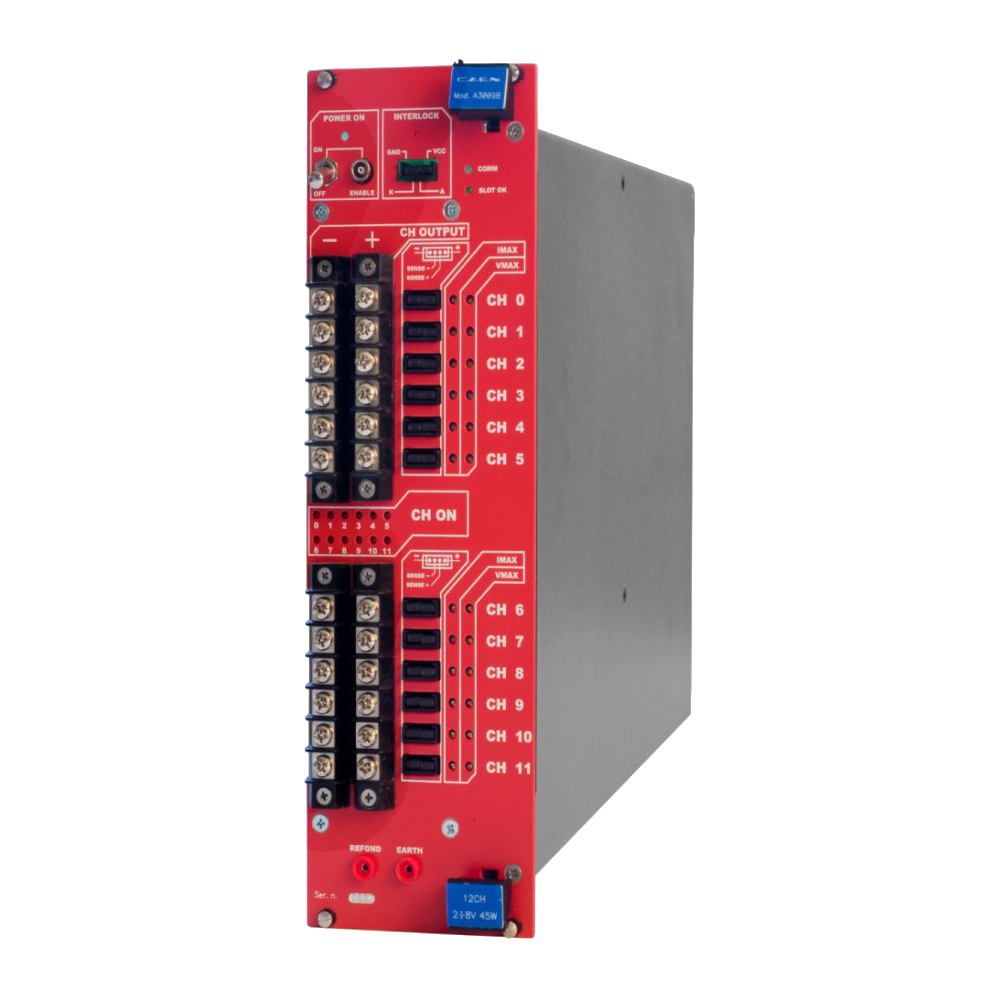

The CAEN Mod.A3009B 12 Channel 8 V / 9 A Power Supply Board is developed for operation in magnetic field and moderate radioactive environment. One A3009B houses 12 floating (reversible polarity) 8 V / 9 A / 45 W maximum output power channel. The connector output voltage range is 1.5 ÷ 8 V with 5 mV monitor resolution; channel control includes various alarms and protections.
The board is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables.
|
Screw lock connector Conn Header R/A 64 pos 2.54mm for Mod. A3009B, A3009RB |
Consult our connectors reference page for technical information.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
|
Overcurrent detection |
When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value. |
Features
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
12 floating 1.5 ÷ 8 V / 9 A channels
-
45 W maximum output power per channel
-
VMax and IMax set by trimmer for each channel
-
On/Off for each channel
-
Channels individually controlled and protected
-
Voltage Drop compensation via sense wires
-
Interlock capability
-
48 V Service local and remote on/off
-
Screw Lock output connectors
