4 Positive and 2 Negative Ch 16 V / 6 A / 90 W Power Supply Board
A3006

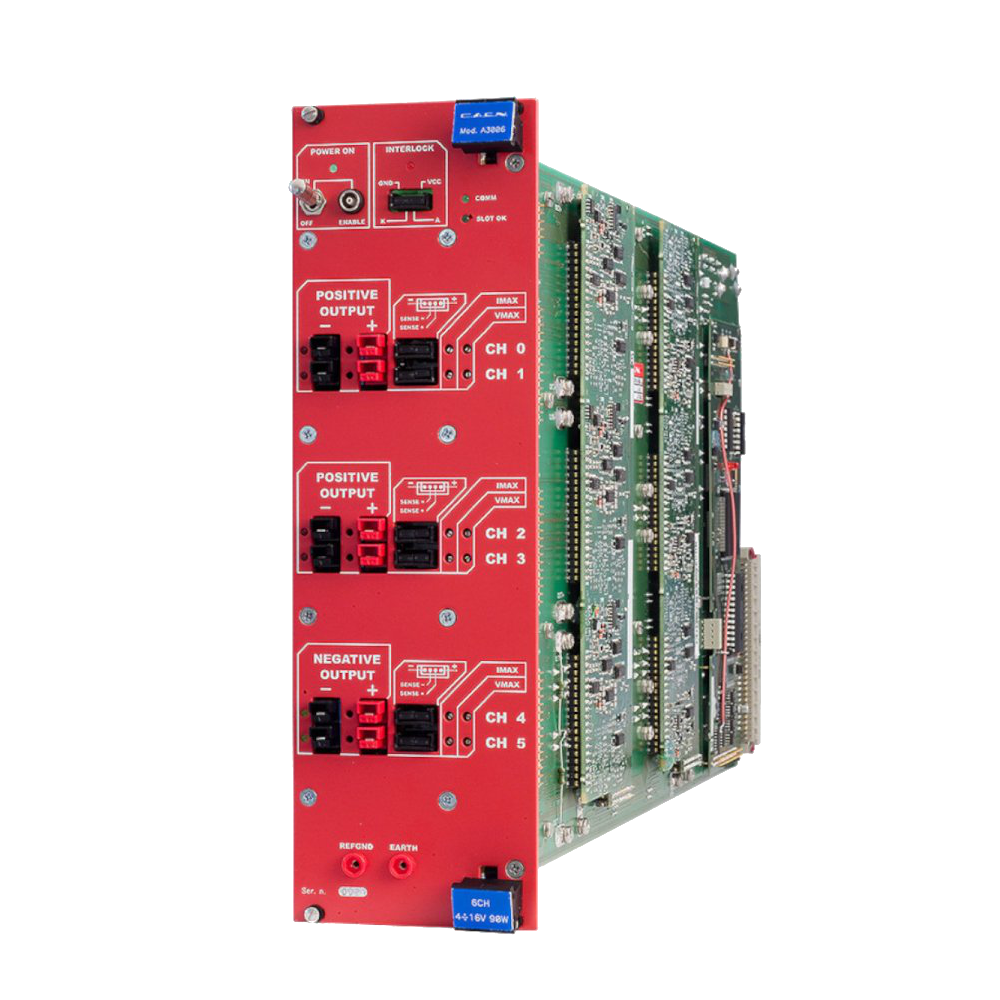

The CAEN Mod. A3006 16 V / 6 A / 90 W Power Supply Board is developed for operation in magnetic field and radioactive environment. One A3006 houses four positive and two negative 16 V / 6 A (90 W maximum output power) channels. The board is floating up to 50 V with respect to earth. The connector output voltage range is 4 ÷ 16 V with 10 mV monitor resolution. The board is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables.
|
APP30 connector APP30 1317G4 type connector for Mod.A3006 |
Consult our connectors reference page for technical information.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
|
Overcurrent detection |
When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed via software with 10 mV resolution and the output voltage can not be programmed beyond this value. |
Features
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
4 positive and 2 negative 4 ÷ 16 V / 6 A channels
-
90 W maximum output power per channel
-
VMax and IMax set by trimmer for each channel
-
On/Off for each channel
-
Channels individually controlled and protected
-
Voltage Drop compensation via sense wires
-
Interlock capability
-
48 V Service local and remote on/off
-
Common floating return
