16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board

A1015

Home A1015

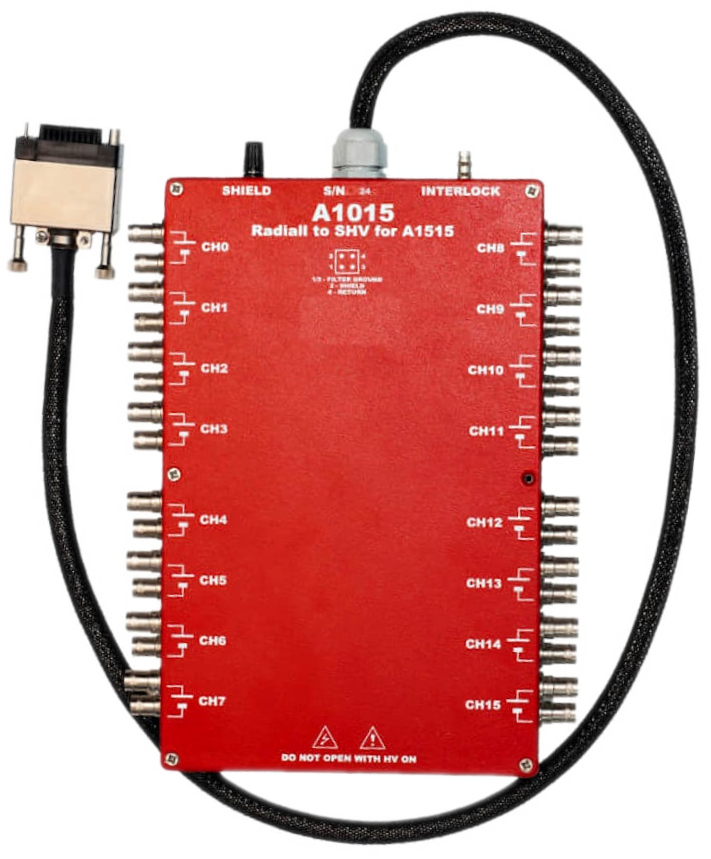

The CAEN Mod. A1015 is a 16 Floating Channel Multipin Radiall to SHV connector Adapter for the A1515 power supply series.

Fits one Radiall 691803004-type Multipin connector into 32 Radiall R317580-type SHV connectors.
Desktop mechanic.
INTERLOCK and SHIELD connections are provided through LEMO and Industrial Terminal connectors.
Maximum input voltage: 5 kV.

Code	Description
WA1015VMXAAA	A1015VM – Analog Voltage Monitor for A1515/A1515TG/A1515QG boards (In design)	RoHS
WA1015XAAAAA	A1015 – 16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board (In production)	RoHS

Code

Description

WA1015VMXAAA

A1015VM – Analog Voltage Monitor for A1515/A1515TG/A1515QG boards

(In design)

RoHS

WA1015XAAAAA

A1015 – 16 Floating Channel Multipin Radiall to SHV connector Adapter for A1515 board

(In production)

RoHS
