Delay Unit
V972

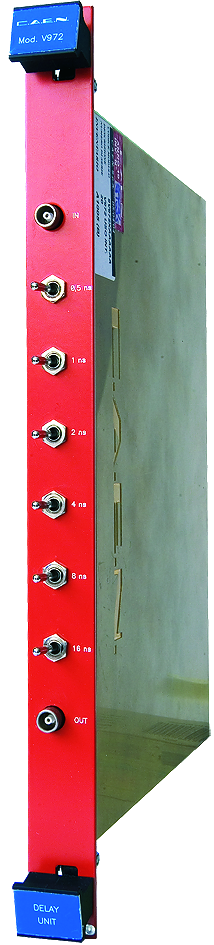

The CAEN Mod. V972 is a 1-unit wide VME 6U module that houses a delay unit with a range from 0 to 31.5 ns with a 2.6 ns offset. The delay can be set in 0.5 ns steps via front panel toggle switches. The unit is made up of calibrated coaxial cable stubs for high accuracy delay and does not require any power supply. The module features LEMO 00 I/O connectors.
|
LEMO connector 1-unit wide VME 6U for Mod. V972 |
Consult our connectors reference page for technical information.
Features
-
Completely passive delay via a set of calibrated coaxial cable stubs (50 Ω)
-
0.5 to 31.5 ns delay with 2.6 ns offset
-
0.5 ns resolution
-
±100 ps accuracy on 0.5 to 8 ns delay steps; ±200 ps accuracy on 16 ns step
-
VSWR < 1.15
