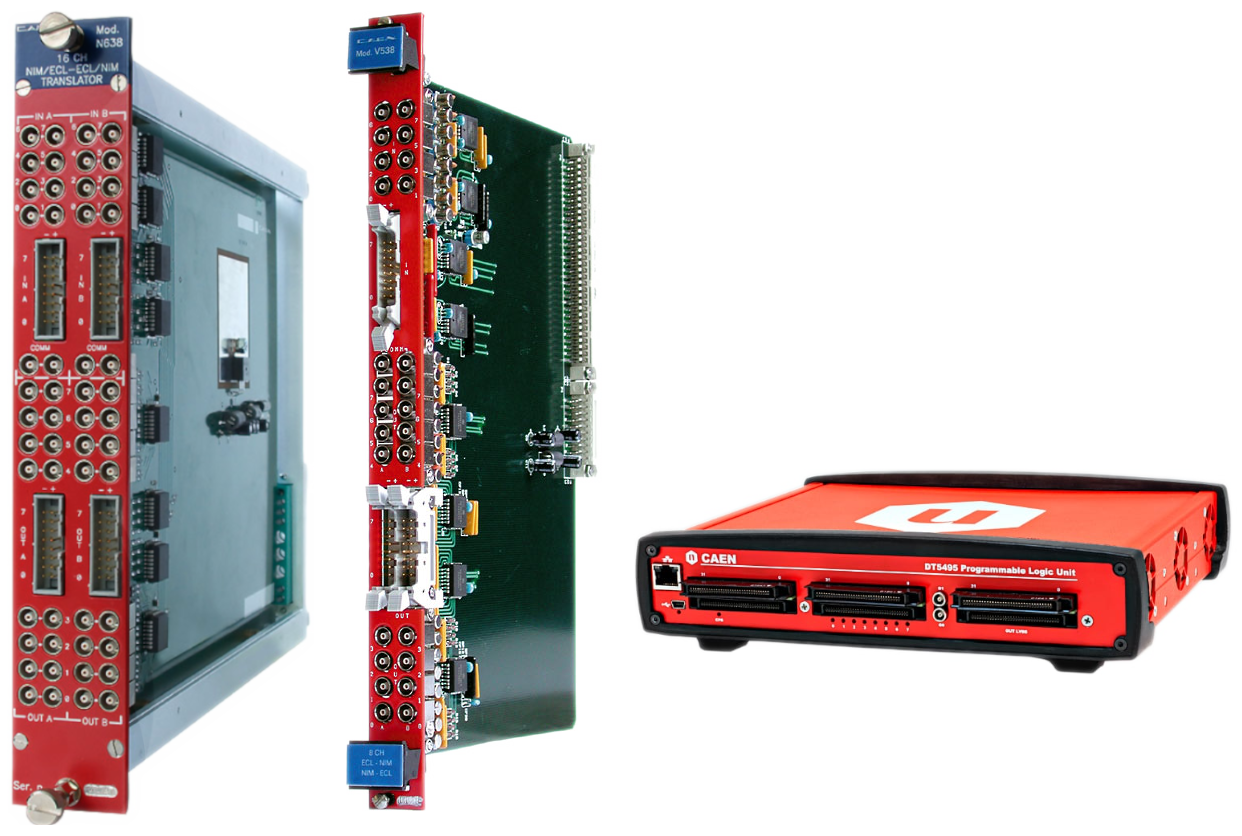

Translators

Digital

Translators

Translators Models

C468

C468

  • Two 8 channel sections
  • DC coupled channels
  • Working frequency up to 200 MHz
  • I/O delay < 7 ns

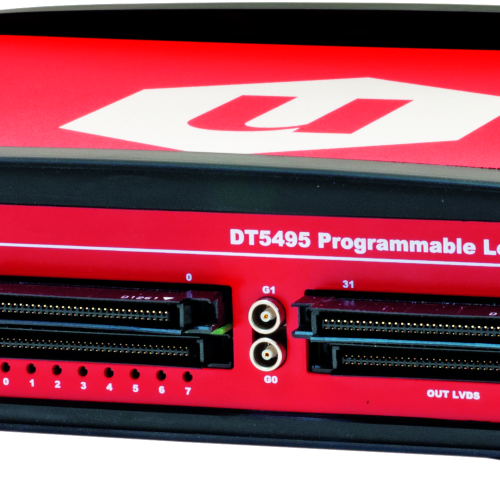

DT5495

DT5495

  • User Programmable FPGA

  • Compact Desktop form factor

  • Up to 162 inputs, up to 130 outputs

  • LVDS/ECL/PECL/NIM/TTL

  • 3 expansion slots for piggyback board:

    • A395A 32 LVDS/ECL/PECL input ch.

    • A395B 32 LVDS output ch.

    • A395C 32 ECL output ch.

    • A395D 8 NIM/TTL input/output ch.

    • A395E 8 Analog output 16bit ch.

  • 32 independent programmable Gate and Delay Generator

  • Ethernet and Mini-USB 2.0 Connection

  • Available in VME version V2495

  • Supported by SCI-Compiler software tool

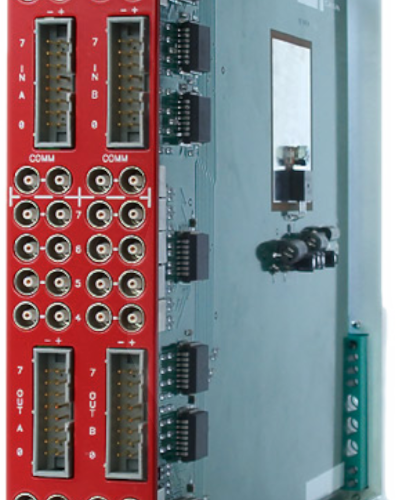

N638

N638

  • 16 independent NIM to ECL/NIM and ECL to NIM/ECL channels

  • NIM fan-out of two

  • 300 MHz maximum operating frequency

  • 2 COMMON IN input with a fan-out of 16 NIM and 8 ECL

  • I/O delay from 1.5 to 3.5 ns, depending on input type
N89

N89

  • 8 NIM-TTL, 8 TTL-NIM translator channels

  • Less than 10 ns input/output delay

  • 60 MHz max. operating frequency

  • No duty-cycle limitations

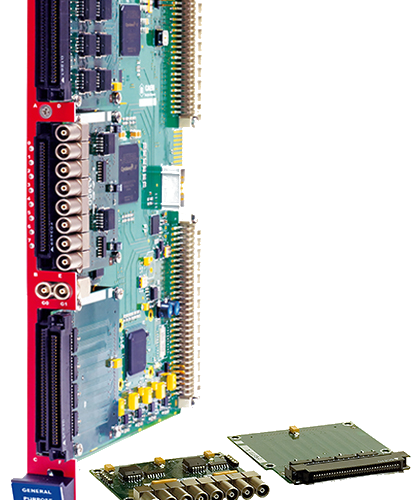

V1495
Obsolete

V1495

  • User customisable FPGA Unit (with preloaded demo code)
  • LVDS/ECL/PECL inputs (differential)
  • 64 inputs, expandable to 162 (with 32 outputs)
  • 32 outputs, expandable to 130 (with 64 inputs)
  • 405 MHz maximum frequency supported by clock tree for registered logic
  • I/O delay smaller than 15 ns (in Buffer Mode)
  • Programmable 3-color LED
  • Libraries (C and LabView) and Software tools for Windows and Linux

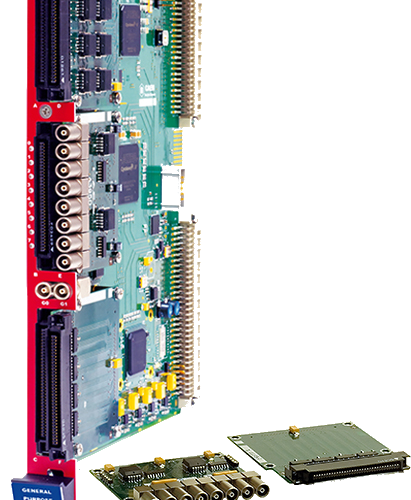

V2495

V2495

  • User customisable FPGA Unit

  • LVDS/ECL/PECL inputs (differential)

  • 64 inputs, expandable to 162 (with 32 outputs)

  • 32 outputs, expandable to 130 (with 64 inputs)

  • 32 independent programmable Gate and Delay Generators

  • 3 expansion slots for piggyback board

  • Mini-USB 2.0 Connection

  • Available in Desktop version DT5495

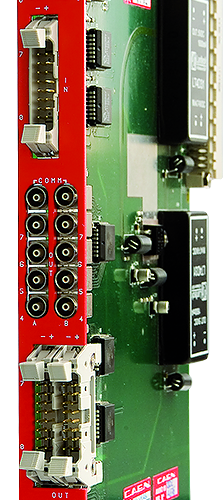

V538A

V538A

  • 8 independent NIM to ECL/NIM and ECL to NIM/ECL channels

  • NIM and ECL fan-out of 2

  • 300 MHz maximum operating frequency

  • COMMON IN input with a fan-out of 16 (both NIM and ECL)

  • I/O delay <5 ns
