TDCs

Digital

TDCs

TDCs Models

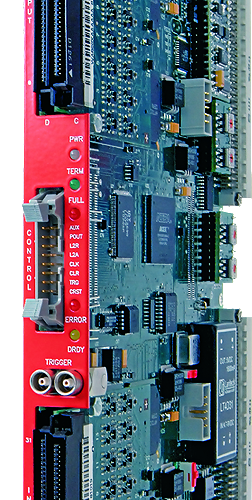

V1190A-2ESST

V1190A-2ESST

  • 3 programmable ranges: 100 ps LSB (19 bit resolution), 200 ps LSB (19 bit) and 800 ps LSB (17 bit)

  • ECL/LVDS inputs automatically detected

  • 5 ns Double Hit Resolution

  • Leading and Trailing Edge detection

  • Trigger Matching and Continuous Storage acquisition modes

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

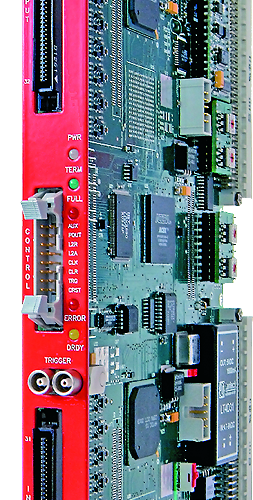

V1190B-2ESST
Obsolete

V1190B-2ESST

  • 3 programmable ranges: 100 ps LSB (19 bit resolution), 200 ps LSB (19bit) and 800 ps LSB (17 bit)

  • ECL/LVDS inputs automatically detected

  • 5 ns Double Hit Resolution

  • Leading and Trailing Edge detection

  • Trigger Matching and Continuous Storage acquisition modes

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Live Insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

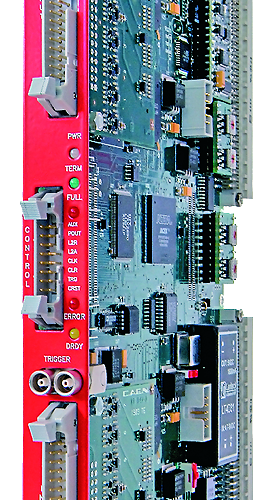

V1290A-2ESST

V1290A-2ESST

  • 25 ps LSB

  • 21 bit resolution

  • 52 µs full scale range

  • ECL/LVDS Input Signals

  • 5 ns Double Hit Resolution

  • Trigger Matching and Continuous Storage acquisition modes

  • Leading and/or Trailing Edge detection

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Live Insertion

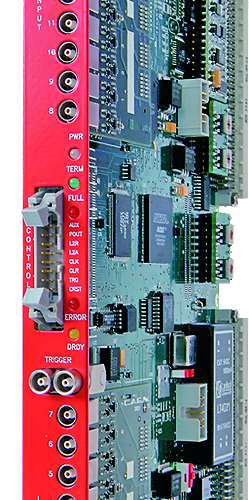

V1290N-2ESST

V1290N-2ESST

  • 25 ps LSB

  • 21 bit resolution

  • 52 µs full scale range

  • NIM Input Signals

  • 5 ns Double Hit Resolution

  • Leading and Trailing Edge detection

  • Trigger Matching and Continuous Storage acquisition modes

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Live Insertion

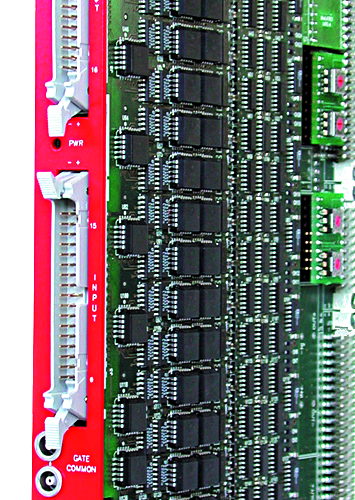

V775

V775

  • High channel density

  • 12 bit resolution

  • 5.7 µs / 32 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±0.1% integral non linearity

  • ±1.5% differential non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux
V775N

V775N

  • High channel density

  • 12bit resolution

  • 2.8 µs / 16 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±0.1 % Integral non linearity

  • ±1.5% differential non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

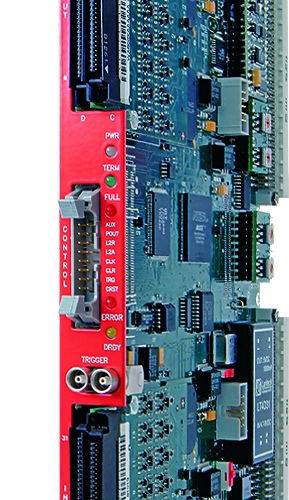

VX1190A-2ESST

VX1190A-2ESST

  • 3 programmable ranges: 100 ps LSB (19 bit resolution), 200 ps LSB (19 bit) and 800 ps LSB (17 bit)

  • ECL/LVDS inputs automatically detected

  • 5 ns Double Hit Resolution

  • Leading and Trailing Edge detection

  • Trigger Matching and Continuous Storage acquisition modes

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Geographical address supported

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

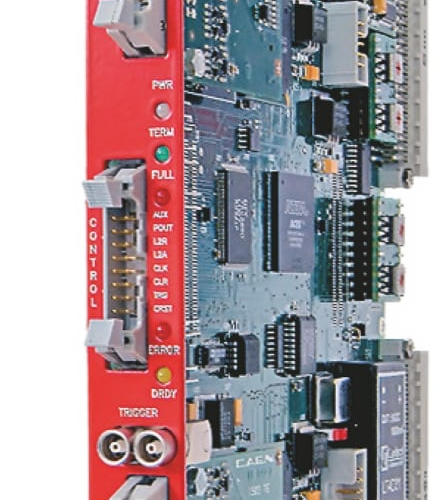

VX1190B-2ESST
Obsolete

VX1190B-2ESST

  • 3 programmable ranges: 100 ps LSB (19 bit resolution), 200 ps LSB (19 bit) and 800 ps LSB (17 bit)

  • ECL/LVDS inputs automatically detected

  • 5 ns Double Hit Resolution

  • Leading and Trailing Edge detection

  • Trigger Matching and Continuous Storage acquisition modes

  • 32 k x 32 bit output buffer

  • MBLT, CBLT and 2eSST data transfer

  • Multicast commands

  • Geographical address supported

  • Live Insertion

  • VME64X backplane required

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux
