Up to 85 V Power Supply Module for SiPM

The modules A7585D/A7585DU and DT5485P are a compact desktop solution to provide stable and noiseless power supply for single and array/matrix SiPM detectors. A7585D/A7585DU are high voltage regulators specifically designed for SiPM bias. Each of them, provides a built in temperature compensation controller with programmable coefficient.

Features

20-85 V Output Voltage
10 mA Output Current
1 mV Output Voltage step
Less than 300 µV rms noise
User Selectable Digital / Analog output voltage control
Automatic temperature feedback on the output voltage
Support for remote analog temperature sensor on the detector unit
Internal memory for permanent storage of calibration and configuration
UART/I2C digital control + Analog input (0-4.5 V)
Real-time Output Voltage and Output Current monitoring
60 nA resolution on measured Output Current
1.5 mV resolution on measured Output Voltage
0.05 °C resolution on measured Temperature
Extremely compact: 35x39x5 mm³
Input Voltage: 5-26 V
Power consumption: 100 mW (without load)
ZEUS control software available

Single Channel 85 V/10 mA Power Supply Module for SiPM with UART, I2C & USB Models

A7585D/DU

Single channel PCB mount High Voltage Power Supply
- A7585D: SMD version
- A7585DU: Through-Hole version
20÷85 V (10 mA) output range
Suitable for large SiPM matrix
Analog and Digital Control (UART and I2C)
Very low ripple (<0.1 mVpp typical)
High resolution on voltage and current monitor
Programmable temperature compensation
Open-source C library for I2C interfacing of multiple devices available on GitHub repository
ZEUS Control Software for easy management of the module
Python Library available on GitHub repository
USB interface (A7585DU Only)

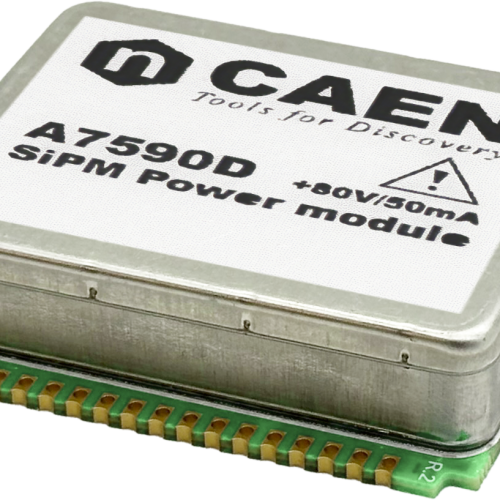

A7590D

2-75 V Output Voltage
Programmable output ramp starting from 1.2V to output voltage
50 mA maximum output current
1 mV Output Step Voltage
Low noise, 560 μVrms at 50mA
Isolated output. It can be used to provide both positive and negative power supply
I2C, UART, USB and Analog Voltage control
HV SiPM temperature compensation with remote temperature sensing
100 μV resolution voltage monitor
100 nA resolution current monitor
0.05°C resolution temperature monitor
Programmable over-current protection
Open source libraries in C/C++ and Python compatible with Arduino and Raspberry PI
Working on Windows and Linux
Zeus User interface to control multiple devices both via I2C, UART or USB
THT and SMT compatible footprint

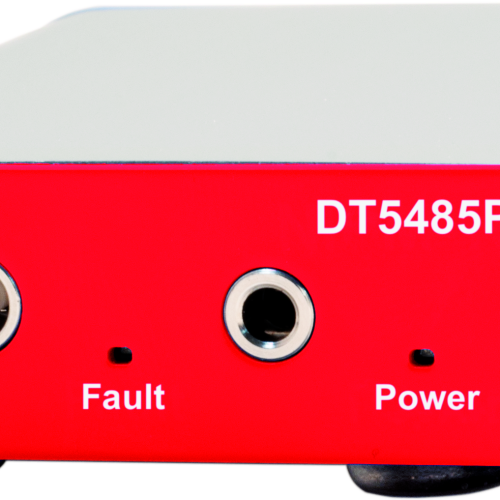

DT5485P/PB

Single Desktop HV channel, two versions available:
- DT5485P: powered and controlled by USB
- DT5485PB: controlled by USB, with +12V external power supply
20÷85 V (10 mA) output range
Suitable for large SiPM matrix
LEMO 00 output connector
Very low ripple (<0.1mVpp typical)
Open-source C library for I2C interfacing of multiple devices available on GitHub repository
Python Library available on GitHub repository
High resolution on voltage and current monitor
Programmable temperature compensation
3.5mm audio socket for temperature probe input
Software Tool for easy channel management
DT5485PB version: enhanced performances with external power supply

Smart control

The module can be digitally controlled by UART and I2C. A7585DU moreover integrates a USB to UART bridge and it could be powered from USB. Output voltage could be also controlled proportionally to an analog input.

A7585D/A7585DU can provide up to 10 mA and the output voltage could be regulated between 20V and 85V with a resolution of 1mV. Moreover, the ZEUS control software is provided for free; ZEUS allows to monitor and control multiple modules at same time.

Applications

SiPM (single and matrix) bias
PIN diodes bias
SiPM characterization
High resolution spectroscopy systems
Medical Imaging systems
LIDARs

Plug and Play

The A7585DU model comes with Micro-USB Connection for an easy plug ‘n play functionality providing power and data transfer in one cable. Simple to setup and control, just install the software ZEUS.

The module also has a 2.54 mm connector to integrate it in the user circuit and operate in self-power mode.

A7585 Functional Diagram
