50 MHz, 62.5 MHz clock frequencies available and switch selectable
-
Can be operated as a signal or a clock fan-out from another external source (maximum frequency 300 MHz)
-
10 differential LVDS outputs
-
USB powered or by external power supply (5÷12 V)
-
External Clk in LVDS, LVPECL
-
Compatible with A317 clock distribution cable

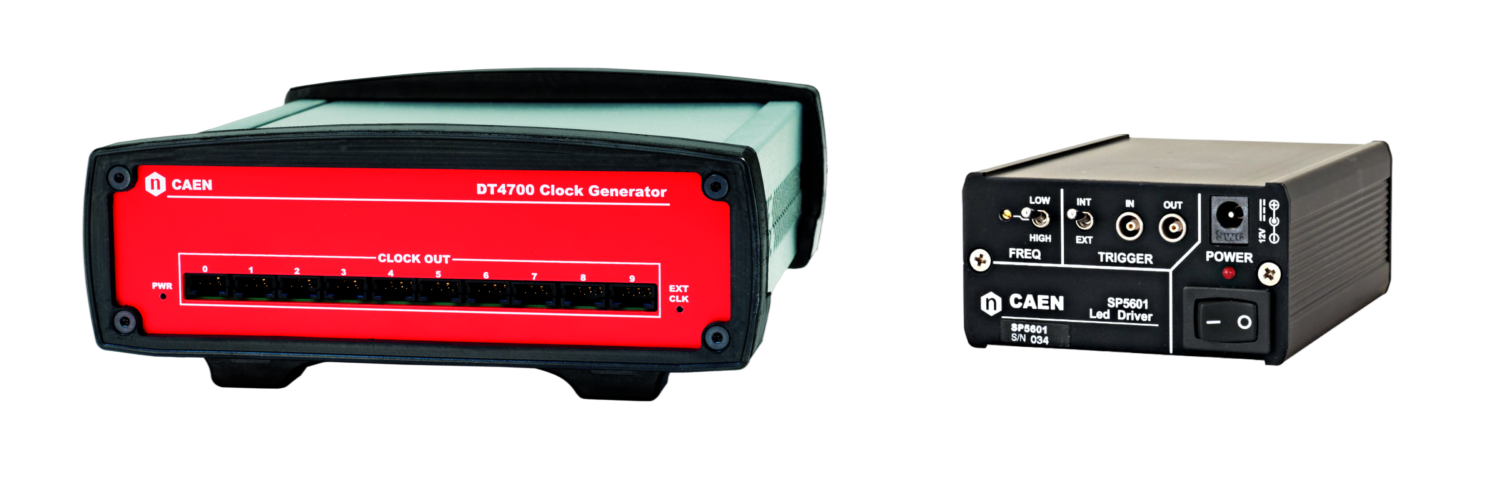

Signal Generators
Digital
Signal Generators
Signal Generators Models
DT4700

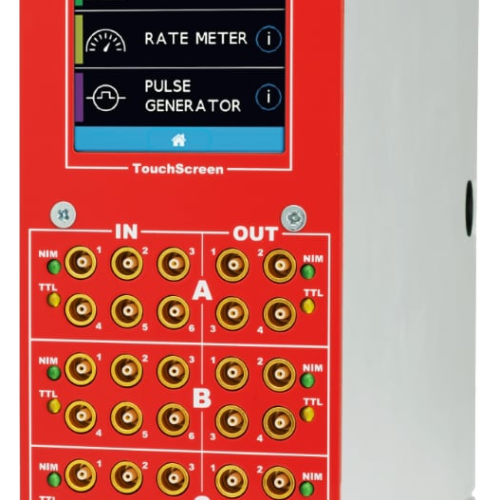

N1081B
- Double-width NIM unit
- Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator.
- 4 independent sections, each with:
- 6 NIM/TTL/ANALOG input
- 4 NIM/TTL output
- Input stage with Gate&Delay and Leading Edge Discriminator for analog input signals
- Output stage with Monostable capability
- 2.8” touch screen display with user-friendly widgets to configure each section and monitor real-time data
- Ethernet (1 Gbps) and USB2.0 connectivity
- Web-based Graphical User Interface to remotely control the module and access advanced features
- Python SDK and libraries available for free

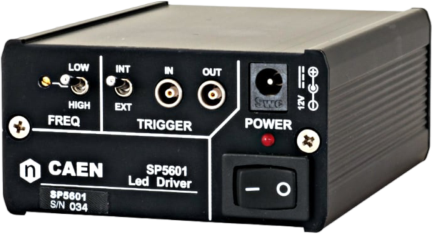

SP5601
-
Pulse width: 8 ns
-
LED color: violet (400 nm) 1500 mcd
-
Pulse generator: internal/external
-
Optical output connectors: FC
-
Optical fiber included
-
Dimension: 79 x 42 x 102 mm3 (WxHxD)

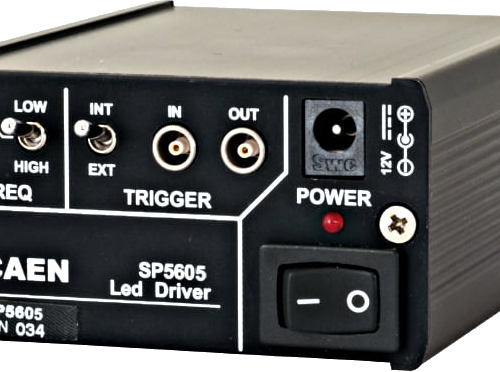

SP5605
-
Pulse width: 4 ns
-
LED color: UV (255 nm), 0-27000 photons
-
Pulse generator: internal/external
-
Optical output connectors: FC
-
Optical fiber included
-
Dimension: 79 x 42 x 102 mm3 (WxHxD)
