Scalers

Digital

Scalers

Scalers Models

C257
Obsolete

C257

  • 16 independent 24-bit channels
  • Cascadeable channels in order to obtain up to 24×16 bit counting depth
  • 100 MHz counting frequency
  • Three available versions: ECL, NIM or TTL inputs
  • LAM generation when the counter is full
  • Fast Clear, Inhibit and Test NIM inputs
DT1081B
New

DT1081B

  • Handy Desktop form factor

  • Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator

  • 4 independent sections, each with:

    • 6 NIM/TTL/ANALOG input

    • 4 NIM/TTL output

  • Input stage with Gate&Delay and Leading Edge Discriminator for analog input signals

  • Output stage with Monostable capability

  • 2.8” touch screen display with user-friendly widgets to configure each section and monitor real-time data

  • Ethernet (1 Gbps) and USB2.0 connectivity

  • Web-based Graphical User Interface to remotely control the module and access advanced features
FW1495SC

FW1495SC

  • Up to 128 Channel Latching Scaler

  • 250 MHz maximum counting frequency

  • 32 bit channel depth

  • Multichannel scaler operation with programmable dwell time from 1 µsec to ~ 1 hour

  • 4 k x 32 bit multievent buffer memory

  • Trigger time tag

  • VME Block Transfer support

  • Free Trial version download
FW2495SC

FW2495SC

  • Up to 160 Channel Latching Scaler

  • Up to 200 MHz of counting frequency

  • 64-bit channel depth

  • Multichannel scaler operation with programmable dwell time from 1 µs to 4000 s

  • 4 k x 32 bits multievent buffer memory

  • 64-bit Trigger time tag

  • VME Block Transfer support

  • Event payload legacy option for V1495 compliance

  • Free Trial version download

  • Windows compliant demo program with C source files and VS project for developers
N1081B

N1081B

  • Double-width NIM unit
  • Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator.
  • 4 independent sections, each with:

    • 6 NIM/TTL/ANALOG input
    • 4 NIM/TTL output

  • Input stage with Gate&Delay and Leading Edge Discriminator for analog input signals
  • Output stage with Monostable capability
  • 2.8” touch screen display with user-friendly widgets to configure each section and monitor real-time data
  • Ethernet (1 Gbps) and USB2.0 connectivity
  • Web-based Graphical User Interface to remotely control the module and access advanced features
  • Python SDK and libraries available for free

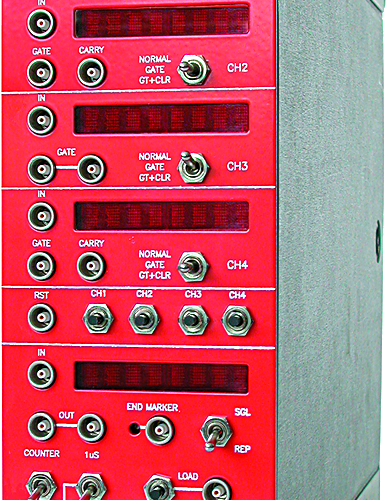

N1145

N1145

  • Four 8-digit up-counters with 250 MHz max counting rate
  • One 7-digit down-counter with 80 MHz max counting rate
  • NIM and TTL inputs
  • One LED display per section
  • Up to three sections can be cascaded for 24-digit counting
  • Frequency and frequencies ratio measurements
  • Individual GATE and RESET per counter
  • Manual or pulse triggered RESET

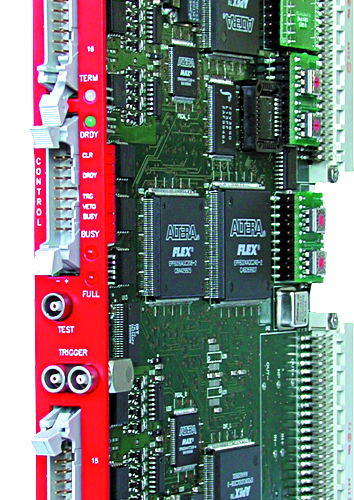

V830
Obsolete

V830

  • Available with either ECL or LVDS inputs
  • 250 MHz counting frequency
  • 32 bit channel depth
  • 32 k x 32 bit multievent buffer memory
  • Multichannel scaler operation with programmable dwell time from 1.2 µs to 1700 s
  • BLT32/MBLT64 and CBLT32/CBLT64 data transfer
  • Multicast commands
  • Live insertion
