Readout Software Models

CAENSCOPE

CAENSCOPE

  • User friendly single frame GUI with intuitive controls

  • Compatible with CAEN Waveform Digitizers

  • Extended plot and record capability up to 16 simultaneous traces

  • High configuration flexibility:

    • individual channel enable/disable

    • individual channel trigger threshold and DC offset adjustment

    • common trigger among channels

    • external trigger enable/disable

    • auto trigger

  • Multi format (ASCII, binary) data saving

  • Import/Export of recorded waveform and software settings

  • Compliant with Windows and Linux platforms
COMPASS

COMPASS

  • Software for simultaneous DPP acquisition, including DPP‑PHA, DPP-PSD and DPP-QDC
  • Multi-board management
  • Synchronization of multiple boards even from different families, Time Correlation between different channels
  • Simultaneous plot of waveforms, energy, time, PSD, and TOF spectra
  • Energy calibration
  • Digital Constant Fraction Discrimination for fine time stamp interpolation (pico second intrinsic resolution)
  • Selectable filters on energy, time and PSD
  • Advanced data saving options:
    • Data from board is recorded for the whole acquisition run
    • Time ordered recording of channels acquired data (list mode)
    • Spectra saving
  • Data can be retrieved offline for additional filtering and analysis
  • ROOT format data saving
JANUS
New

JANUS

  • Model-dependent GUI for a quick and easy start

  • Open-Source for user customization

  • Management of the acquisition parameters of all connected boards

  • Multi parametric Jobs and Runs with time or counts preset

  • Data saving of lists in .bin, .txt format

  • Statistics and Plots visualization
WAVECATCHER
PUBLISHED

WAVECATCHER

  • Software by CNRS/IN2P3/LAL to control x743 digitizers
  • Single-board communication and data acquisition management
  • Multi-board control of V1743/VX1743 basing on multiple software instances
  • Friendly Graphical User Interface for board configuration and on-line measurements setting
  • Waveforms, charge and time distance histograms advanced plotting
  • Advanced menu for Rate, Noise and Time measurements
  • Saving and recalling options for configuration parameters and data
  • Data saving (waveforms and/or measurements) in ASCII and Binary file formats for storage or off-line analysis
  • Compliant with Windows OS
WaveDemo x743
New

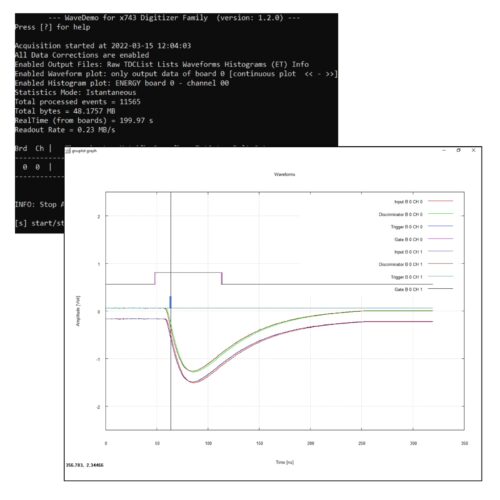

WaveDemo x743

  • Basic Console application exclusive for x743 CAEN digitizers

  • Single and multi-board complete control

  • Synchronized mode management of V1743/VX1743

  • Multichannel waveform plot

  • Advanced mode configuration:

    • Common board settings

    • Individual settings for threshold and DC offset adjustment

  • Advanced mathematical functions: amplitude spectra and FFT

  • Multi format (ASCII, binary) data saving

  • Source files and Visual Studio project open source for developers
WAVEDUMP2
New

WAVEDUMP2

  • Open Source, licensed under GNU LGPL 3.0

  • Waveform recording application

  • Oscilloscope-like plot section

  • Simultaneous wave view from up to 8 input channels

  • Multi-board management

  • Flexible and easy configuration of trigger and channel settings

  • Save/Reload of current configuration

  • ASCII and Binary output data files

  • Runtime FFT analysis
