1 Ch 3 kV/2 mA Desktop 19'' Power Supply Module (USB/Ethernet/T.screen)
R1472ETS

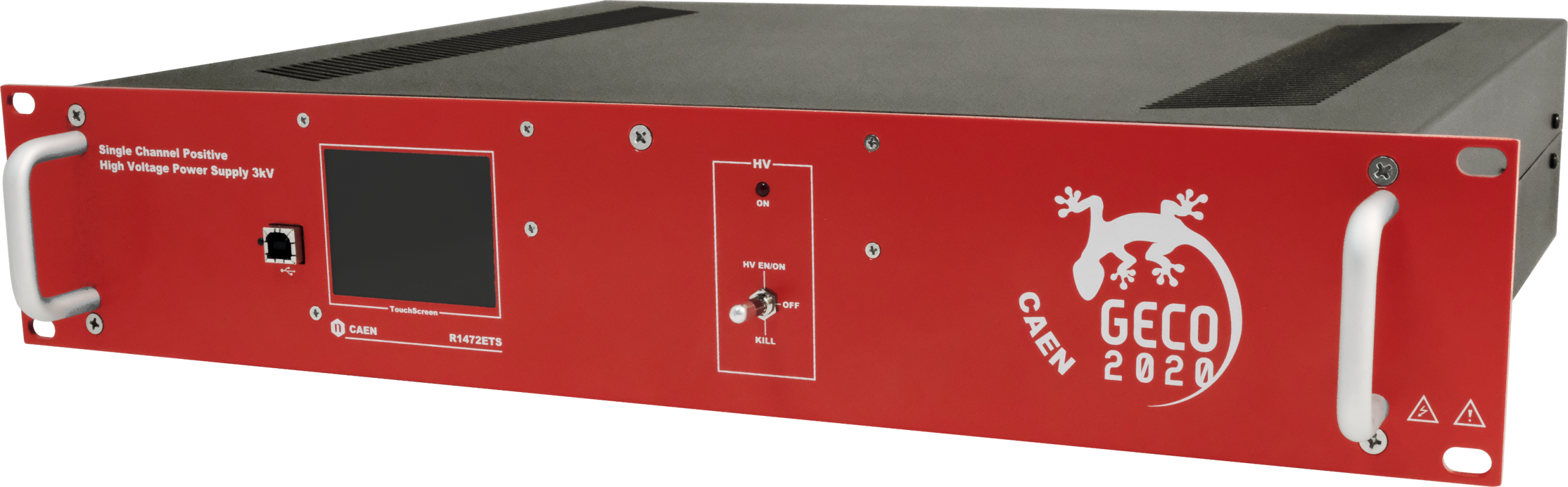

The CAEN Mod. R1472ETS provides 1 High Voltage positive channel in a 19″ rack unit (110/220V AC Powered). The channel can provide a +3 kV max voltage, a 2 mA max current and a 6 W max power.
HV output is delivered through SHV connector. The HV output RAMP-UP and RAMP-DOWN rates may be selected in the range 1÷500 V/s in 1 V/s steps. The module features 50 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 5 nA.
Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet.
|
SHV connector 19” 2U, 1 channel for Mod. R1570ETS |
Consult our connectors reference page for technical information.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Channel |
inhibit. |
|
Overvoltage and Undervoltage |
warning when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
VMAX |
Programmable VMAX protection limit. |
Features
-
1 channel 19″ rack unit
-
220V / 110 V AC powered
-
3 kV / 2 mA output ranges
-
6 W Max output power
-
SHV coaxial output connector
-
100 mV Vset resolution
-
50 nA Iset/Imon resolution (Imon-Zoom: 5 nA)
-
Under/Overvoltage alert, overcurrent and max. voltage protection
-
Programmable ramp-up / ramp-down (1-500 V/s)
-
Daisy-chain capability
-
2.8″ color touch screen display
-
Local and Remote control (USB2.0/Ethernet)
-
Interlock logic for board enable and Individual channel kill
-
Software Tool for easy channel management
