QDC

Analog

QDC

QDC Models

C1205
Obsolete

C1205

  • Three simultaneous ranges: 80 pC, 670 pC and 6 nC
  • 12 bit resolution
  • Total dynamic range larger than 17-bit
  • Integral non linearity: ±20 counts on low range, ±5 counts on high & mid range
  • Noise smaller than ±3 counts on low range, smaller than ±1.5 counts on high & mid range
  • Conversion time: 6.5 µs
  • Gate width from 10 to 500 ns
C205
Obsolete

C205

  • Two simultaneous ranges: 120 and 900 pC
  • 25 fC LSB
  • 12-bit resolution (15 bit total dynamic range)
  • 1.6 ms / 32 ch conversion time
  • Integral non linearity: ±6.5 counts (low range); ±2.5 counts (high range)
  • Gate width: from 100 ns to 5 µs
  • Noise: ±1 count
  • 2% interchannel uniformity
  • 300 ns recovery after Fast Clear
  • Positive, negative or differential input signals
C205A
Obsolete

C205A

  • Two simultaneous ranges: 120 and 900 pC
  • 25 fC LSB
  • 12-bit resolution (15 bit total dynamic range)
  • 0.8 ms / 16 ch conversion time
  • Integral non linearity: ±6.5 counts (low range); ±2.5 counts (high range)
  • Gate width: from 100 ns to 5 µs
  • Noise: ±1 count
  • 2% interchannel uniformity
  • 300 ns recovery after Fast Clear
  • Positive, negative or differential input signals

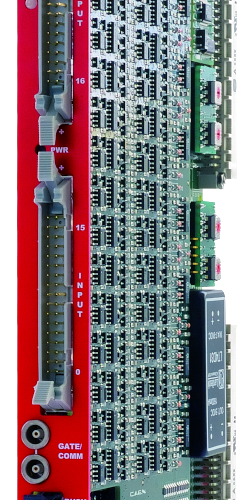

V792

V792

  • High channel density

  • 12-bit resolution

  • 5.7 µs / 32 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±1.5% differential non linearity

  • ±0.1% integral non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux
V792N

V792N

  • High channel density

  • 12bit resolution

  • 2.8 µs / 16 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±1.5% differential non linearity

  • ±0.1% integral non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

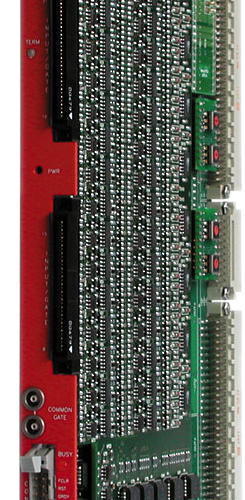

V862

V862

  • Individual Gate input per channel

  • 0 ÷ 400 pC input range

  • Full 12-bit resolution

  • 100 fC LSB

  • 5.7 µs / 32 ch conversion time

  • 32 event buffer memory

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±0.1% integral non linearity

  • ±1.5% differential non linearity

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

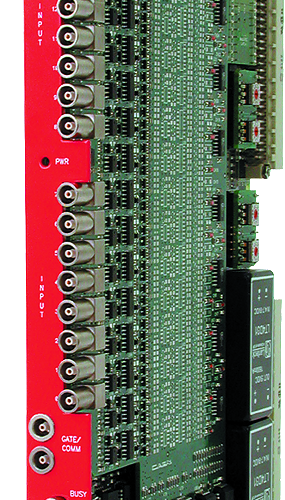

V965

V965

  • Two simultaneous ranges: 0 ÷ 900 pC and 0÷100 pC

  • 12 bit resolution with 15 bit dynamics

  • 25 fC LSB on low range, 200 fC LSB on high range

  • 5.7 µs / 16 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±0.1 % Integral non linearity

  • ±1.5 % Differential non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux

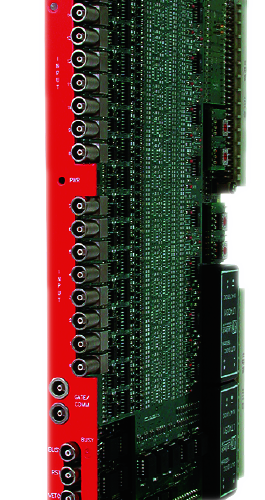

V965A

V965A

  • Two simultaneous ranges: 0 ÷ 900 pC / 0÷100 pC

  • 12 bit resolution with 15 bit dynamics

  • 25 fC LSB on low range, 200 fC LSB on high range

  • 2.8 µs / 8 ch conversion time

  • 600 ns fast clear time

  • Zero and overflow suppression for each channel

  • ±0.1 % Integral non linearity

  • ±1.5 % Differential non linearity

  • 32 event buffer memory

  • BLT32/MBLT64/CBLT32/CBLT64 data transfer

  • Multicast commands

  • Live insertion

  • Libraries, Demos (C and LabView) and Software tools for Windows and Linux
