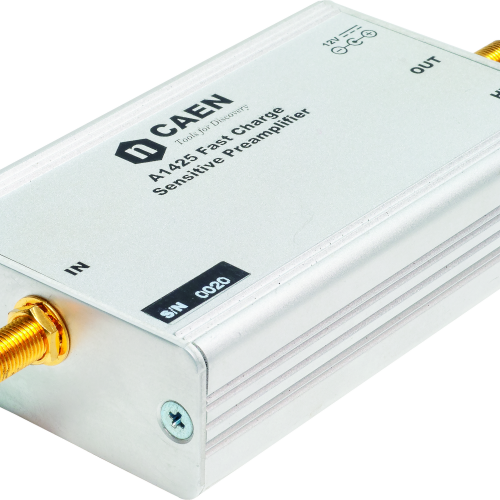

Fast, inverting preamplifier

Sensitivity of 3.6 mV/fC

ENC of 0.16 fC (1000 e)

Output impedance of 50 Ohm

Output range 0 to 1 V

Up to 1 kV (positive or negative) detector bias voltage

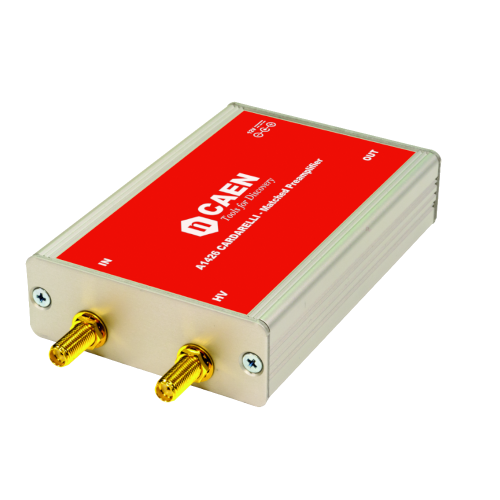

Fast, non-inverting preamplifier, positive output

Up to 5 mV/fC sensitivity

ENC of 0.3 fC (2000 e)

Input impedance can be matched to a 50 Ohm transmission line

Amplifier can be very far from the detector (up to 100m)

Output range 0 to 1 V

Output impedance of 50 Ohm

Up to 1 kV (positive or negative) detector bias voltage
