Piggy Back Board for CAEN Programmable logic Unit DT5495 and V2495 (V1495)
-
Up to 32 Digital Input
-
LVDS/ECL/PECL/NIM/TTL
-
200 MHz Bandwidth
Piggy Back Boards
Modular Electronics Accessories
Piggy Back Boards

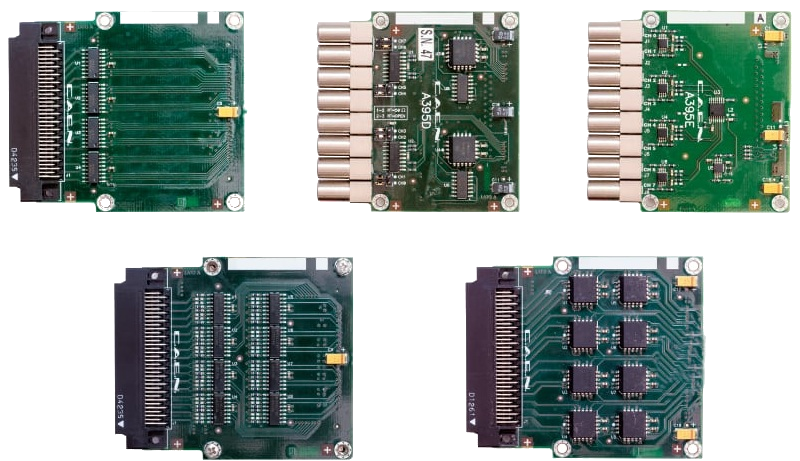

The channel interface of CAEN Mod. V2495 (V1495) and DT5495 can be freely expanded by adding up to three independent piggyback boards (there are 3 expansion slots interfaced to the User FPGA), choosing between the five available types:
- A395A 32 LVDS/ECL/PECL input channels
- A395B 32 LVDS output channels
- A395C 32 ECL output channels
- A395D 8 NIM/TTL input/output channels
- A395E 8 Analog output 16-bit channels
Therefore, the V2495 and DT5495 can achieve a maximum number of 194 I/O channels.
Piggy Back Boards Models

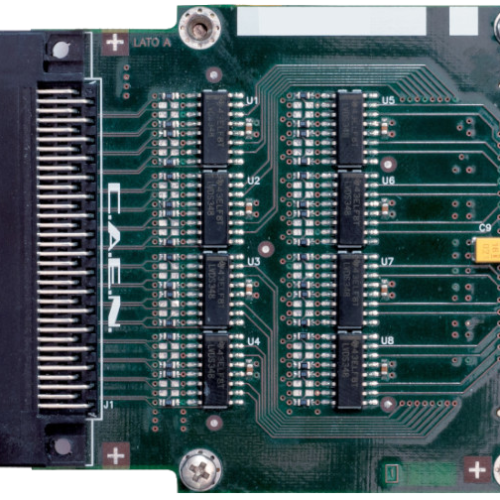

A395A

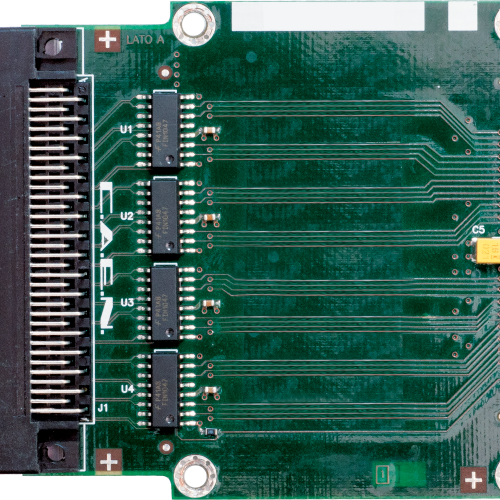

A395B
-
Piggy Back Board for CAEN Programmable logic Unit DT5495 and V2495 (V1495)
-
Up to 32 Digital Output
-
LVDS 100 Ohm RI
-
250 MHz Bandwidth
A395C
-
Piggy Back Board for CAEN Programmable logic Unit DT5495 and V2495 (V1495)
-
Up to 32 Digital Output
-
ECL
-
300 MHz Bandwidth
A395D
-
Piggy Back Board for CAEN Programmable logic Unit DT5495 and V2495 (V1495)
-
Up to 8 I/O selectable
-
NIM/TTL
-
250 MHz Bandwidth

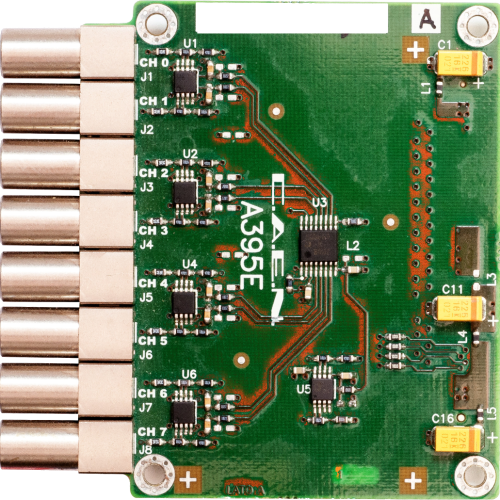

A395E
-
Piggy Back Board for CAEN Programmable logic Unit DT5495 and V2495 (V1495)
-
8 Analog Output
-
16 bit resolution
