4 Ch Reversible 8 kV/3 mA (8 W) NIM/Desktop HV Power Supply Module (USB/Ethernet/T.screen)
NDT1470

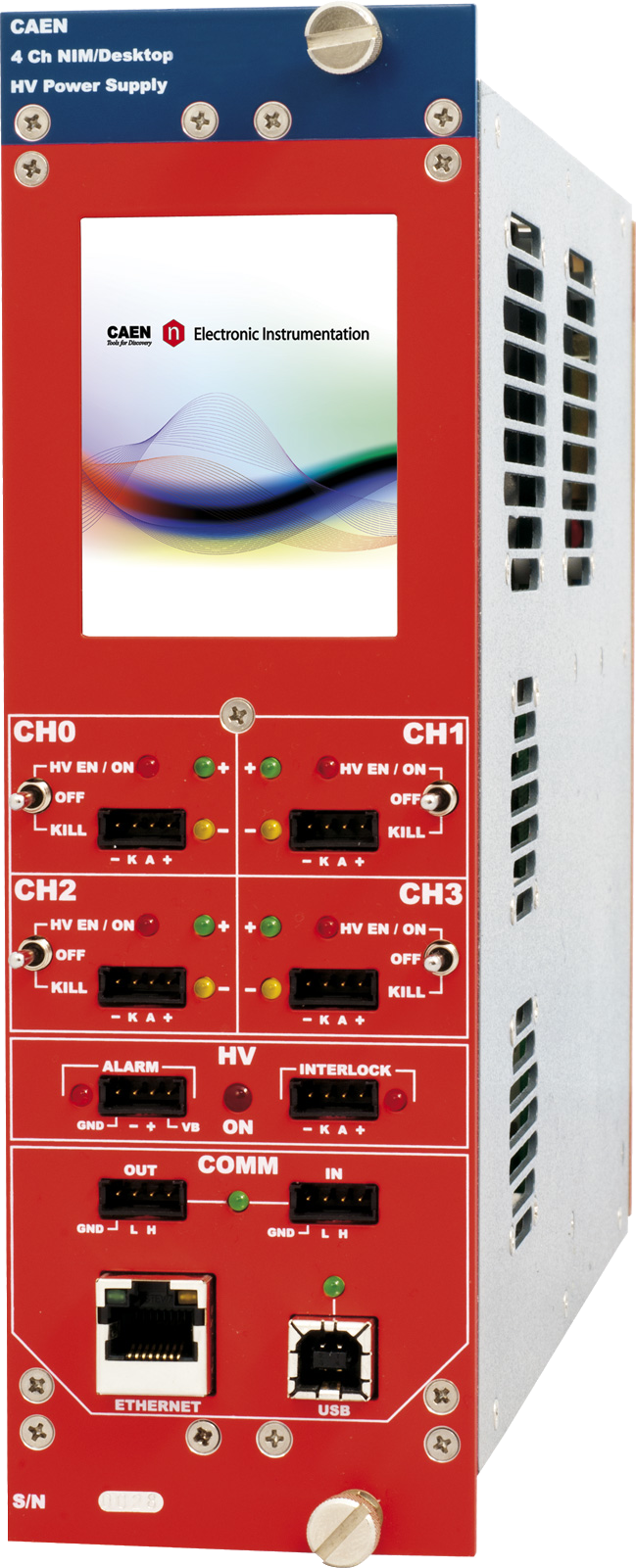

The CAEN Mod. NDT1470 provides 4 independent High Voltage channels in a double width NIM mechanics. Desktop operation (110/220V AC Powered, needless a NIM crate) is also supported. Each channel can provide a ±8 kV max voltage, a 3 mA max current and a 9 W max power (8 W max power when output voltage is larger than ±3 kV). The output polarity is independently selectable for each channel.
Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors. The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷500 V/s in 1 V/s steps. The module features 50 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 5nA.
|
SHV connector NIM double width, 4 channels Mod. NDT1470 |
Consult our connectors reference page for technical information.
Module control can take place either locally thanks to a 2.8″ Touchscreen Graphic color LCD display with a completely redesigned user interface or remotely, via USB 2.0 or Ethernet. A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 2% of set value (minimum 10V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
VMAX |
programmable VMAX protection limit. |
|
Safety Board Interlock |
common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Features
-
4 independent channels in 2U NIM module
-
220 V/110 V AC plug for desktop operation
-
8 kV / 3mA output range
-
Max output power:
-
9 W (<3 kV output)
-
8 W (>3 kV output)
-
-
Channels with individually selectable positive or negative polarity
-
SHV coaxial output connectors
-
Common floating return
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
50 nA Current monitor resolution (with x10 Imon-Zoom: 5 nA)
-
2.8″ color touch screen display
-
Local and Remote control (USB2.0/Ethernet)
-
Daisy-chain capability
-
Software Tools for easy channel management
