4 Ch Reversible 500 V/200 µA NIM HV Power Supply Module (USB)
N1419

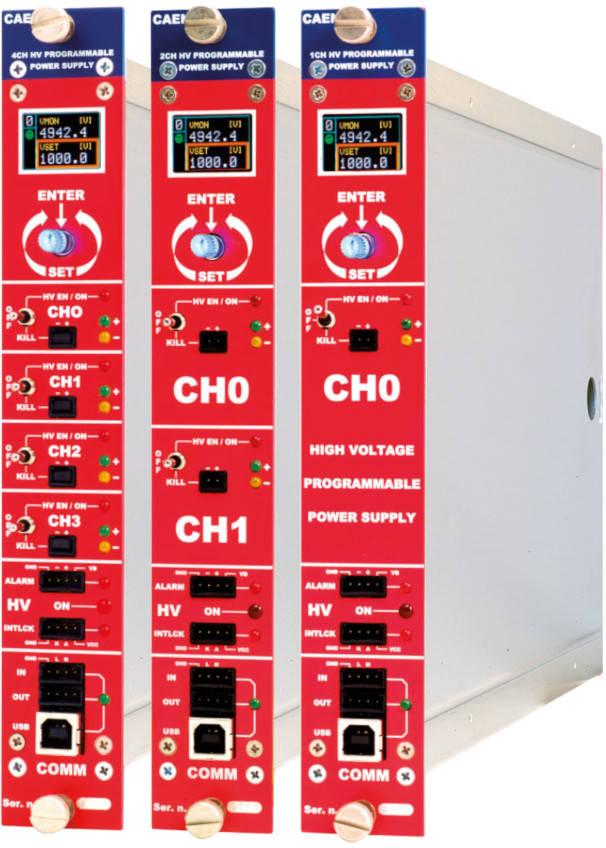

The CAEN Mod. N1419 provides 4 independent High Voltage channels in a single width NIM mechanics. Two and one channel versions (N1419A and N1419B) are also available. Each channel can provide a ±500 V max voltage, a 200 µA max current. The output polarity is independently selectable for each channel.
Channels have common floating return (common return insulated from the crate ground); HV outputs are delivered through SHV connectors.
The HV output Ramp-up and Ramp-down rates may be selected independently for each channel in the range 1÷50 V/s in 1 V/s steps. The module features 5 nA Iset/Imon resolution. Features include Imon Zoom, increasing resolution to 500 pA.
|
SHV connector NIM single width, 4 channels for Mod. N1419, N1419B (1 Ch), N1419A (2 Ch) |
Consult our connectors reference page for technical information.
Power supply control can be performed either locally, assisted by a Graphic color display or remotely, via USB, RS232 or RS485, the latter allowing to build a daisy chain network of modules N14XX. It is also controllable via TCP/IP by the Smart Fan Unit of CAEN NIM8301.
A complete set of free software Tools is available to control this unit: GECO2020 with user friendly GUI and CAEN HV Wrapper library for custom SW development. EPICS and LabVIEW also supported.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value by more than 2% of set value (minimum 1V). |
|
Overcurrent detection |
if a channel tries to draw a current larger than its programmed limit, it enters TRIP status, keeping the maximum allowed value for a programmable time (TRIP), before being switched off. |
|
Hardware VMAX |
Programmable VMAX protection limit. |
|
Safety Board Interlock |
Common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Module control can take place either locally, assisted by a Graphic colour display, or remotely, via USB (1) or RS485 (1). It is also controllable via TCP/IP (2) by the Smart Fan Unit of CAEN NIM 8301 crate:
Special versions available:
-
2 channels version (N1419A)
-
1 channel version (N1419B)
-
2U NIM module with 220 V/110 Vac plug for desktop operation, equipped with 2.8″ Touchscreen, Ethernet and USB interface (NDT1419)
-
2U NIM module equipped with 2.8″ Touchscreen, Ethernet and USB interface (N1419ET)
Available Options:
-
A1480 DC Input Power Equalizer.
N14xx modules are provided with a USB VCP interface and can be programmed via PC by connecting the PC USB port with the N14xx USB B-type port; the featured controller (FT232BM chip) requires a driver available on this page or at www.ftdichip.com
Features
-
4 independent channels in 1U NIM module (2 & 1 channel versions also available)
-
500 V / 200 µA output range
-
Channels with individually selectable positive or negative polarity
-
SHV output connectors
-
Common floating return
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
5 nA Current monitor resolution (with x10 Imon-Zoom: 500 pA)
-
Graphic color display
-
Local and Remote control (USB2.0/RS485/RS232)
-
Daisy-chain capability
-
Optional DC Input Power Equalizer
-
Software Tools for easy channel management
