Dual OR 12 IN - 2 OUT
N113

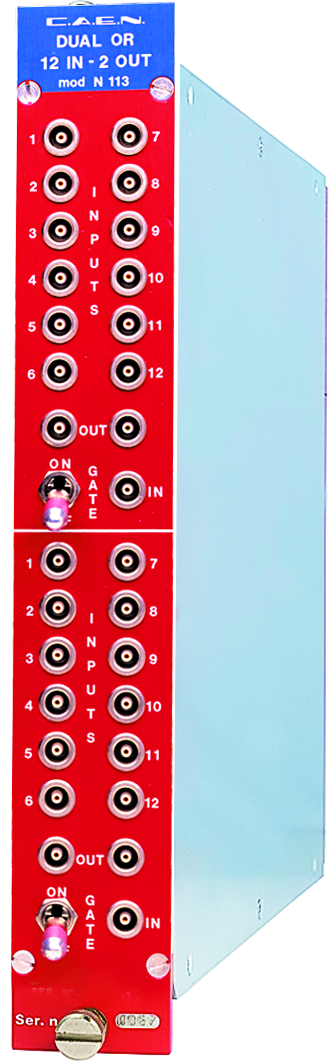

The Mod. N113 is a one unit wide NIM Module, with two 12 input – 2 output OR sections.
Via 4 internal jumpers the module can be converted to a single 24 OR imputs with separate or common gate control. All input/output signals are std. NIM.
The outputs can be “gated” via two front panel GATE inputs with relevant switches.
Features
- 2 independent OR sections, 12 inputs each
- 1 GATE signal per section
- Cascadeable sections
- Less than 10 ns input/output delay
