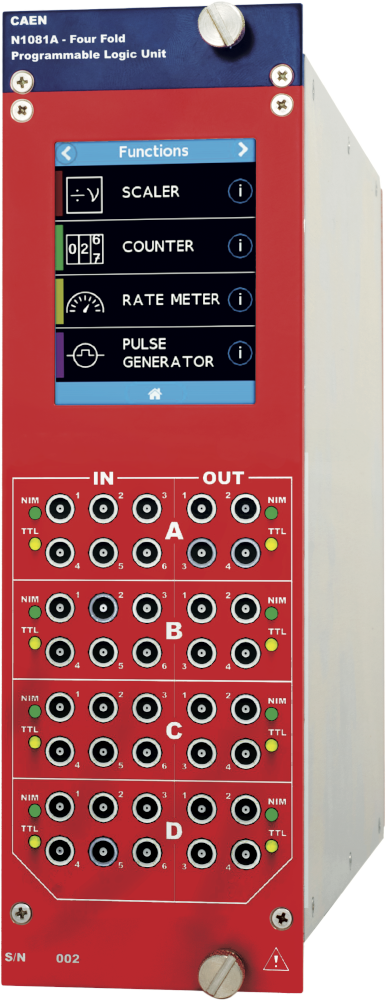

NIM Four-Fold Programmable Logic Unit
N1081A
The N1081A is a laboratory tool that incorporates in a single NIM module the most common functionalities that you need to implement the logic capabilities of your experiment.
The module is organized in four sections, with 6 inputs and 4 outputs each (selectable impedance) accepting TTL/NIM signals. Each section is configurable independently according to one of the available pre-programmed functions, like scaler, counter, time stamping, digital pulse generator, etc. The section programming can be done using the 2.8” touch screen display or via the web-interface. Each section integrates a programmable voltage threshold for analog input signals and an asynchronous Gate&Delay. This allows the user to trim at best the needed parameters and to perform accurate measurements.
On the touch screen interface, each function is associated to a widget, for quick configuration and monitor purposes, and an online help with cabling instructions is directly accessible on the display.
The web-interface allows the user to remotely configure the instrument, monitor the functions output, dump data on file or history chart and access to the most advanced features, like the logic analyser and the configuration of advanced functions. No software installation is required!
Developed in collaboration with
Features
-
Double-width NIM unit
-
Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator.
-
4 independent sections, each with:
-
6 NIM/TTL input
-
4 NIM/TTL output
-
-
Input stage with Gate&Delay and Voltage Threshold for analog signals
-
2.8” touch screen display with user-friendly widgets to configure each section and monitor real-time data
-
Ethernet (1 Gbps) and USB2.0 connectivity
-
Web-based Graphical User Interface to remotely control the module and access advanced features
-
Software Development Kit available for free
