Available in a fully equipped option: SY4527 Premium Version
-
Communications via Gigabit Ethernet
-
Communications via Wi-Fi (optional)
-
OPC Server to ease integration in DCS
-
Fast, accurate setting and monitoring of channel parameters
-
10.4″ or 5.7″ colour touchscreen LCD (optional)
-
Live insertion of boards
-
Advanced Trip handling
-
Hardware current protection
-
Modular and expandable power supply
-
Secure access to the system via Intranet
-
Application software for remote control
-
Graphical web interface
-
Easy firmware upgrading
Mainframes
Universal Multichannel System
Mainframes

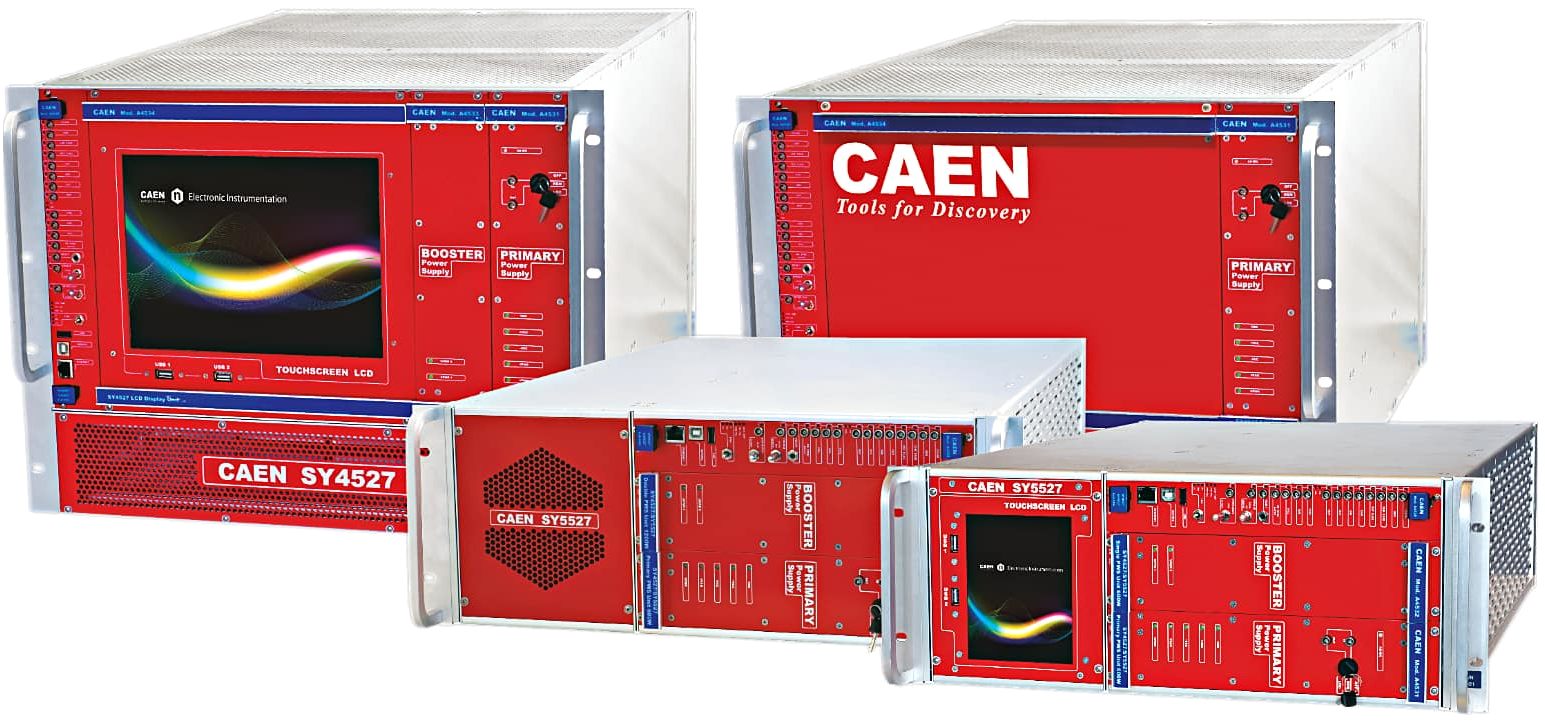

Reliability, Modularity, Compatibility, Connectivity and User-Friendly: These are the concepts upon which the CAEN SYx527 and SYx527LC Mainframe Systems were developed. Our mainframe systems are specifically designed to provide ideal V/I output and monitoring for any detector technology employed in Modern Physics. Whether you are using SiPM or RCP, Wire Chambers or PMT, HPGe or GEM, our mainframes systems have you covered.The flexible and modular nature of the SYx527 and SY527LC has resulted in a Mainframe System which can be customized for a very wide range of experimental situations, from the smallest test-bench to the largest international experiment.The line consists of four different mainframe versions:

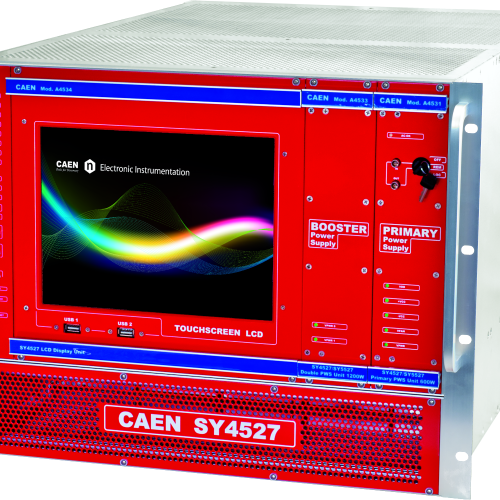

- The SY4527 is a 19” wide/8U high mainframe which can house up to 16 HV/LV boards and provide up to 4200W power output.

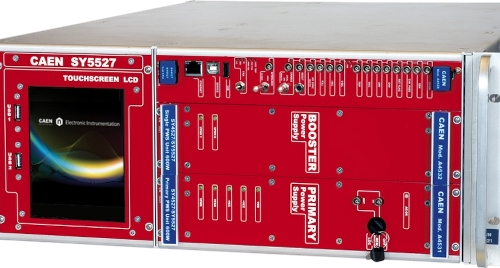

- The SY5527 is a 19” wide/4U high mainframe which can house up to 6 boards and provide up to 1800W power output.

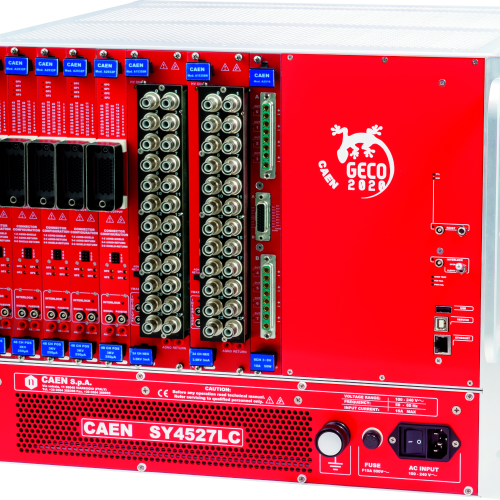

- The SY4527LC is a 19” wide/8U high mainframe which can house up to 10 boards and provide up to 600W power output. (~20 cm shorter than the standard version).

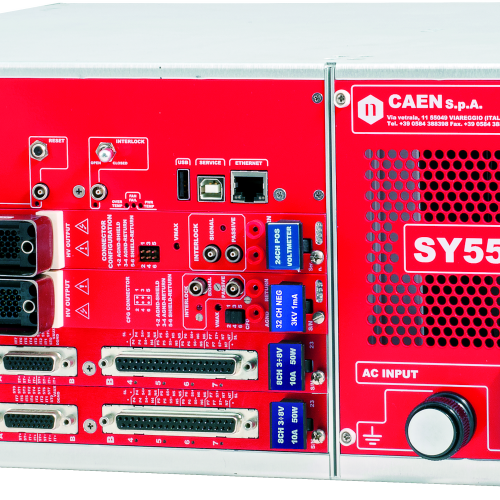

- The SY5527LC is a 19” wide/4U high mainframe which can house up to 4 boards and provide up to 400W power output. (~20 cm shorter than the standard version).
Features SYx527
- Modular design makes upgrade and maintenance simple and straightforward
- The modular CPU is available in three versions (BASIC, ADVANCED, FULL), allowing the user to customize the interface to experimental specifications
- Control options include REMOTE (Gigabit Ethernet or optional Wi-Fi) and LOCAL (optional LCD Color Touchscreen)
- Backward compatible with all boards (power supplies, distributors, branch controllers) developed for the previous SY1527 / SY2527 Mainframe Systems
- Available in a PREMIUM edition which includes features such as LCD Touchscreen, Wi-Fi Connectivity and Advanced Software suite
- Includes flexible, powerful, GUI-based Control Software (GECO2020)
- Advanced Trip Handling
Hardware Current and Voltage Protection - Reset and Interlock Control
- Modular Power Supply supports easy expansion and upgrade
- Simple, User-Friendly process to upgrade firmware
- Responsive and accurate set & monitoring of channel parameters
- Multi-Mainframe System control capability via GECO2020 control software
- Intranet supported access for enhanced security
- Connectivity via Gigabit Ethernet or Wi-Fi
- Integrated EPICS IOC
- OPC Server for simple integration into Detector Control System (DCS)
- Java-based Web-browser control option for uncomplicated connectivity and control
Features SYx527LC
Mainframes Models
SY4527
SY4527LC
-
Houses up to 10 boards
-
More compact and handy
-
~20 cm shorter than the standard version
-
Communications via Gigabit Ethernet
-
Communications via Wi-Fi (optional)
-
OPC Server to ease integration in DCS
-
Fast, accurate setting and monitoring of channel parameters
-
Live insertion of boards
-
Advanced Trip handling
-
Hardware current protection
-
Secure access to the system via Intranet
-
Application software for remote control
-
Graphical web interface
-
Easy firmware upgrading
SY5527
-
Available in a fully equipped option: SY5527 Premium Version
-
Communications via Gigabit Ethernet
-
Communications via Wi-Fi (optional)
-
OPC Server to ease integration in DCS
-
Fast, accurate setting and monitoring of channel parameters
-
5.7″ colour touchscreen LCD (optional)
-
Live insertion of boards
-
Advanced Trip handling
-
Hardware current protection
-
Modular and expandable power supply
-
Secure access to the system via Intranet
-
Application software for remote control
-
Graphical web interface
-
Easy firmware upgrading
SY5527LC
-
Houses up to 4 boards
-
More compact and handy
-
~20 cm shorter than the standard version
-
Communications via Gigabit Ethernet
-
Communications via Wi-Fi (optional)
-
OPC Server to ease integration in DCS
-
Fast, accurate setting and monitoring of channel parameters
-
Live insertion of boards
-
Advanced Trip handling
-
Hardware current protection
-
Secure access to the system via Intranet
-
Application software for remote control
-
Graphical web interface
-
Easy firmware upgrading
Software
A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:
 |
CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application. |
 HiVoCS |
HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software. |
 EPICS IOC |
Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol. |
 CAEN HV Wrapper Library |
It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products |
 GECO2020 |
CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device. |
