Low Voltage Boards

The family of low voltage (LV) power supplies includes single width boards housing 6 or 8 individual full floating channels. The boards are designed to provide maximum voltages from 8 to 64 V (A255x), with up to 0.2 mV set and monitor resolution and can provide output power up to 60W per channel.

All the boards are provided with both current and voltage protections. If overcurrent occurs, the channel is signaled to be in “overcurrent” the relevant channel can be programmed either to turn off after a programmable trip time or to remain on and to provide the maximum allowed current. This feature allows the module to perform as a current generator.

The voltage ramp rates may be set independently for each channel. Moreover, the individual floating channels allow on-detector grounding, thus allowing to reduce the noise level. Output channels are delivered through DB37 or D-sub 8 connectors.

  • 8 independently controllable full floating channels

  • Up to 64 V

  • Up to 60 W Max channel output power

  • High resolution on voltage set

  • Programmable TRIP parameter

  • Programmable ramp up / down

  • Current generator operation in overcurrent condition

  • Overcurrent programmable protections

  • Individual remote sense lines

  • Up to 0.2 mV voltage monitor resolution

Low Voltage Boards Models

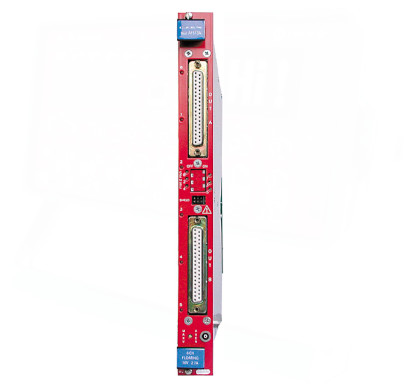

A1513B
Obsolete

A1513B

  • 6 independently controllable Low Voltage channels
  • 10 V / 2.7 A output range
  • Individual Floating Channels
  • DB37 connectors
  • Individual remote sense lines
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

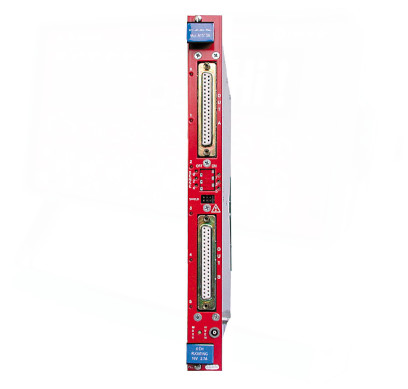

A1516B
Obsolete

A1516B

  • 6 independently controllable Low Voltage channels
  • 15 V / 1.5 A output range
  • Individual Floating Channels
  • DB37 connectors
  • Individual remote sense lines
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

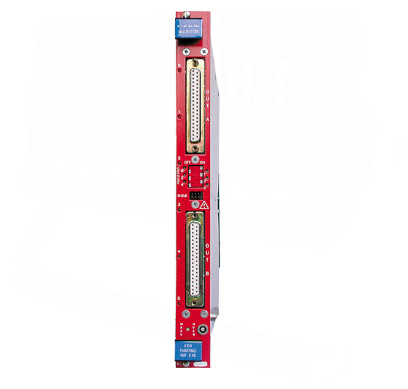

A1517B
Obsolete

A1517B

  • 6 independently controllable Low Voltage channels
  • 7 V / 4 A output range
  • Individual Floating Channels
  • DB37 connectors
  • Individual remote sense lines
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management
A1518B
Obsolete

A1518B

    • 6 independently controllable Low Voltage channels
    • 4.5 V / 6 A output range
    • Individual Floating Channels
    • DB37 connectors
    • Individual remote sense lines
    • Low ripple
    • Under/over-voltage alert, overcurrent and max. voltage protection
    • Interlock logic for unit enable
    • Software Tool for easy channel management

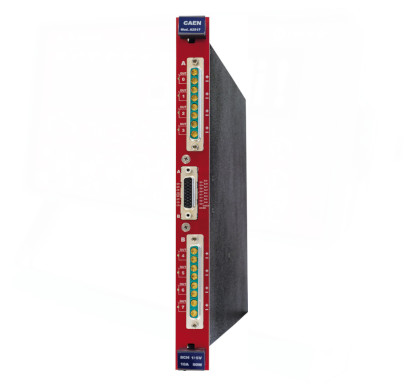

A2517
Obsolete

A2517

  • 8 independently controllable Low Voltage channels

  • 1÷5 V output voltage and 15 A maximum current (50 W)

  • Individual Floating Channels

  • 8 pin D-Sub connectors

  • Individual remote sense lines

  • Full Digital PID Control Loop

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management

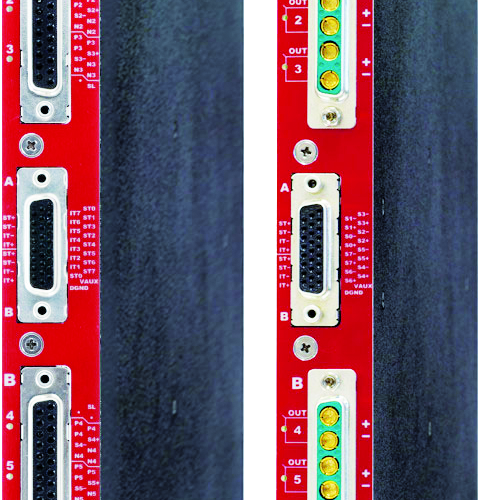

A2519
Obsolete

A2519

  • 8 independently controllable Low Voltage channels

  • 5÷15 V output voltage and 5 A maximum current (50 W)

  • Individual Floating Channels

  • DB37 or 8 pin D-Sub connectors

  • Individual remote sense lines

  • Full Digital PID Control Loop

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management

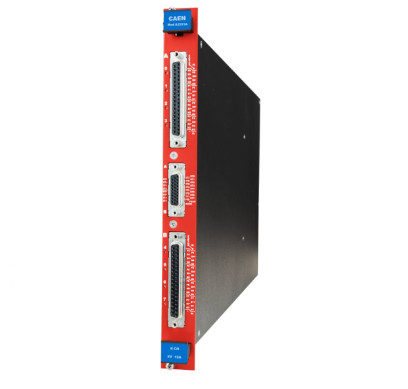

A2551

A2551

  • 8 independently controllable Low Voltage channels
  • 0÷8 V output voltage and 12 A maximum current (60 W)
  • Individual Floating Channels
  • DB37 or 8 pin D-Sub connectors
  • Individual remote sense lines (A2551A only)
  • Low ripple
  • Under/over-voltage alert, overcurrent and max. voltage protection
  • Interlock logic for unit enable
  • Software Tool for easy channel management

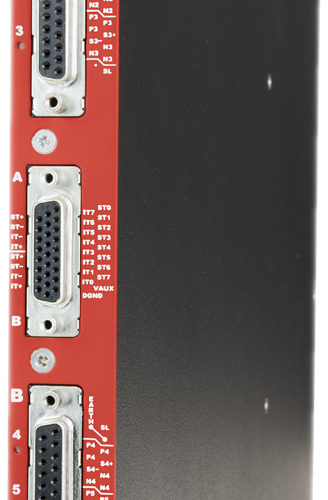

A2552

A2552

  • 8 independently controllable Low Voltage channels

  • 0÷16 V output voltage and 6A maximum current (60 W)

  • Individual Floating Channels

  • DB37 or 8 pin D-Sub connectors

  • Individual remote sense lines (A2552A only)

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management
A2553

A2553

  • 8 independently controllable Low Voltage channels

  • 0÷32 V output voltage and 3A maximum current (60 W)

  • Individual Full Floating Channels

  • DB37 or 8 pin D-Sub connectors

  • Individual remote sense lines (A2553A only)

  • Low ripple

  • Under/over-voltage alert, overcurrent and max. voltage protection

  • Interlock logic for unit enable

  • Software Tool for easy channel management

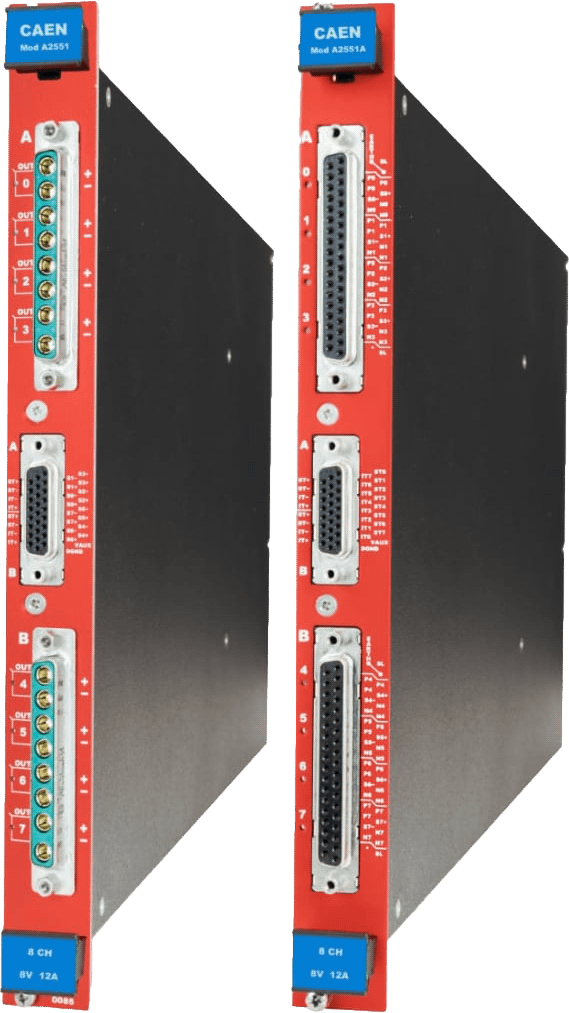

A2551 / A2552 / A2553 / A2554

The A2551, A2552, A2553 and A2554 are single width (5 TE wide) boards housing 8 LV full floating channels each. The boards provide 8V / 12A, 16 V / 6 A, 32 V / 3 A and 64 V / 1.5 A outputs with up to 0.2 mV, monitor resolution. The Maximum channel power is 60 W.
Channels can be connected in parallel with modularity 2  to obtain higher output power. Each output channel is provided with individual remote sensing lines to compensate for the voltage drop over the connection cables. Output channels are delivered through DB37 or 8 pin D-Sub connectors.

Universal Multichannel System - Mainframes

Modularity, Compatibility, Connectivity, Usability and Solidity are the keywords of the system design. The Mainframes have been specifically designed to power all detector technologies found in modern Physics Experiments, such as photomultipliers, wire chambers, streamers tubes, silicon detectors and others.

The systems are modular, flexible and match not only the requirements of major experiments with large number of channels but also the practical needs of test laboratories, where simple manual operations on a limited number of channels are often desired.

Mainframes

Software

A complete set of Software Tools is available (free download) to control CAEN Universal Multichannel Power Supply Systems, from low level libraries to graphical application software:

 CAEN, in collaboration with CERN, has developed an OPC server which allows control of its power supply systems by any OPC compliant client application.
HiVoCS HiVoCS is a Web Interface available on any SY4527-SY5527 CPU. This Interface can be accessed directly via browser without installing any additional software.
EPICS IOC Mainframes CPUs integrates an EPICS Input / Output Controller (IOC) that provides access to the Process Variables using the Channel Access Protocol.
CAEN HV Wrapper Library It is a set of ANSI C functions bundled in a library, providing the software developer an unified software interface for the control of all the CAEN Power Supply products
GECO2020 CAEN General Control SW for High Voltage Boards and Systems. it can manage and control CAEN HV power supplies in any form factor as if they were an unique device.
