Features

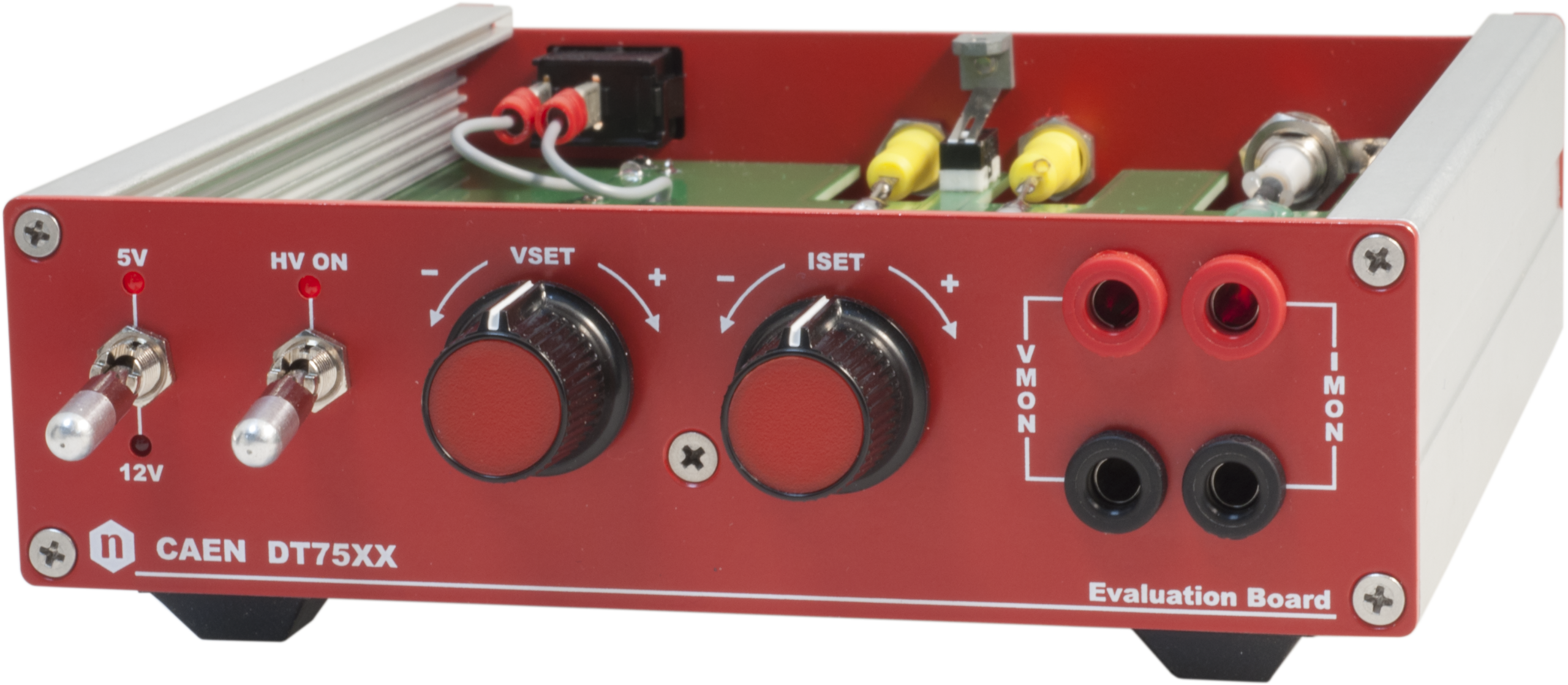

• Desktop Module for PCB High Voltage Power Supply A750x family
• SHV HV Output Connector
• Small form factor 154x164x50 mm3 (WxLxH)
• Powered by 100-230Vac
• Six models of A750x are available:
  • A7501 (2100 V / 100 μA)
  • A7502 (2100 V / 100 μA)
  • A7504 (4000 V / 100 μA)
  • A7505 (1600 V / 500 μA)
  • A7508 (800 V / 50 μA)
  • A7511 (1100 V / 1 mA)
• High operating temperature range:
  • A7501: -40 °C ÷ +70 °C
  • A7502: -40 °C ÷ +70 °C
  • A7504: -10 °C ÷ +50 °C
  • A7505: -55 °C ÷ +80 °C
  • A7508: -40 °C ÷ +70 °C
  • A7511: -10 °C ÷ +50 °C
• Positive or negative polarity
