Desktop, Aluminium case
-
220 x 80 x 44 mm3
-
Weight ~1.1 kg
-
DB37 Male input connectors
-
Radiall SHV output connectors (HV coaxial)
-
Up to 500 V
HV Adapters
Power Supplies Accessories
HV Adapters

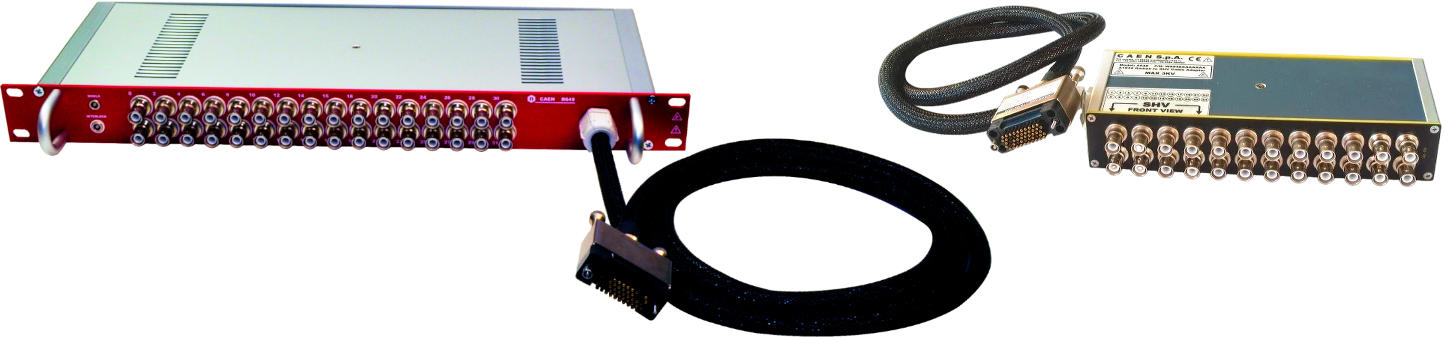

A1015x – A64x – R64x is a family of cable adapter that allows to adapt the high density SY boards connectors (DB37 and Radiall 52) to the SHV one. Available in Desktop and Rack form factor and can accommodate 12, 24, 32, 36 or 48 channels.
Features
- DB37 and Radiall to SHV
- INTERLOCK and SHIELD connection provided
- Desktop and Rack form factor
HV Adapters Models

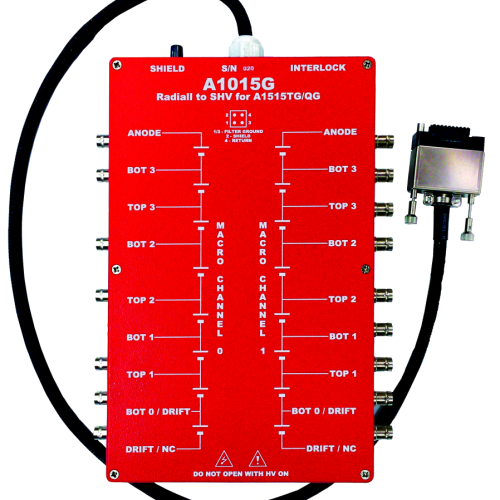

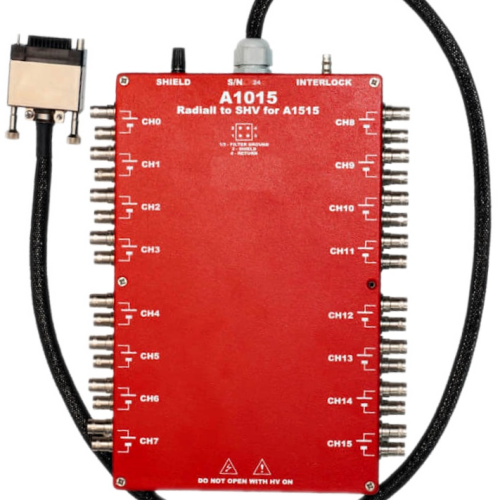

A1015

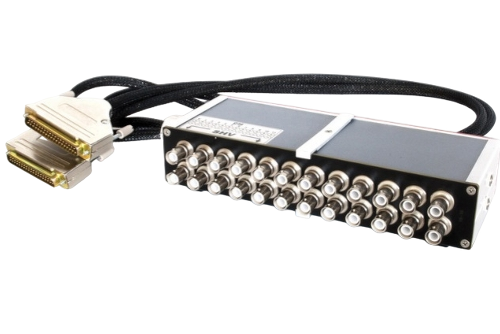

A646

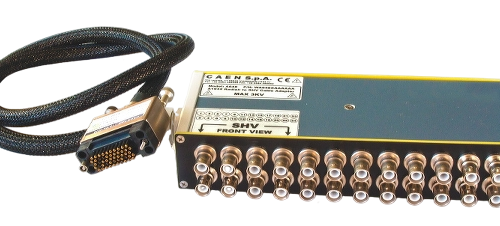

A647
-
Desktop, Aluminium case
-
220 x 80 x 44 mm3
-
Weight ~1.1 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 8 kV
A648
- Desktop, Aluminium case
- 220 x 80 x 44 mm3
- Weight ~2 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 3 kV

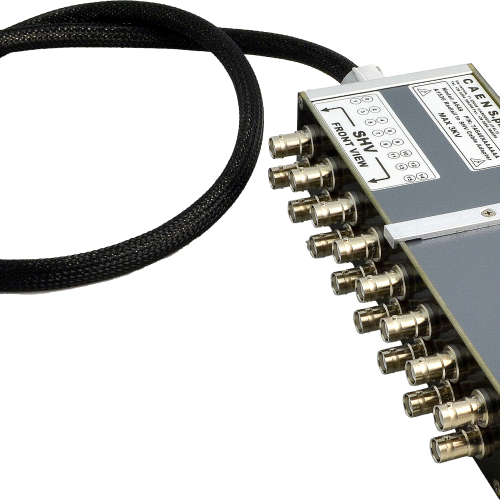

A649
- Desktop, Aluminium case
- 220 x 80 x 44 mm3
- Weight ~1.7 kg
- 52-pin Radiall input connector
- Radiall SHV output connectors (HV coaxial)
- Up to 3 kV

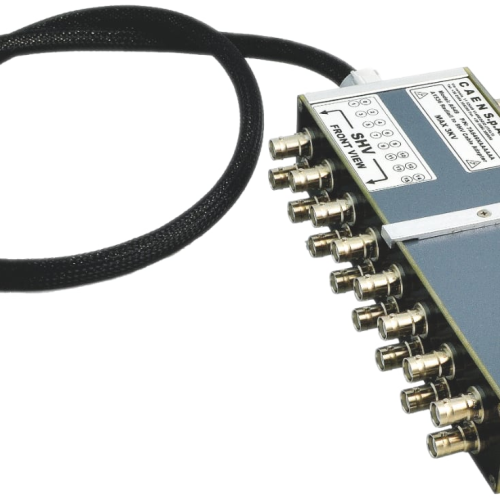

A649B
-
Desktop, Aluminium case
-
220 x 80 x 44 mm3
-
Weight ~1.7 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 8 kV
R647
-
19” rack, Aluminium case
-
490 x 160 x 44 mm3
-
weight ~1.4 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 8 kV

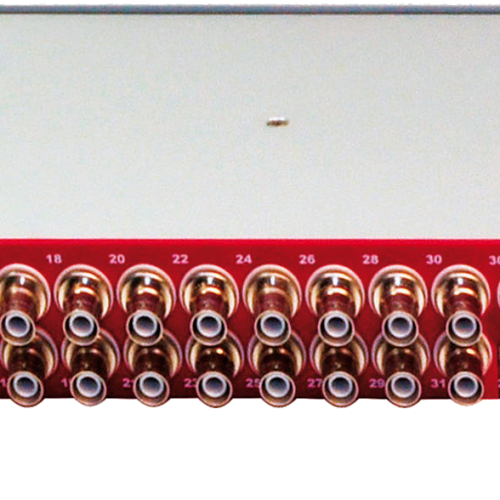

R648
-
19” rack, Aluminium case
-
490 x 160 x 44 mm3
-
weight ~2.3kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 3 kV

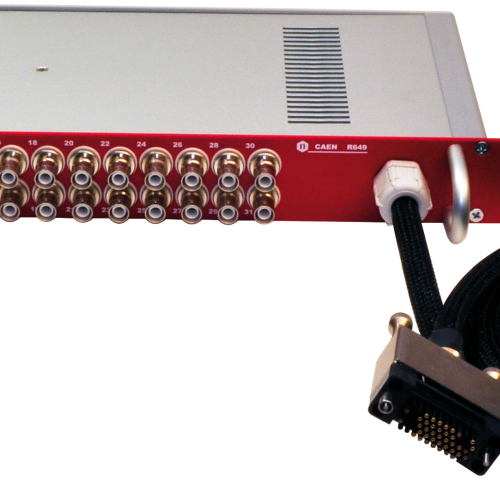

R649
-
19” rack, Aluminium case
-
490 x 160 x 44 mm3
-
weight ~2.0 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 3 kV
R649B
-
19” rack, aluminium case
-
490 x 160 x 44 mm3
-
weight ~2.0 kg
-
52-pin Radiall input connector
-
Radiall SHV output connectors (HV coaxial)
-
Up to 8 kV
