Factory configured modular system
-
5 free slots for power supply modules
-
3U x 19″ x 35 cm crate size
-
Floating channels
-
Local and Remote Control
-
Remote control via Ethernet, USB, CANBUS and RS232
-
Max output power: 2.5kW @ 220Vac, 1.5kW @ 115Vac
-
Up to 8 independent channels
-
Low noise
-
Available Modules:
-
2÷7V 550W (110A @5V) 1 slot
-
2÷7V 1100W (220A @5V) 2 slot
-
±7÷16V 550W (23A @±12V) 1 slot
-
±7÷16V 1100W (46A @±12V) 2 slot
-
±20÷28V 550W (11A @±24V) 1 slot
-
±20÷28V 1100W (22A @±24V) 2 slot
-
10 mV Voltage Set/Monitor resolution
-
100/200 mA Current Set/Monitor resolution (2÷7V)
-
20/40mA Current Set/Monitor resolution (±7÷16V/±20÷28V)
-
Individual channel ON/OFF and TRIP
-
Sense wires for the voltage drop recovery
-
4 Analog Input, 4 Digital Input, 4 Digital Output
-
Fans embedded for vertical cooling
-

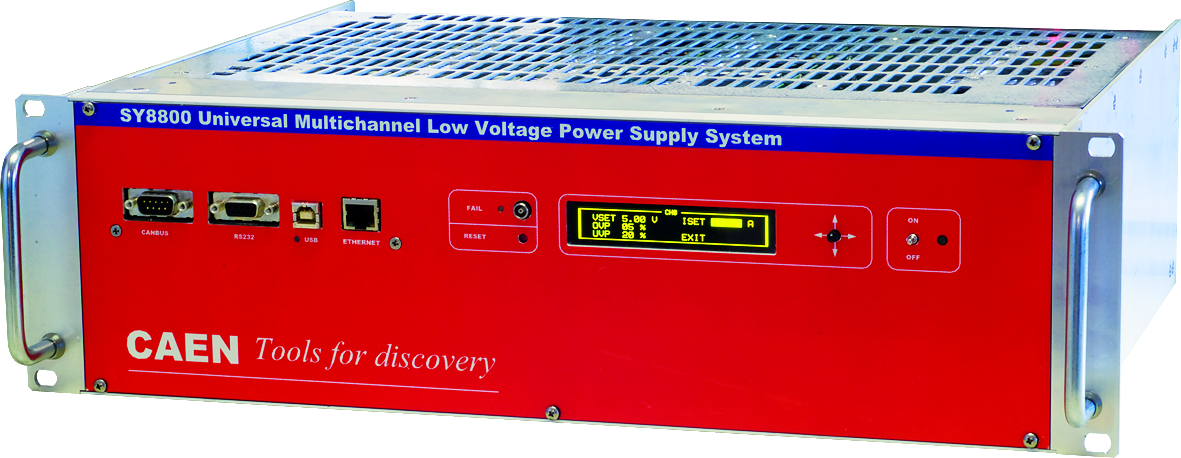

High Power Low Voltage System
Low Voltage Power supplies
High Power Low Voltage System
CAEN High Power Low Voltage Systems deliver reliable, high-performance power solutions for demanding applications requiring low voltage and high current. Designed for flexibility and scalability, these systems combine compact design, modular architecture and advanced control features to meet the needs of research laboratories, industrial test environments and complex multi-channel setups. With both local and remote control capabilities and seamless system integration, CAEN ensures precision, stability and ease of operation, even in the most challenging conditions.
