Vehicle Mountable Gamma Spectrometric Mapping System

GAMON MOBILE

Home Digital SpectroscopyRadiation Monitoring SystemsSecurity Mobile Mapping Systems GAMON-Mobile

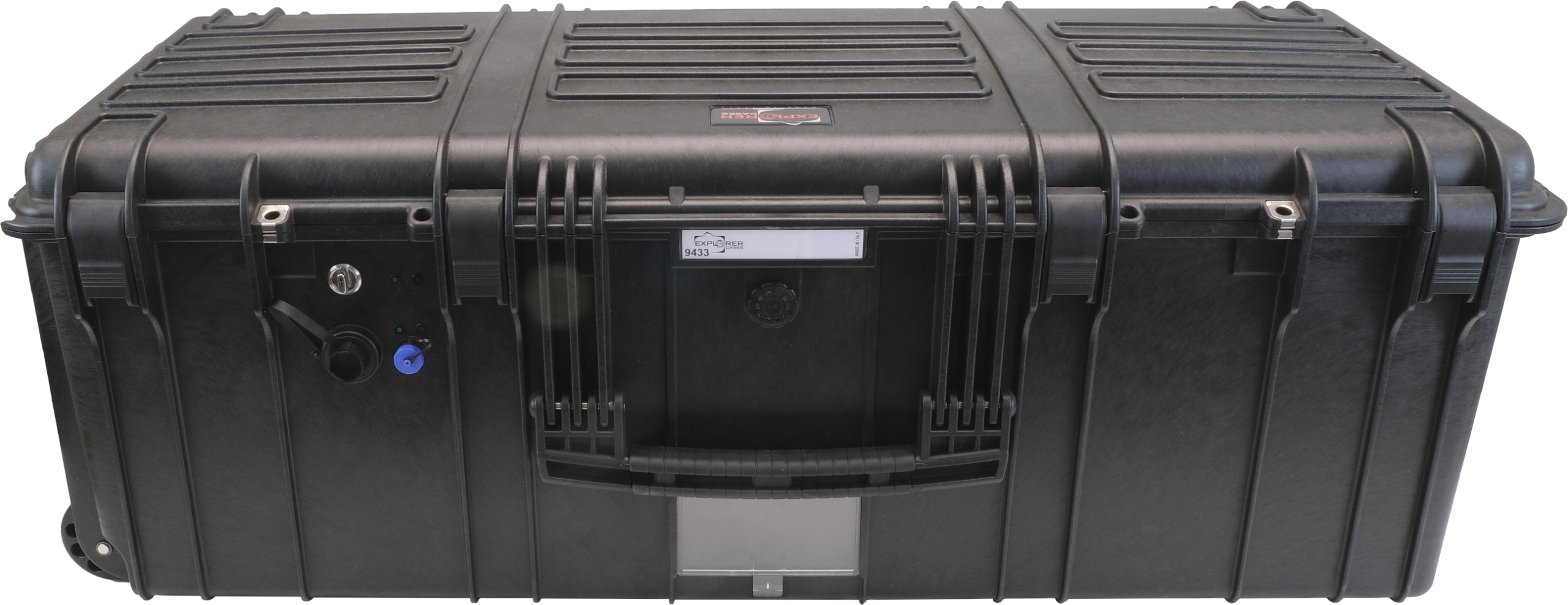

GAMON Mobile is a high-efficiency detection system designed to perform radionuclide identification from a moving vehicle such as e.g., a car, helicopter or boat. The system is very well suited to be operated on-field to assess rapid threats and to monitor large areas via mobile mounting/deployment. It can identify radionuclides and differentiate them by category, e.g., NORM, Medical, Industrial. GAMON Mobile is ideal for scanning sensitive areas, entry points and strategic areas such as embassies, EXPO events, critical infrastructure, airports, railway stations. GAMON Mobile is composed of spectrometric and dosimetric units.
The GAMON Mobile spectrometer performs automatic isotope identification and the isotope related dose rate evaluation. Real-time data processing and defined isotope-based alarm allow GAMON Mobile to detect the presence of artificial nuclides more effectively and in a shorter amount of time than traditional dose meters.
The system can be used in multiple scenarios for gamma radionuclide identification in case of incident mitigation, for access point security or environmental monitoring including both Gamma and Neutron Alarms.

Operative Applications:

  • Wide Area radiological threat search by ground, air vehicles and water vessels

  • Emergency and first-response applications for an easy area assessment

  • Sensitive area (e.g., airports and railway stations) survey and control

  • Georeferenced measurements for radioactive mapping


Features

  • Discrete housing for outdoor monitoring in public areas

  • Spectroscopic and dosimetry probes for the identification of radionuclide gamma emitters

  • Neutron probe for detection of neutron emitters

  • Extended operation with rechargeable and hot swap battery for more than 8-hour continuous acquisition

  • Wide data storage with the capability of saving more than 1-month continuous data acquisition

  • Web interface for fast and easy system and isotope-based alarm configurations

  • Georeferenced measurement map for real time data visualization


Ordering Options

Code Description
WSGMOBNA1AAD

GAMON-MOBILE NaI 1 l, GM Dosimeter and Li-6 Neutron Detector



(In design)

RoHS
WSGMOBNA4AAA

GAMON-MOBILE NaI 4L



(In design)

RoHS
WSGMOBNA4AAD

GAMON-MOBILE NaI 4 l, GM Dosimeter and Li-6 Neutron Detector



(In design)

RoHS
Data Sheet Download Compare

GAMON-Mobile: Data Sheets

Name
Revision
Format
File Size
Last Update
GAMON Mobile - High efficiency mobile unit for radionuclides identification
7
pdf
0.86 Mb
09/05/2023

GAMON-Mobile: Download

Brochures / Flyers

Name
Revision
Format
File Size
Last Update
Gamon Platform - Global Measurement Platform for Nuclear Safety and Security
5
pdf
17.68 Mb
30/01/2024
Security - CBRN, industrial and civil scenario
0
pdf
0 Mb
14/06/2022
NORM & TENORM Monitoring - solution for Oil & Gas HSE challenges
1
pdf
8.28 Mb
13/11/2023
Security Operative Scenarios
1
pdf
15.78 Mb
30/01/2024
