Fan In – Fan Out Units

Digital

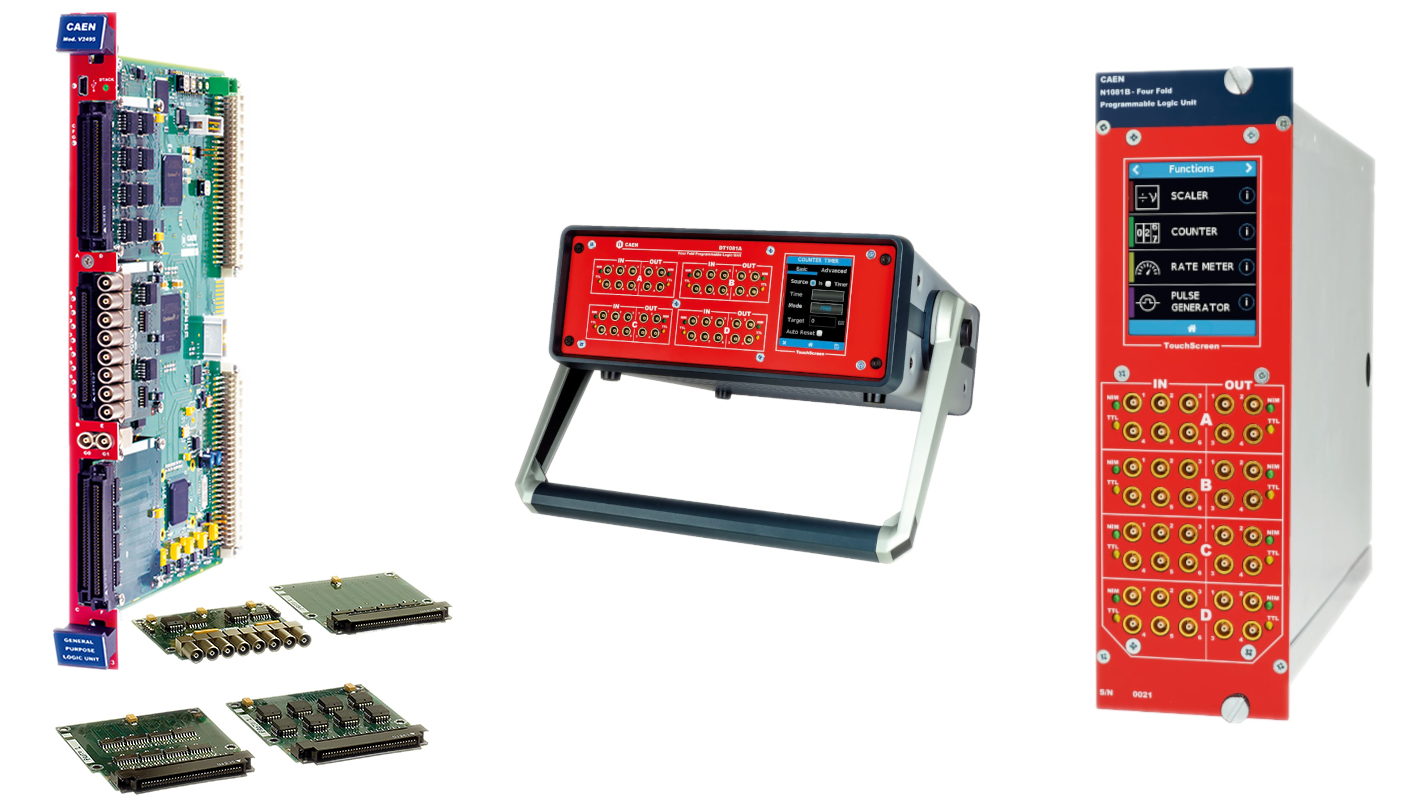

Fan In - Fan Out Units

Fan In – Fan Out Units Models

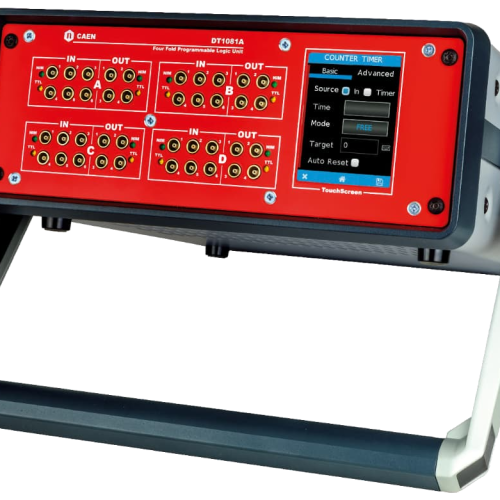

DT1081B
New

DT1081B

  • Handy Desktop form factor

  • Wide range of user-selectable functionalities: logic functions, counting, timing, digital pulse generator

  • 4 independent sections, each with:

    • 6 NIM/TTL/ANALOG input

    • 4 NIM/TTL output

  • Input stage with Gate&Delay and Leading Edge Discriminator for analog input signals

  • Output stage with Monostable capability

  • 2.8” touch screen display with user-friendly widgets to configure each section and monitor real-time data

  • Ethernet (1 Gbps) and USB2.0 connectivity

  • Web-based Graphical User Interface to remotely control the module and access advanced features
DT5495

DT5495

  • User Programmable FPGA

  • Compact Desktop form factor

  • Up to 162 inputs, up to 130 outputs

  • LVDS/ECL/PECL/NIM/TTL

  • 3 expansion slots for piggyback board:

    • A395A 32 LVDS/ECL/PECL input ch.

    • A395B 32 LVDS output ch.

    • A395C 32 ECL output ch.

    • A395D 8 NIM/TTL input/output ch.

    • A395E 8 Analog output 16bit ch.

  • 32 independent programmable Gate and Delay Generator

  • Ethernet and Mini-USB 2.0 Connection

  • Available in VME version V2495

  • Supported by SCI-Compiler software tool
N454

N454

  • 4 independent sections with 4 inputs each
  • OR output with fan out of four per section
  • Possibility of cascading channels to form dual 8-fold fan-in/ fan-out
  • Input/output delay less than 7 ns
  • 100 MHz max. input frequency
N625

N625

  • Four independent sections

  • Bipolar inputs

  • Four 4 Input + 4 Output Fan in/Fan out sections

  • 1 Channel Discriminator featured

  • Inverting or non-inverting mode independently selectable on each section

  • 100 MHz bandwidth
V1495
Obsolete

V1495

  • User customisable FPGA Unit (with preloaded demo code)
  • LVDS/ECL/PECL inputs (differential)
  • 64 inputs, expandable to 162 (with 32 outputs)
  • 32 outputs, expandable to 130 (with 64 inputs)
  • 405 MHz maximum frequency supported by clock tree for registered logic
  • I/O delay smaller than 15 ns (in Buffer Mode)
  • Programmable 3-color LED
  • Libraries (C and LabView) and Software tools for Windows and Linux
V2495

V2495

  • User customisable FPGA Unit

  • LVDS/ECL/PECL inputs (differential)

  • 64 inputs, expandable to 162 (with 32 outputs)

  • 32 outputs, expandable to 130 (with 64 inputs)

  • 32 independent programmable Gate and Delay Generators

  • 3 expansion slots for piggyback board

  • Mini-USB 2.0 Connection

  • Available in Desktop version DT5495
