Single slot SYx527 board

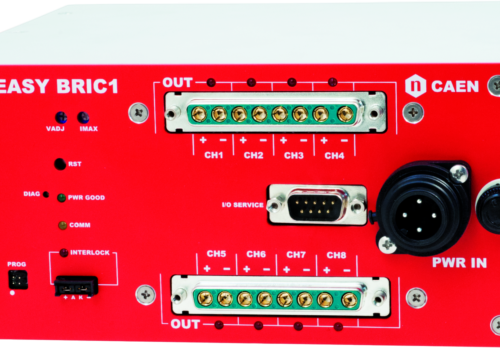

Up to 8 EASY Bric Modules controlled (2 water cooled crates)

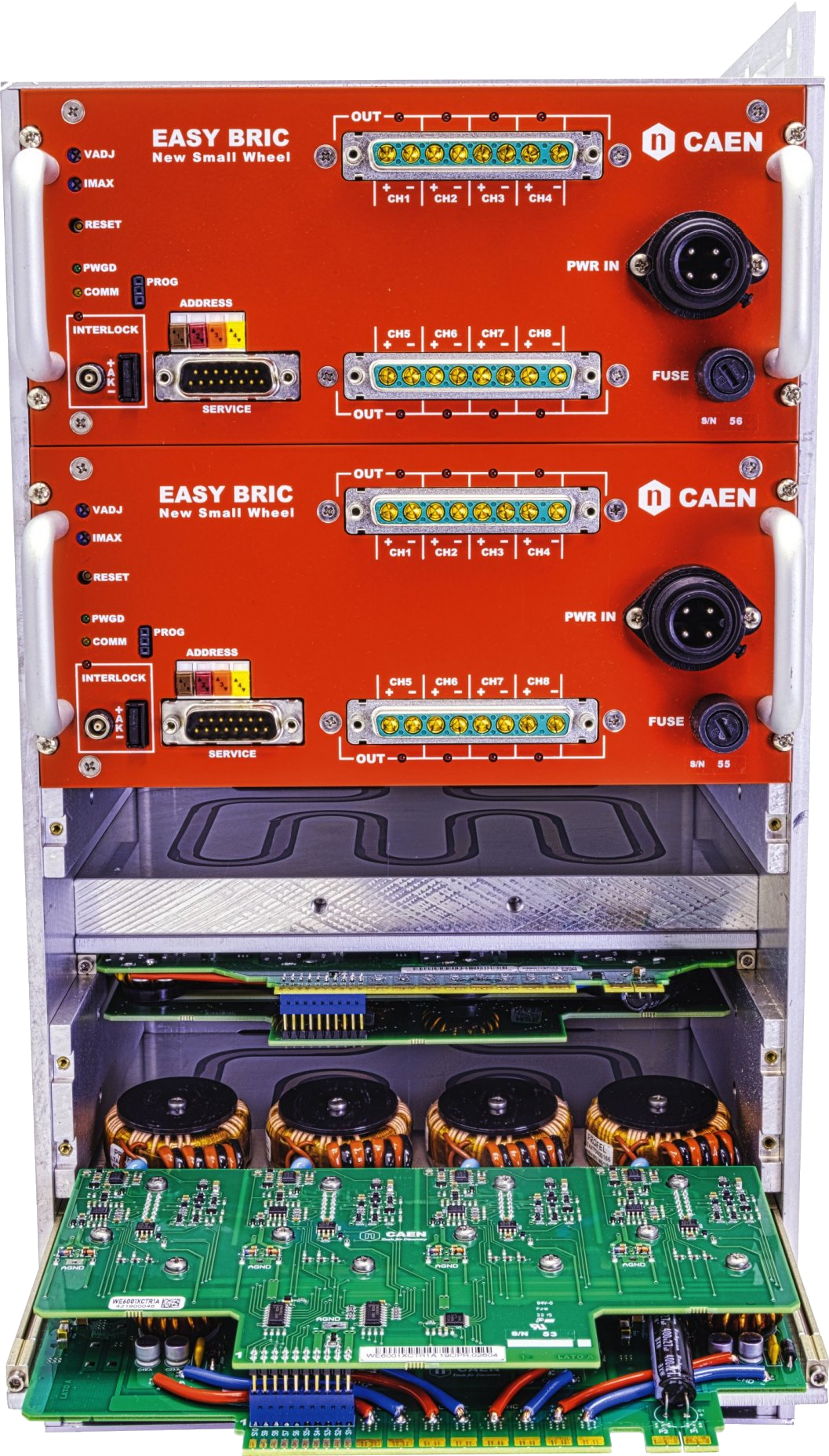

EASY6000 DC/DC Power Supply

Magnetic field and radiation tolerant

• Ionizing Radiation (Total Dose) 200 Gy

• Displacement Damage 5.8·10¹² 1-MeV Eq. n/cm²

• Single Event Fluence 1.0·10¹² p/cm² (E > 20 MeV)

• Magnetic Field 0.5 T

8 positive 10 ÷ 12 V / 16 A channels

300 V DC Input Voltage

Vset by trimmer

On/Off for each channel

Channels individually monitored and protected

Interlock capability

48 V Service local and remote on/off

Individual floating return

Liquid Cooling
