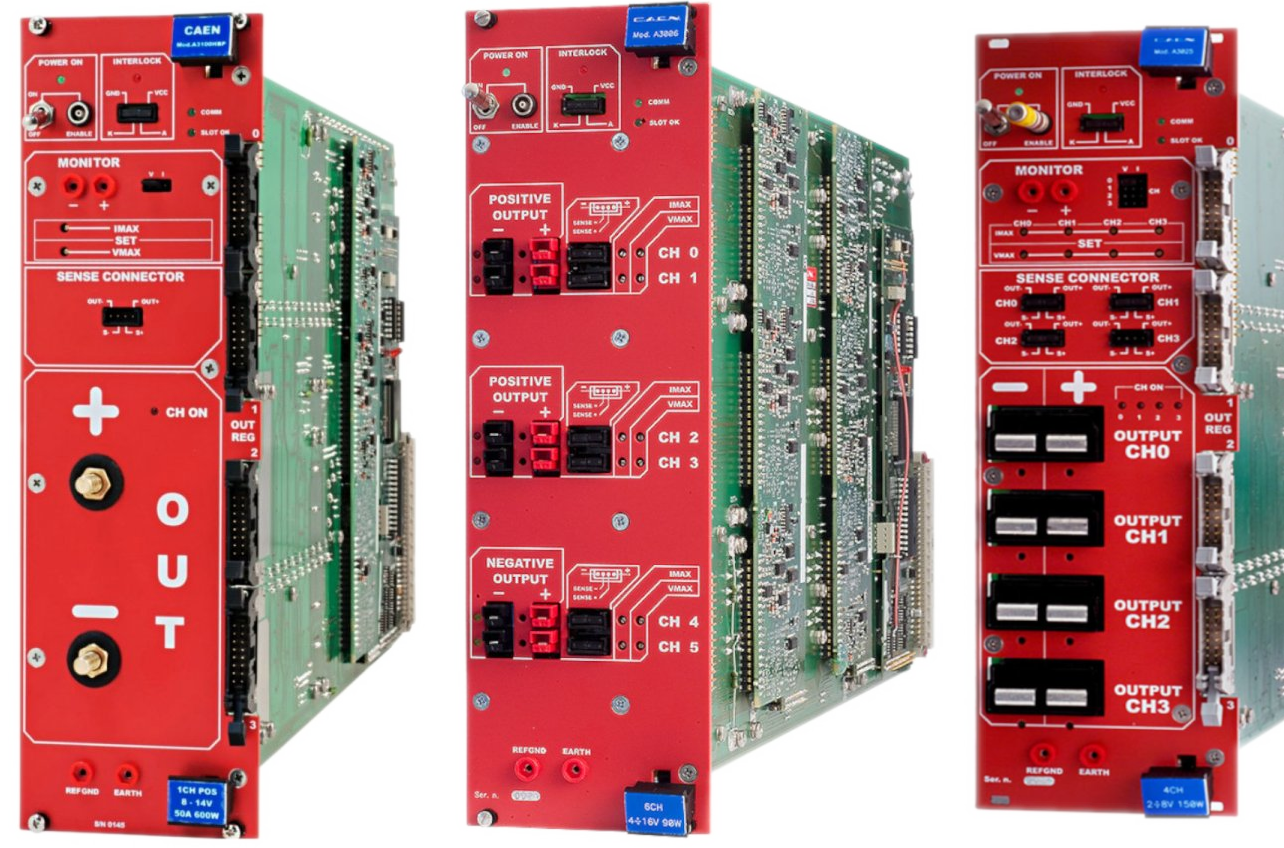

EASY3000 LV BOARDS

EASY (Embedded Assembly SYstem)

EASY3000 LV BOARDS

EASY3000 LV BOARDS Models

A3006

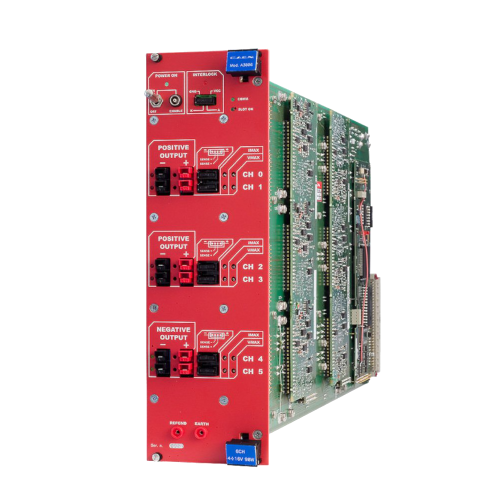

A3006

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 4 positive and 2 negative 4 ÷ 16 V / 6 A channels

  • 90 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Voltage Drop compensation via sense wires

  • Interlock capability

  • 48 V Service local and remote on/off

  • Common floating return
A3009

A3009

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 12 floating 1.5 ÷ 8 V / 9 A channels

  • 45 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Voltage Drop compensation via sense wires

  • Interlock capability

  • 48 V Service local and remote on/off
A3009B

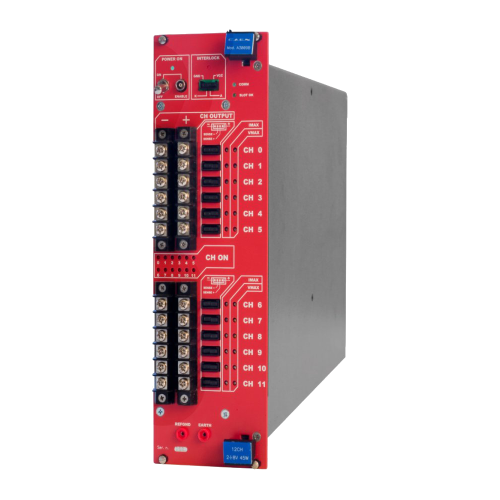

A3009B

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 12 floating 1.5 ÷ 8 V / 9 A channels

  • 45 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Voltage Drop compensation via sense wires

  • Interlock capability

  • 48 V Service local and remote on/off

  • Screw Lock output connectors
A3009H
New

A3009H

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 12 floating 4 ÷ 14 V / 5 A channels (positive polarity)

  • APP30 connectors

  • 45 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Voltage Drop compensation via sense wires

  • Interlock capability

  • 48 V Service local and remote on/off

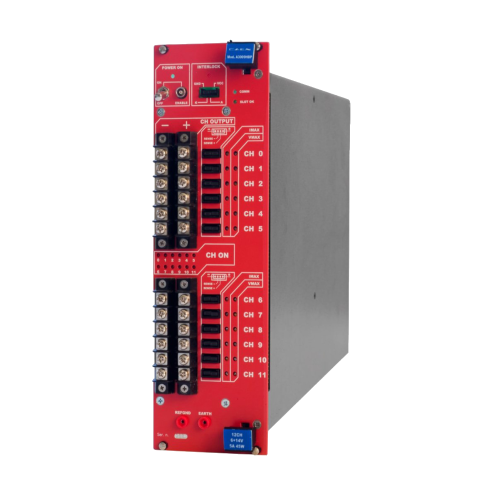

A3009HB
New

A3009HB

  • EASY Subsystem Power Supply Module
  • Magnetic field and radiation tolerant
  • 12 floating 4 ÷ 14 V / 5 A channels (positive polarity)
  • Screw lock connectors
  • 45 W maximum output power per channel
  • VMax and IMax set by trimmer for each channel
  • On/Off for each channel
  • Channels individually controlled and protected
  • Voltage Drop compensation via sense wires
  • Interlock capability
  • 48 V Service local and remote on/off

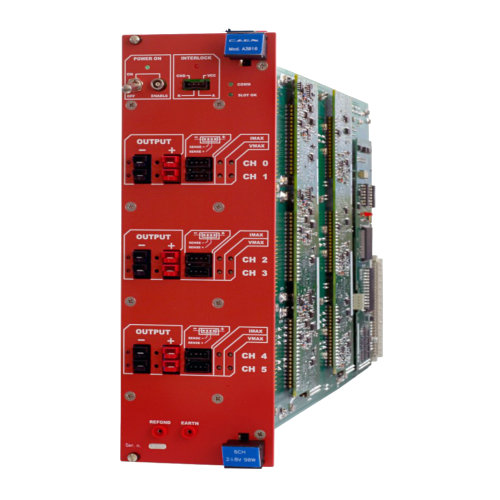

A3016

A3016

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 6 floating 1.5 ÷ 8 V / 16 A channels

  • 90 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Interlock capability

  • 48 V Service local and remote on/off
A3016B

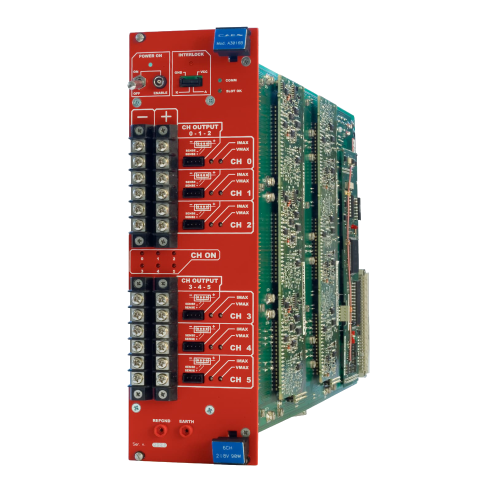

A3016B

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 6 floating 1.5 ÷ 8 V / 16 A channels

  • 90 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Interlock capability

  • 48 V Service local and remote on/off

  • Screw Lock output connectors

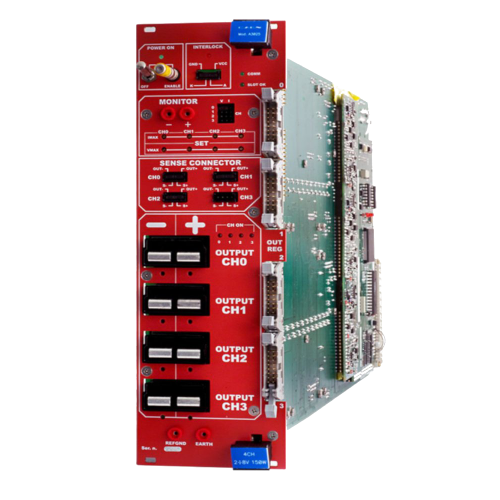

A3025

A3025

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 4 floating 2 ÷ 8 V / 25 A channels

  • 150 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off
A3025B

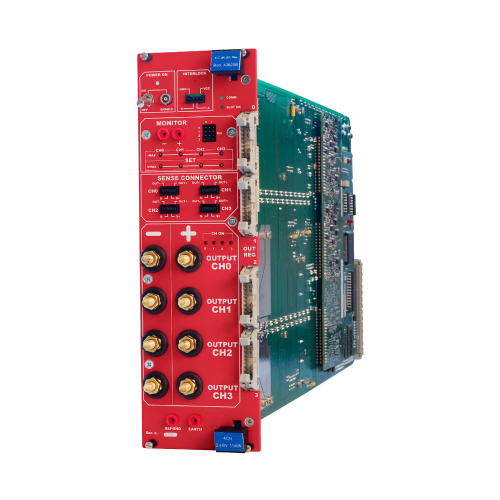

A3025B

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 4 floating 2 ÷ 8 V / 25 A channels

  • 150 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off

  • Screw Lock output connectors
A3050

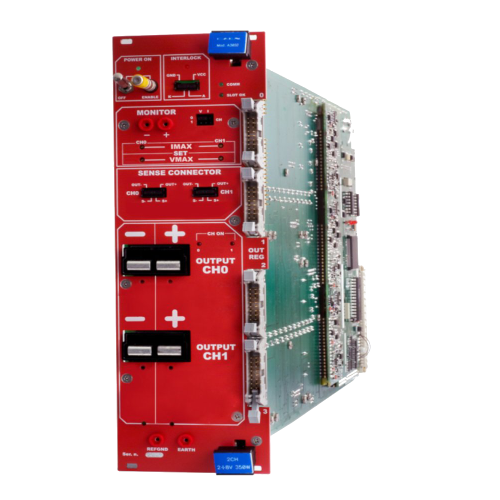

A3050

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 2 floating 2 ÷ 8 V / 50 A channels

  • 300 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off

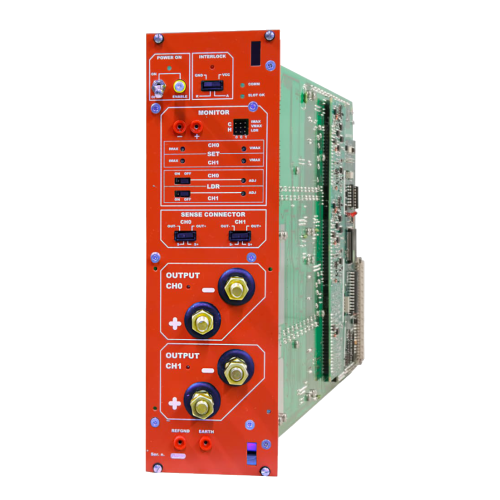

A3050B

A3050B

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • 2 floating 2 ÷ 8 V / 50 A channels

  • 300 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off

  • Screw Lock output connectors

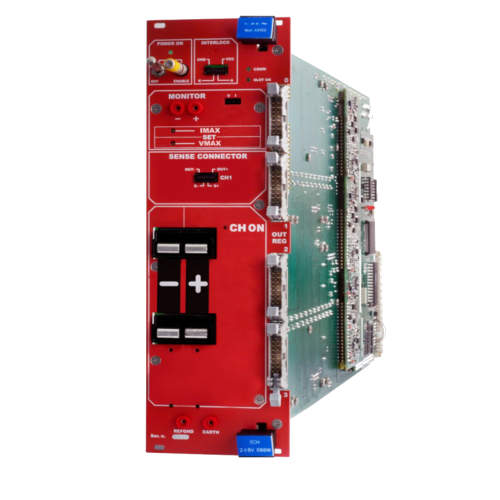

A3100

A3100

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • One floating 2 ÷ 8 V /100 A channel

  • 600 W maximum output power

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off
A3100B

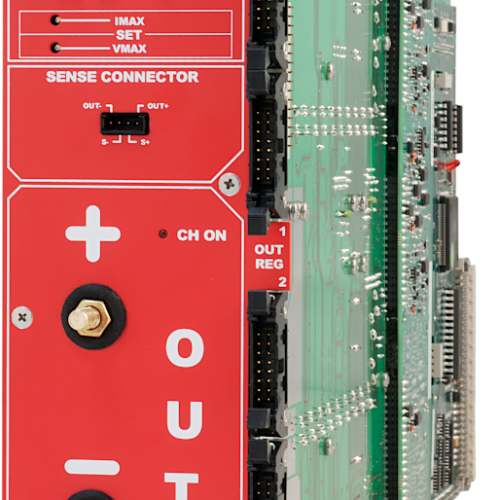

A3100B

  • EASY Subsystem Power Supply Module
  • Magnetic field and radiation tolerant
  • One floating 2 ÷ 8 V /100 A channel
  • 600 W maximum output power
  • VMax and IMax set by trimmer for each channel
  • On/Off for each channel
  • Channels individually controlled and protected
  • Line Drop Regulation on board panel
  • Interlock capability
  • 48 V Service local and remote on/off
  • Screw Lock output connectors
A3100HBP
New

A3100HBP

  • EASY Subsystem Power Supply Module

  • Magnetic field and radiation tolerant

  • One floating 8 ÷ 14 V / 50 A channel

  • 600 W maximum output power

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Line Drop Regulation on board panel

  • Interlock capability

  • 48 V Service local and remote on/off

  • Screw Lock output connectors
A3602

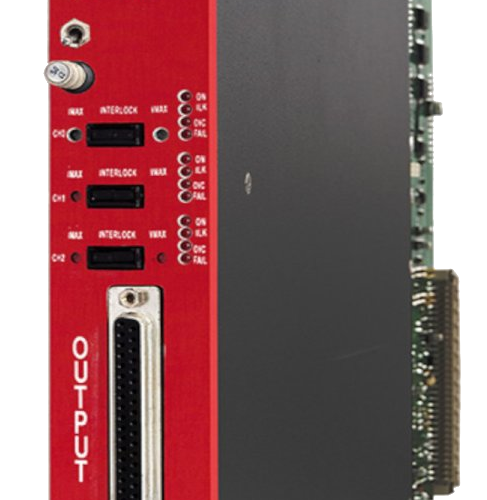

A3602

  • EASY3000 Power Supply Module

  • Magnetic field and radiation tolerant

  • 3 floating (up to 100 V with respect to ground) 2 ÷ 7 V / 5 A channels

  • 35 W maximum output power per channel

  • VMax and IMax set by trimmer for each channel

  • On/Off for each channel

  • Channels individually controlled and protected

  • Sensing Lines for voltage drop compensation

  • Interlock capability (per channel)

  • 48 V Service local and remote on/off
