EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
12 100 V / 1 mA channels
-
Available with positive and negative floating channels

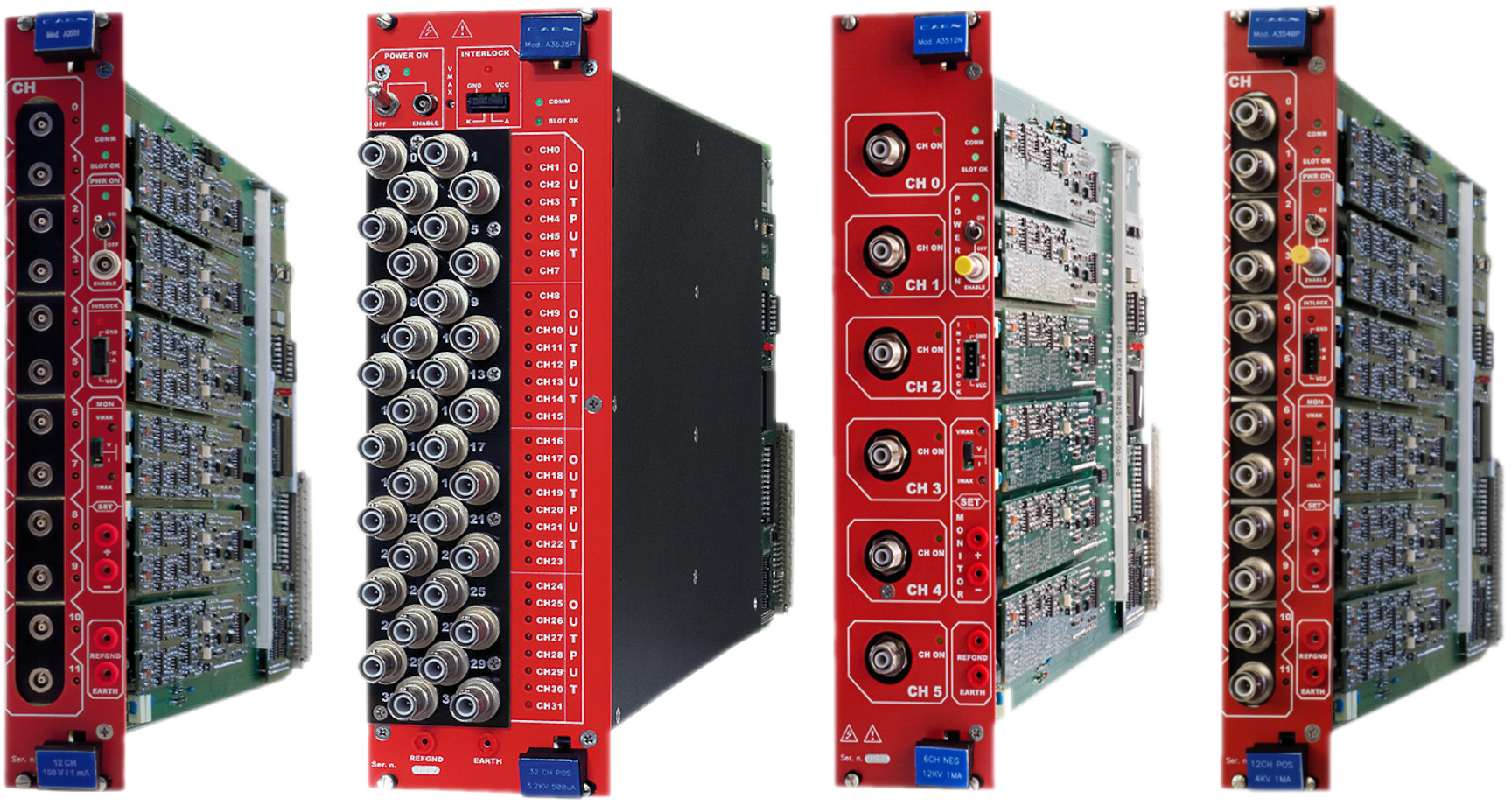

EASY3000 HV BOARDS
EASY (Embedded Assembly SYstem)
EASY3000 HV BOARDS
EASY3000 HV BOARDS Models
A3501
A3512
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
Six 12 kV / 1 mA channels
-
Channel floating up to 5 V between each other
-
VMax and IMax set by trimmer
-
Channel protections: overvoltage, overcurrent, overtemperature
-
On/Off for each channel
-
Interlock capability
-
Local and remote 48V Service on/off

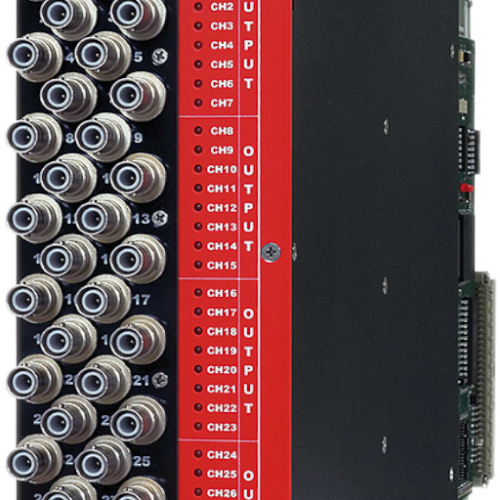

A3535
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
32 3.2 kV / 0.5 mA channels
-
Common Floating Return
-
VMax and IMax set by trimmer
-
Channel protections: overvoltage, overcurrent, overtemperature
-
On/Off for each channel
-
Interlock capability
-
Local and remote 48V Service on/off

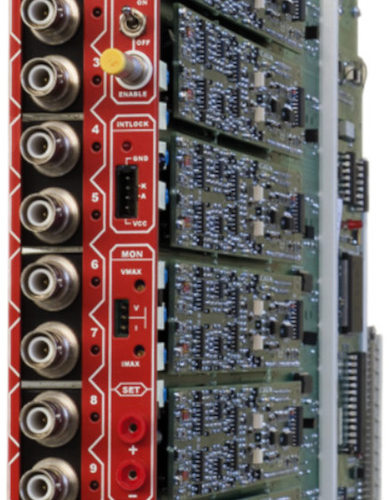

A3540
-
EASY Subsystem Power Supply Module
-
Magnetic field and radiation tolerant
-
12 4 kV / 1 mA channels
-
Channel floating up to 5 V between each other
-
VMax and IMax set by trimmer
-
Channel protections: overvoltage, overcurrent, overtemperature
-
On/Off for each channel
-
Interlock capability
-
48 V Service local and remote on/off
