4 Channel 6 kV/300 µA Desktop HV Power Supply Module (USB/Ethernet)
DT5521E

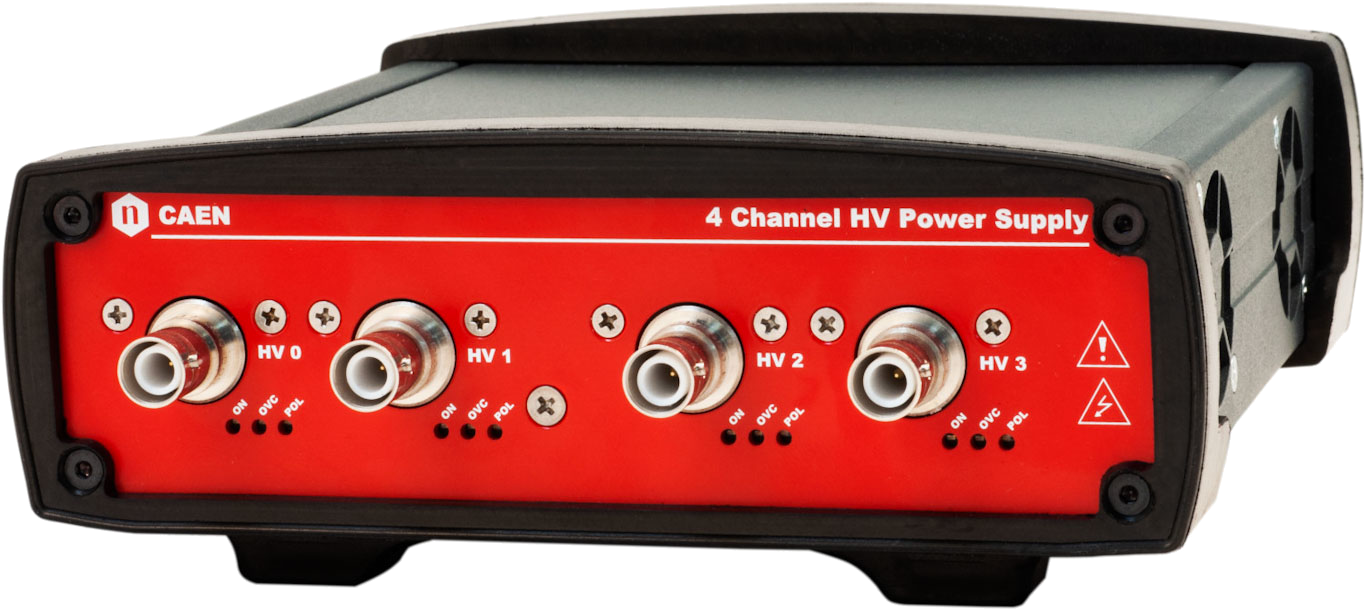

The CAEN Mod. DT5521E is a compact desktop module housing 4 independent High Voltage Power Supply Channels 6kV, 300 µA. The unit is available with either positive or negative output polarity; mixed version with 2 positive and 2 negative channels is also available. HV outputs are delivered through SHV connectors.
|
SHV connector Radiall R317580 HV coaxial connector for Mod. DT5521E |
Consult our connectors reference page for technical information.
The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 500 V/s range with 1 V/s steps. The module features 1 nA Imon resolution. Features include current monitor resolution extended by 10x in a Lower range (selectable via software). Functional parameters can be programmed and monitored via USB 2.0 or Ethernet. A complete set of software tools is available to control these units, from low level libraries to graphical application software.
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value (±0.5% of the set value, ±3 V). |
|
Overcurrent detection |
when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched of. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
Programmable hardware VMAX, IMAX protection limit. |
|
Safety Board Interlock |
common Interlock logic for channels enable/disable and individual inputs signal for channel Kill function. |
Features
-
4 independent channels in a compact desktop case
-
6 kV / 300 µA output range
-
Available with positive, negative or mixed polarity
-
SHV coaxial output connectors
-
Low Ripple
-
1 nA Current monitor resolution (with x10 Imon-Zoom: 100 pA)
-
Remote control (USB 2.0 and Ethernet)
-
Software Tools for easy channel management
