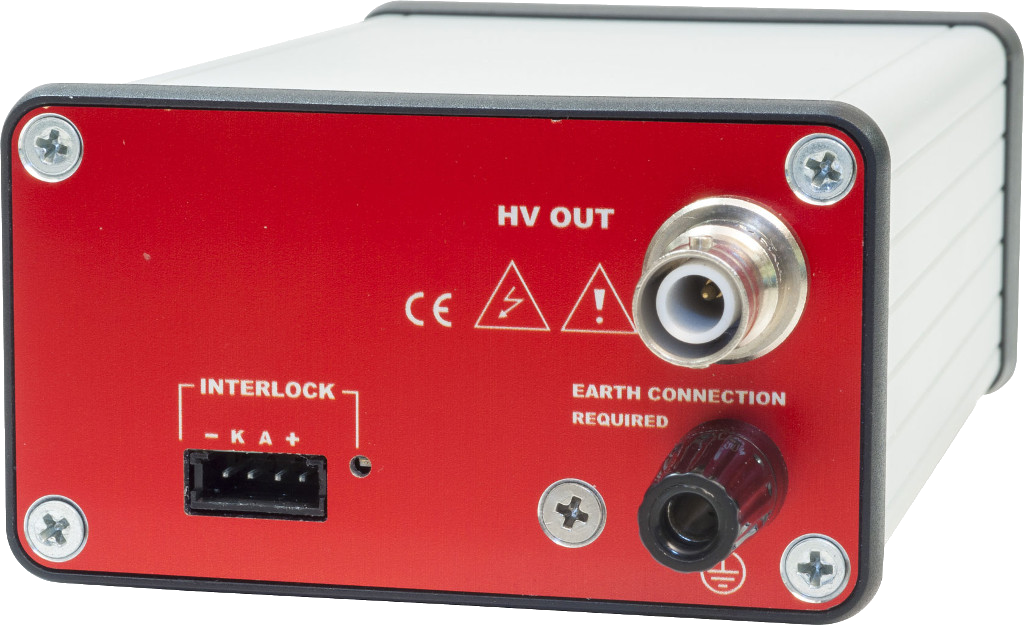

1 Ch 500 V/1 mA USB-Powered Desktop HV Power Supply
DT5472
The CAEN Mod. DT5472 is a desktop module housing one High Voltage Power Supply Channels 500 V / 1 mA. The unit is available with either positive or negative output polarity; it is supplied via USB link. HV output is delivered through SHV connector. The HV output RAMP-UP and RAMP-DOWN rates may be selected independently for each channel in the 1 ÷ 100 V/s range with 1 V/s steps. The module features 200 nA Iset/Imon resolution. Zoom (x 10) for Imon increases resolution to 20 nA.
|
SHV connector Radiall R317580 HV coaxial connector for Mod.DT5472 |
Consult our connectors reference page for technical information.
Functional parameters can be programmed and monitored via USB.
Safety features allows the module to perform as a current generator and includes:
|
Channel |
can be enabled or disabled through the front panel manual switch or via Interlock logic. |
|
Overvoltage and Undervoltage warning |
warning when the output voltage differs from the programmed value. |
|
Overcurrent detection |
when a channel attempts to exceed the programmed current limit, it signaled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
maximum output voltage can be set via front panel potentiometer. VMAX value can be read out via software. |
Software available (Windows):
-
DT547x Control software: LabVIEW Control software with Logging Capability. DT547x Control software allows to set and monitor, through a Graphical User Interface, all the unit’s functional parameters. When DT547x Control Software runs, it creates a data-log file that records the changes of the monitoring parameters.
Features
-
Single Desktop HV channel powered and controlled by USB
-
500 V / 1 mA output range
-
Available with positive or negative polarity
-
SHV output connector
-
Low Ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for board enable and Individual channel kill
-
20 nA Current monitor resolution (with x10 Imon Zoom: 2 nA)
-
Software Tools for easy channel management
