Discriminators

Analog

Discriminators

Discriminators Models

C808
Obsolete

C808

  • ECL outputs with fan-out of two
  • Threshold programmable individually for each channel
  • Programmable output width
  • Programmable dead time
  • TEST and VETO inputs
  • OR, CURRENT SUM and MAJORITY outputs
C894
Obsolete

C894

  • ECL outputs with fan-out of two
  • Selectable Updating/ Non Updating mode
  • Threshold programmable individually for each channel
  • Programmable output width
  • TEST and VETO inputs
  • OR, CURRENT SUM and MAJORITY outputs

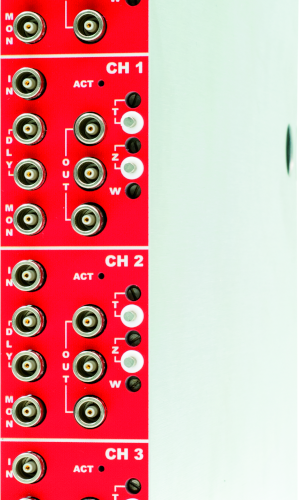

N605

N605

  • Four independent Constant Fraction Discriminators for fast detectors with sub-ns rise time

  • Independently adjustable discriminators parameters (T, W, Z)

  • Double pulse resolving time down to 4 ns

  • Fine threshold adjustment from -15 to -1000 mV

  • Fine walk correction with zero-crossing adjustment

  • Exceptional low walk jitter < 50 ps

  • Adjustable output signal width

  • CFD monitor output

  • Common veto input and individual gates for coincidence or anticoincidence options
N840

N840

  • Individually programmable thresholds

  • Selectable Updating/Non Updating mode

  • Programmable output width

  • TEST and VETO inputs

  • OR and Current sum outputs

  • 4 digit led display

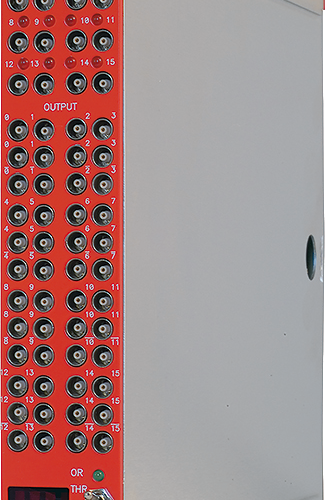

N841

N841

  • High channel density

  • Individually programmable thresholds

  • Selectable Updating/Non Updating mode

  • Programmable Output width

  • TEST and VETO inputs

  • OR and Current Sum outputs

  • 4 digit led display
N842

N842

  • Individually programmable thresholds

  • Programmable output width

  • Programmable dead time

  • TEST and VETO inputs

  • OR and Current sum outputs

  • 4 digit Led display
N843

N843

  • High channel density

  • Individually programmable thresholds

  • Programmable output width

  • Programmable dead time

  • TEST and VETO inputs

  • OR and Current sum outputs

  • 4 digit Led display
N844

N844

  • Individually programmable thresholds

  • Programmable output width

  • TEST and VETO inputs

  • OR and Current Sum outputs

  • High sensitivity on small signals

  • 4-digit Led display

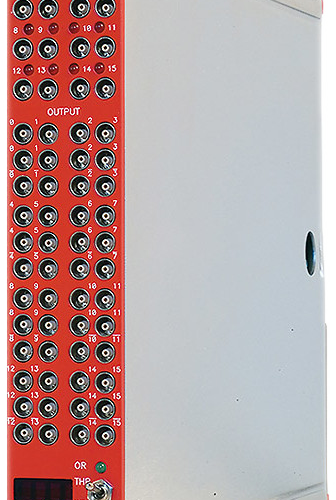

N845

N845

  • Individually programmable thresholds

  • Programmable output width

  • TEST and VETO inputs

  • OR and Current Sum outputs

  • High sensitivity on small signals

  • 4-digit Led display

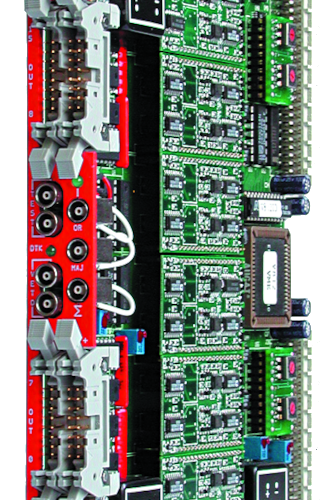

V812

V812

  • Thresholds individually programmable via VME

  • Constant fraction for precise discrimination timing

  • ECL outputs with fan-out of two

  • Programmable output width

  • Global VETO and TEST inputs

  • Mask register for individual channel enable/disable

  • OR, CURRENT SUM and MAJORITY outputs

  • Libraries (C and LabView) and Software tools for Windows and Linux

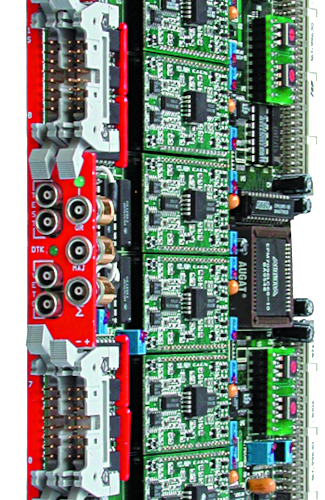

V814

V814

  • Thresholds individually programmable via VME

  • ECL outputs with fan-out of two

  • Non updating operation

  • Programmable output width

  • Mask register for individual channel enable/disable

  • Global VETO and TEST inputs

  • OR, CURRENT SUM and MAJORITY outputs

  • High sensitivity with small signals

  • Negative or Positive input version available

  • Libraries (C and LabView) and Software tools for Windows and Linux

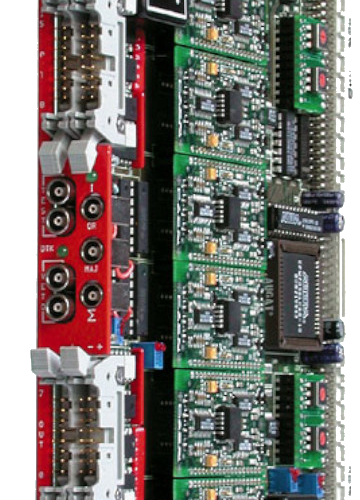

V895

V895

  • Thresholds individually programmable via VME

  • ECL outputs with fan-out of two

  • Selectable Updating/Non Updating mode

  • Programmable output width

  • Global VETO and TEST inputs

  • Mask register for individual channel enable/disable

  • OR, CURRENT SUM and MAJORITY outputs

  • Libraries (C and LabView) and Software tools for Windows and Linux
