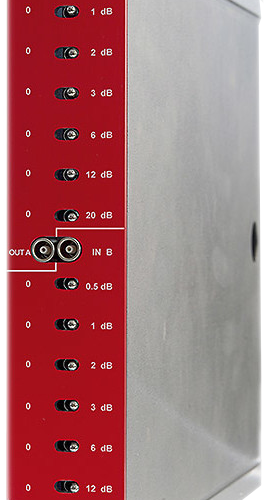

Packaging 1U-wide NIM unit

Number of sections: 2

Attenuation adjustable from 0 to 44.5 dB

Resolution 0.5 dB

Input impedance: 50 Ω

I/O delay < 5 ns

Accuracy: 1%

Input bandwidth max 300 MHz

Max dissipated power (per section): 100 mW

Insertion loss: 0.1 dB

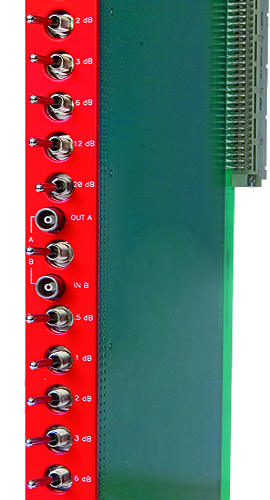

Packaging 1U-wide VME unit

Number of sections 1 or 2 (toggle switch selectable)

Attenuation: dual 0÷44.5 dB; single 0÷89 dB

Resolution: 0.5 dB

Input impedance: 50 Ω

I/O delay: < 5 ns

Accuracy: 1%

Max frequency > 300 MHz

Max dissipated power (per section): 100 mW

Insertion loss: 0.1 dB
