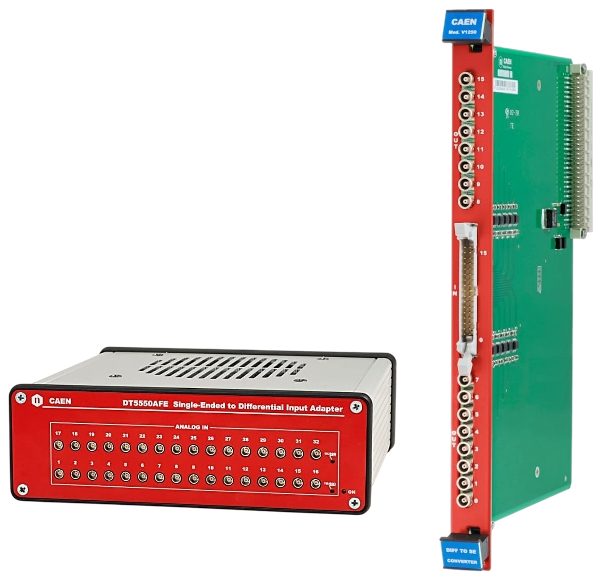

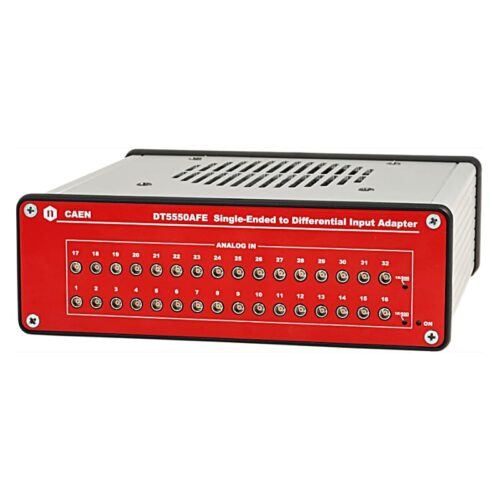

• Single-Ended to Differential signals compact converter

• 32 analog input channels on MCX connectors

• Positive or negative input signals

• Input Dynamic: 2 Vpp

• Programmable DC offset

• Differential Output on a single 68-pin VHDCI connector, carrying converted signals and control lines

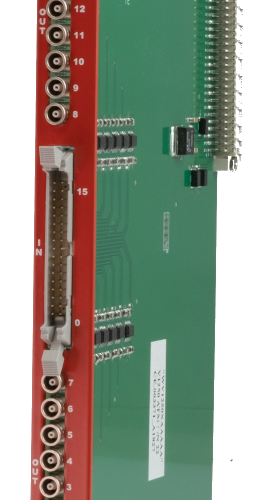

• 1 unit VME 6U

• 16 differential inputs on 34-pin (2.54mm) header connector

• 16 single-ended outputs on LEMO connectors

• Fixed Gain: 1*

• ±2 Vpp input range

• ±2 V output range*

• Bandwidth: DC to 30 MHz

• Output noise < 480 uV RMS (with disconnected inputs and outputs terminated to 50 Ω

• Suitable for CAEN A1442 CSP

^{* with no termination: output range = ± 4V, Gain = 2.}
