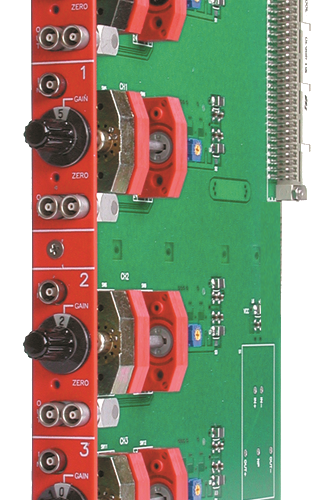

x10 Adjustable Gain (x1 Steps)

Input bandwidth up to 250 Mhz

50 Ohm Input Impedance

±2 V output dynamics

50 Ohm loads driven

Cascadeable Channels

Rise/fall time smaller than 1.5 ns

I/O delay smaller than 3 ns

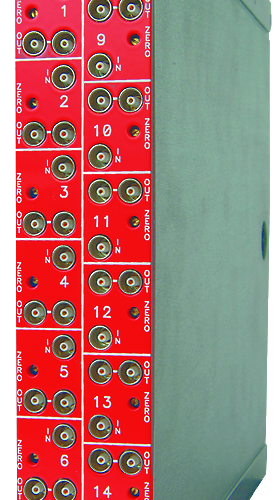

x10 Fixed Gain (Optional in x2 ÷ x9 range)

Input bandwidth up to 250 Mhz

50 Ohm input impedance

±2 V output dynamics

50 Ohm loads driven

Cascadable channels

Rise/fall time smaller than 1.5 ns

I/O delay smaller than 3 ns

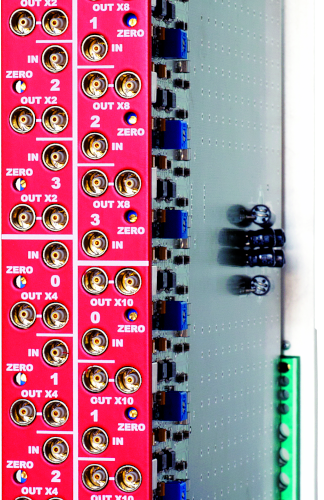

4 x 4 ch. with different Fixed Gain: x2, x4, x8, x10.

Input bandwidth up to 250 Mhz

50 Ohm input impedance

±2 V output dynamics

50 Ohm loads driven

Cascadeable channels

Rise/fall time smaller than 1.5 ns

I/O delay smaller than 3 ns

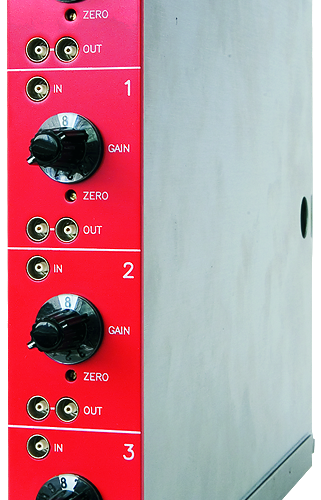

Input bandwidth up to 170 MHz

x10 adjustable gain with x1 steps

50 Ω Input Impedance

±2 V output dynamics

Drives 50 Ω Loads

Cascadable Channels

Rise/fall time <3 ns with a 25 mV unipolar input amplitude

I/O delay <3 ns

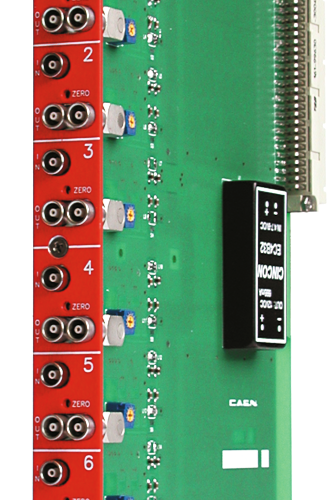

Input bandwidth up to 250 MHz

x10 Fixed Gain

50 Ohm input impedance

±2 V output dynamics

Drives 50 Ohm loads

Cascadeable channels

Rise/fall time <1.5 ns with a 25 mV unipolar input amplitude

I/O delay <3 ns
