6 Channel 12 kV/1 mA Common Ground Board
AG523
The CAEN Mod. AG523 is a double width board (10 TE wide) that houses 6 Independent high voltage channels available with either positive or negative polarity. The channels share a Common Ground.
|
CPE HV coaxial connector Double width (10 TE wide), 6 channel for Mod. AG523 |
Consult our connectors reference page for technical information.
The output voltage can be programmed and monitored in the 0 ÷ 12 kV range with 1 V monitor resolution.
The Maximum current full scale is 100 μA, with 10 nA Iset/Imon monitor resolution.
The board features the CPE HV output connectors and the relevant coaxial cable connectors (Mod. A997) are also available.
Independently programmable for each channel:
|
Output voltage: |
0 ÷ 12 kV |
step: 1 V |
|
Current limit |
0 ÷ 100 μA |
step: 10 nA |
|
V Ramp up/down: |
1 ÷ 500 V/sec |
step: 1 V/sec |
|
TRIP parameter |
0 ÷ 999.9 s; 1000 s = Infinite |
step: 0.1 s |
Safety features allows the module to perform as a current generator and includes:
|
Channels |
can be enabled or disabled through the Global Interlock logic. |
|
Overvoltage and Undervoltage warning |
when the output voltage differs from the programmed value. |
|
Overcurrent detection |
when a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
|
Hardware VMAX |
maximum output voltage can be set, via front panel potentiometer, at the same common value for all the board channels. VMAX value can be read out via software. |
|
Safety Board Interlock |
this protection disables the HV generation when the HV outputs are not connected to their loads. |
Accessories available:
-

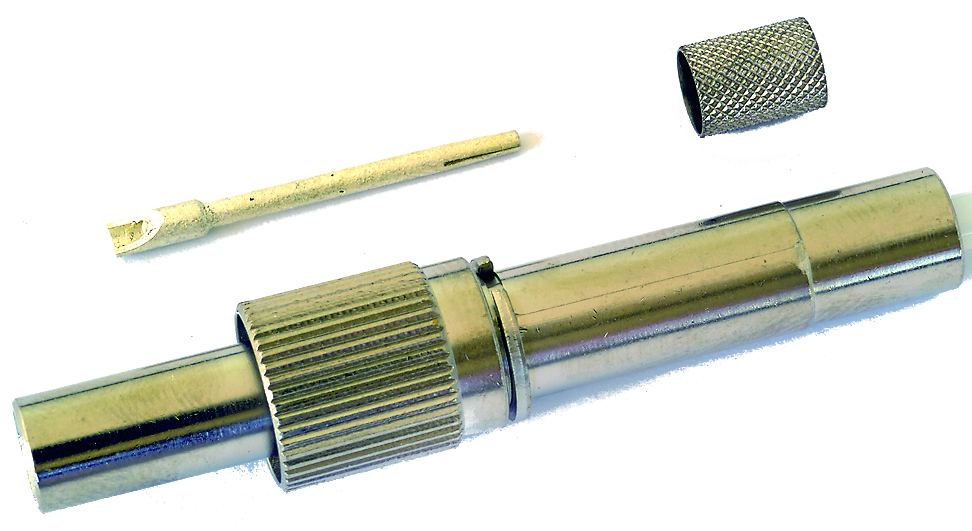

HV coaxial cable connector (Mod. A997)
Features
-
6 independently controllable High Voltage channels
-
Output Voltage: 12000 V
-
Output current: 1 mA
-
Available with Negative / Positive Polarity
-
CPE HV connectors
-
Floating Type: Common Ground
-
Low ripple
-
Under/over-voltage alert, overcurrent and max. voltage protection
-
Interlock logic for unit enable
-
Software Tool for easy channel management
