HV Bidirectional Passive HV Filter
A483

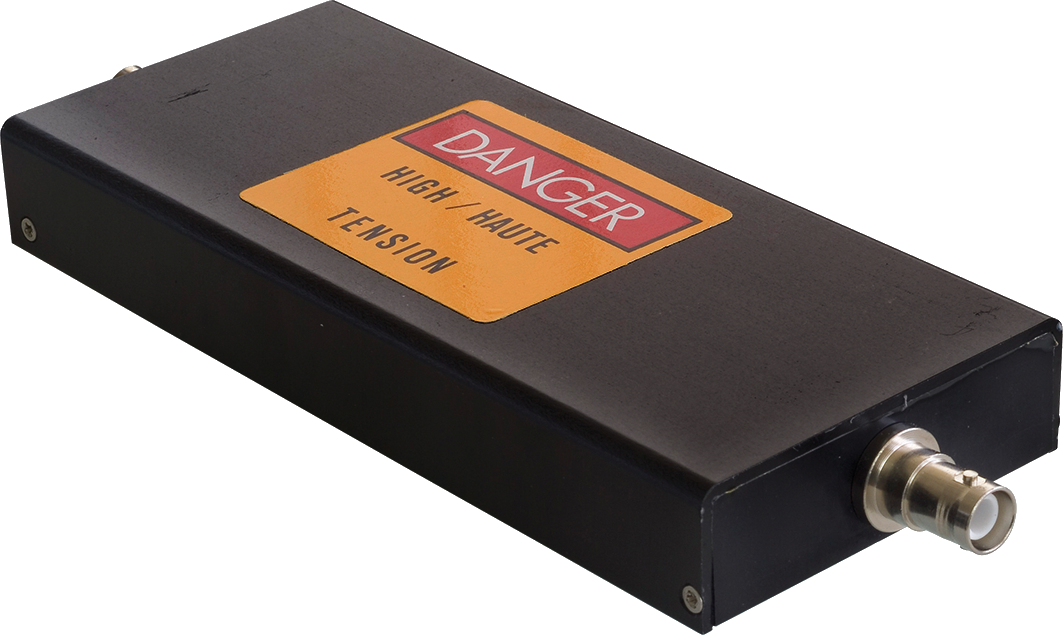

The CAEN Mod. A483 is a bidirectional passive HV filter. The filter has a Maximum Input Voltage of ±8 kV. The Ripple Rejection is 20 dB (26 dB @ 36 KHz), measured with 50 mVpp (40 mVpp @ 36 KHz) input ripple, 8 kV Input DC Voltage and 8 µA Output Current.
It does not require any power supply since it is made up of passive components.
The module is designed to be used together with a HV Power Supply when a low ripple is required (E.G. for Ge-detector applications).
The High Voltage input and output are provided by SHV connectors.
Features
- 8 kV Maximum Input Voltage
- 20 dB Ripple Rejection
- Passive Operation
