A3801

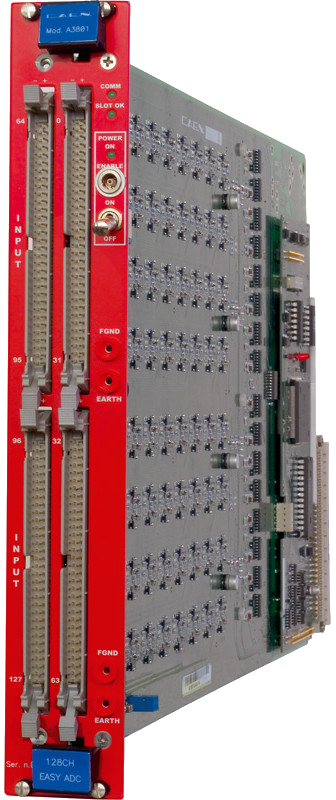

The CAEN Mod. A3801 is a 128 Channel ADC Board implemented in a double width EASY module. The module is developed for operation in magnetic field and radioactive environment and houses 128 input ADC channels on standard flat cable connectors. Once the threshold, which is common to all channels, is set, the module, when receives one over-threshold input, samples 250 values per channel, with a 1 kHz max sampling rate. Input range is 0 ÷ 10 V (differential) and the ADC resolution is 0.2 mV.
