3-phase 220/400 Vac. 48 Vdc (1 ch x 2.5 kW) Converter
A3484

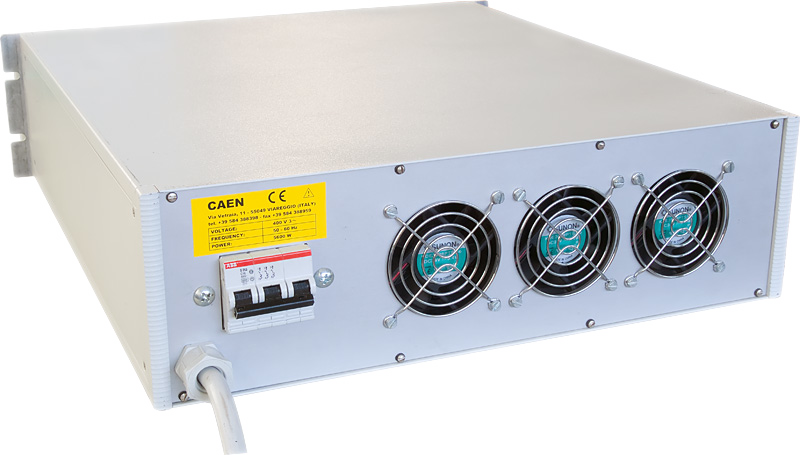

The CAEN Mod. A3484 is a 220/400 Vac – 48 Vdc converter, which allows to integrate into the EASY channels control also the management of the 48 V power supplies. Features include local or remote control (Mod. A3484S only), overload protection and local or remote inhibit function. The module front panel houses LEDs and channels monitor signals.
Features
- 3U 19” Euro Rack, 50 cm deep
- 2.5 kW 48V output
- 48V ± 10% output dynamics (remotely programmable)
- 50 A maximum output current
- Overcurrent protection
- Voltage ripple smaller than 100 mV peak-to-peak
- Local inhibit function
