1 Channel 8 V / 100 A / 600 W Power Supply Board
A3100B

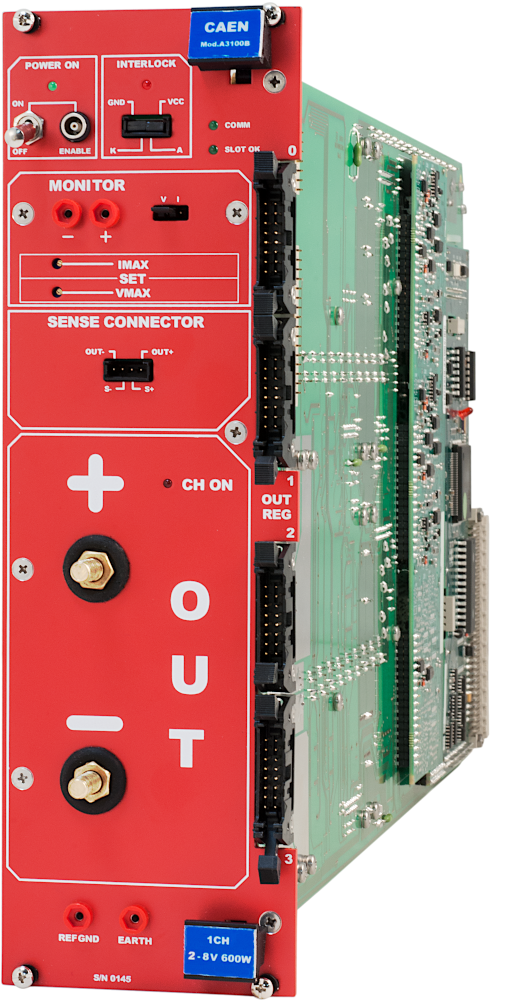

The CAEN Mod. A3100B is a 8 V / 100 A Power Supply Board, developed for operation in magnetic field and moderate radioactive environment. One A3100B houses one floating (reversible polarity) 8 V / 100 A (600 W maximum output power) channel.
The connector output voltage range is 2 ÷ 8 V with 5 mV monitor resolution; channel control includes various alarms and protections.
The board is provided with Remote Sensing Lines to compensate for the voltage drop over the connection cables. If the output voltage differs from the programmed value by more than 3% of voltage full scale range, the channel is signalled to be either in Overvoltage and Undervoltage condition.
Moreover, for each channel, a voltage protection limit SVMAX can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value.
 |
Brass Hexagon head bold connector
Brass hexagon head set screw, M6x30mm connector for A3100B |
Consult our connectors reference page for technical information.
Safety features allows the module to perform as a current generator and includes:
| Channels |
can be enabled or disabled through the Global Interlock logic. |
| Overvoltage and Undervoltage warning | when the output voltage differs from the programmed value by more than 3% of voltage full scale range. |
| Overcurrent detection | When a channel attempts to exceed the programmed current limit, it signalled to be in “overcurrent” and enter in a TRIP status. The output voltage is varied to keep the current below the programmed limit for a programmable TRIP time, then the channel is switched off. If TRIP is set to “constant current mode”, the channel behaves like a current generator. |
| Hardware VMAX and IMAX |
Maximum output voltage and maximum current value can be fixed via software with 5 mV resolution and the output voltage can not be programmed beyond this value. |
Features
- EASY Subsystem Power Supply Module
- Magnetic field and radiation tolerant
- One floating 2 ÷ 8 V /100 A channel
- 600 W maximum output power
- VMax and IMax set by trimmer for each channel
- On/Off for each channel
- Channels individually controlled and protected
- Line Drop Regulation on board panel
- Interlock capability
- 48 V Service local and remote on/off
- Screw Lock output connectors
